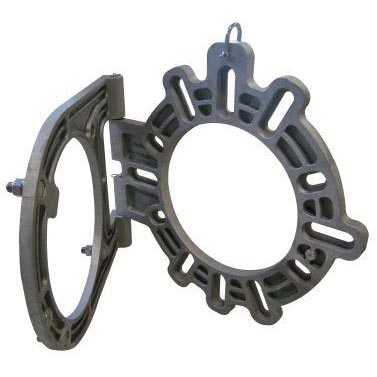

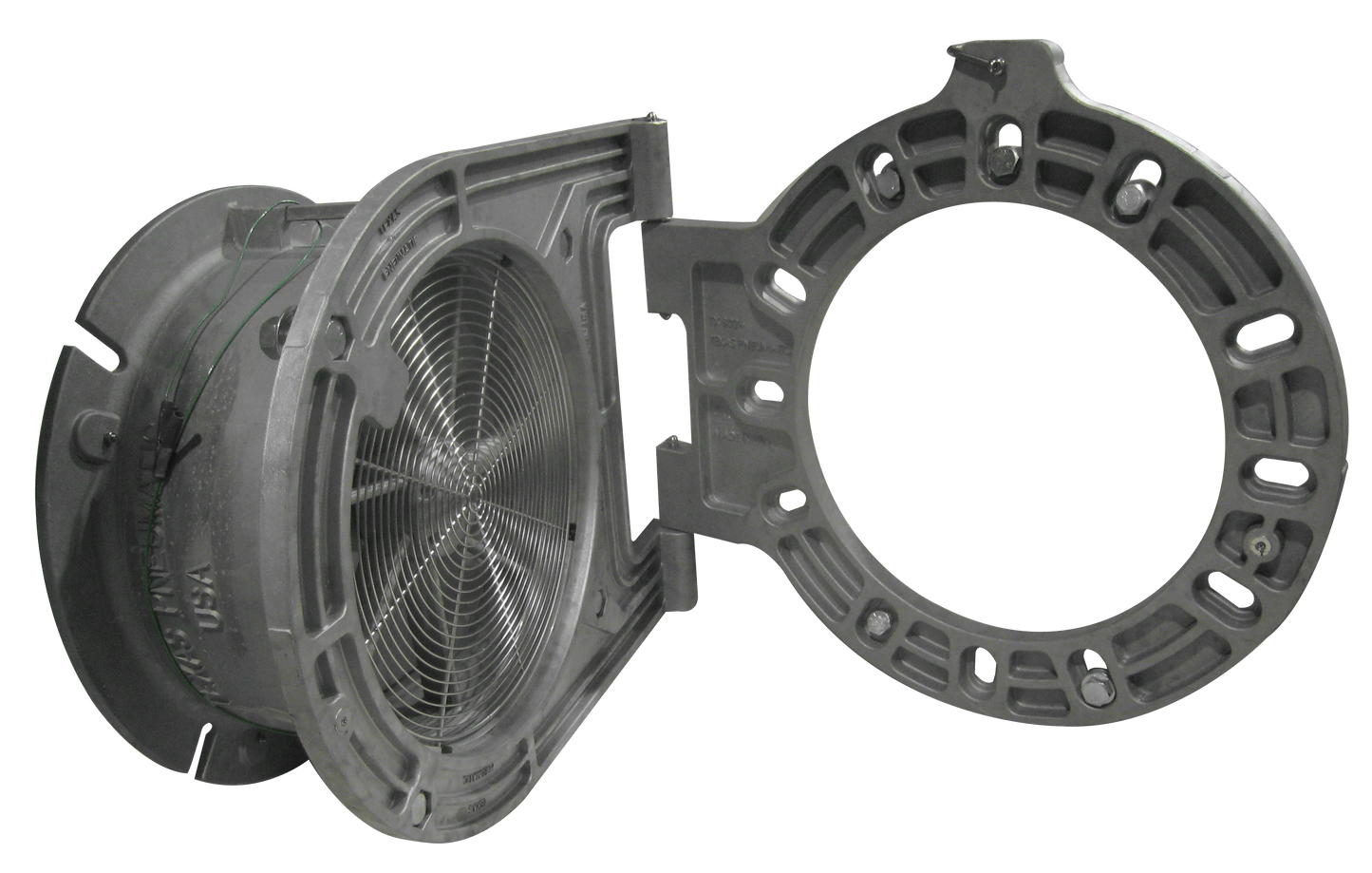

Texas Pneumatic 20" Swing Gate

Enhanced Access and Safety for Confined Space Ventilation

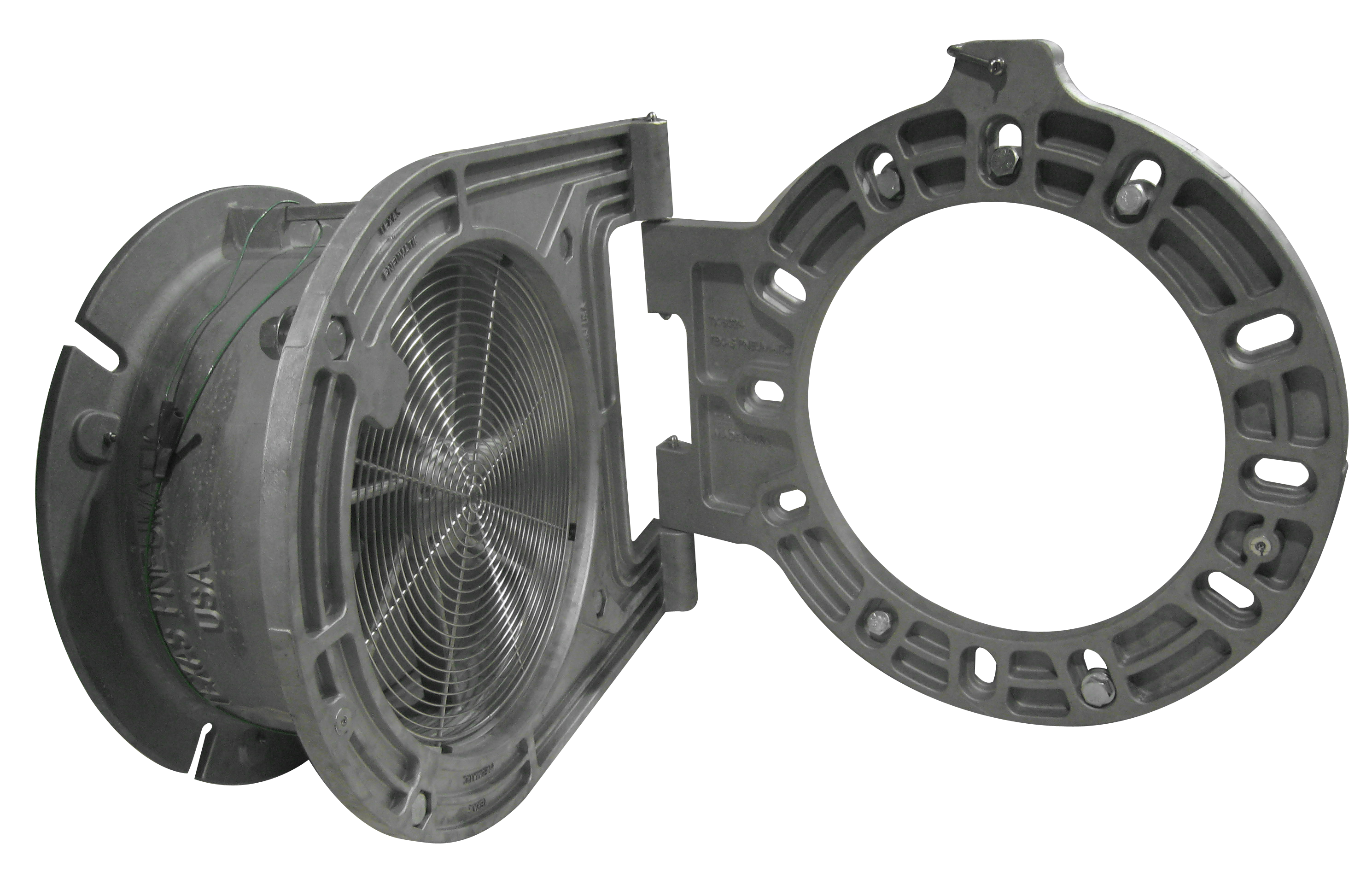

The TPT TX-SG20 20" Swing Gate is an innovative solution designed to enhance safety and functionality in confined space ventilation. By allowing a ventilation point to double as an emergency entry or exit, this swing gate ensures both efficient airflow and quick access in critical situations.

Key Features & Benefits

• Dual-Purpose Functionality:

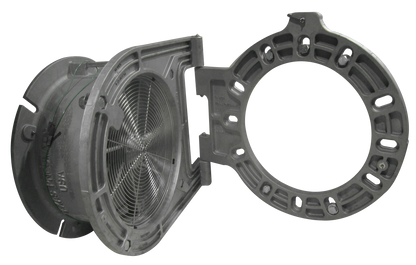

  • Ensures continuous ventilation with the Jet Fan while maintaining access to the confined space.
  • Provides an emergency entry/exit point for workers inside or outside the tank.

• Simple, Intuitive Operation:

  • Workers inside a tank can push the molded hand paddle to swing the fan away for an easy exit.
  • Workers outside can pull the fan flange to swing the fan open for quick entry.

• Reliable Magnet Closure:

  • Flange is secured with a magnet, eliminating the need for locking mechanisms.
  • Outperforms competitors’ hook-and-loop fasteners (Velcro), resisting weathering and maintaining adhesion over time.
  • Requires only a gentle bump or tug to open.

• Durable, High-Quality Construction:

  • Exposed components made from stainless steel and aluminum for corrosion resistance and long-term durability.
  • Heat-treated to T6 aircraft aluminum specifications for superior strength.

• Universal Compatibility:

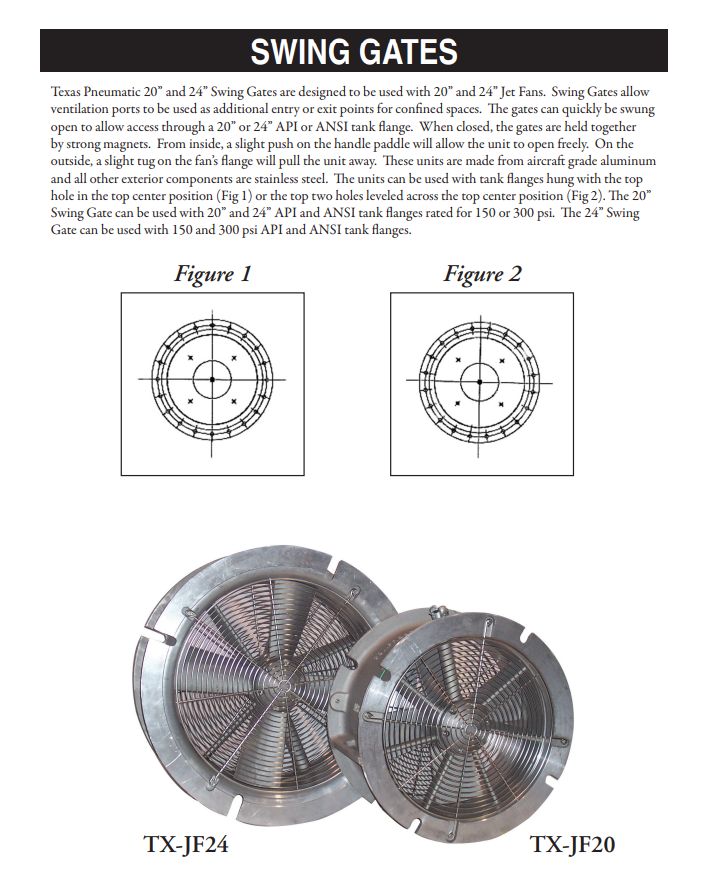

  • Flange is configured for tank flanges with holes starting at the top center position or level across the centerline.
  • Versatile design surpasses competitors, which only fit specific flange configurations.

• Safe and Convenient Installation:

  • Stainless steel shackle included for a secure lifting point.

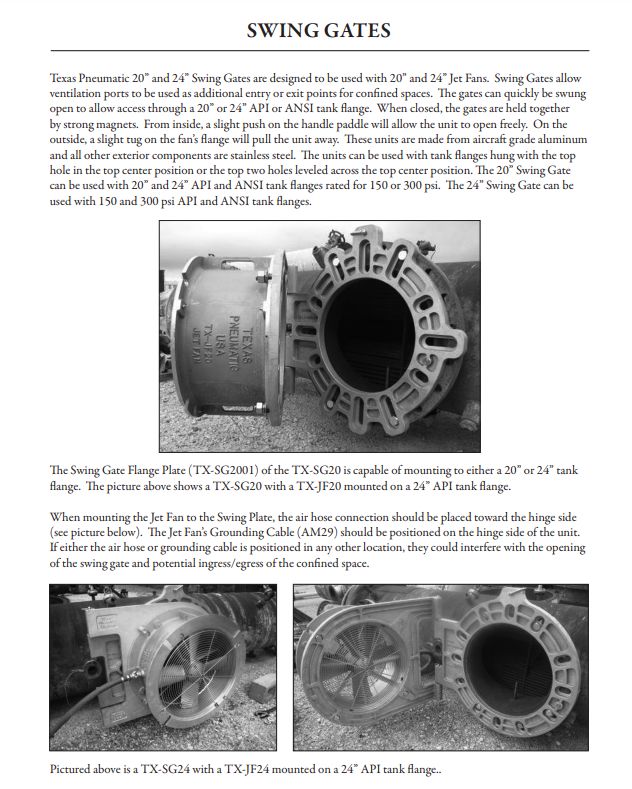

  • Jet Fan’s grounding wire and air inlet placement ensure uninhibited gate operation.

• Complete Installation Kit Included:

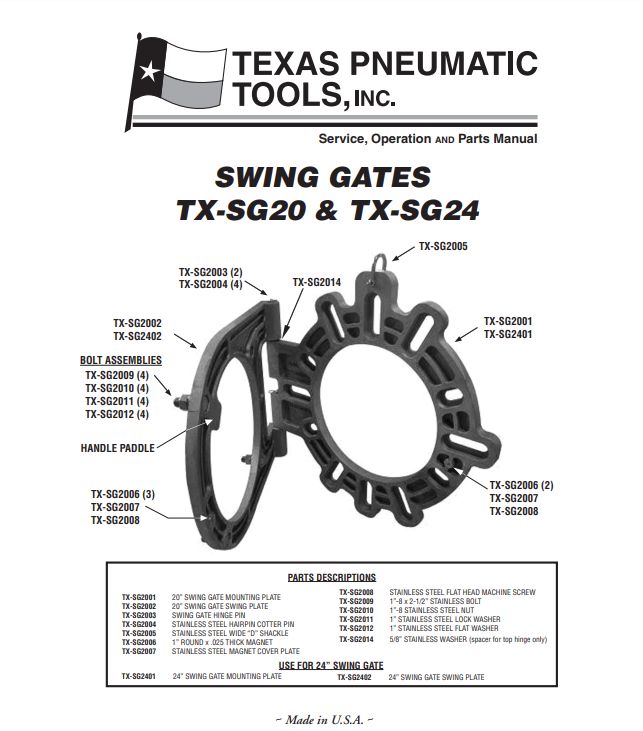

  • Ships with stainless steel 1″ bolts, flat washers, lock washers, and nuts for easy attachment of a Jet Fan to the Swing Plate.

Applications:

• Ideal for tanks, confined spaces, and process vessels requiring both ventilation and safe access.
• Enhances emergency preparedness and safety compliance in industrial settings.

The TPT TX-SG20 20" Swing Gate combines cutting-edge design, premium materials, and unparalleled functionality to provide a reliable and efficient solution for confined space ventilation and safety.

Upgrade your Jet Fan system with the TPT TX-SG20 Swing Gate for enhanced safety and versatility!
