Texas Pneumatic TX-SG20 20-Inch Swing Gate

Browse the authoritative Texas Pneumatic TX-SG20 parts schematic, select verified replacement parts, or use reference 0000 to purchase a complete replacement tool.
Buy a New Replacement TX-SG20

TX-SG20 Parts Schematic

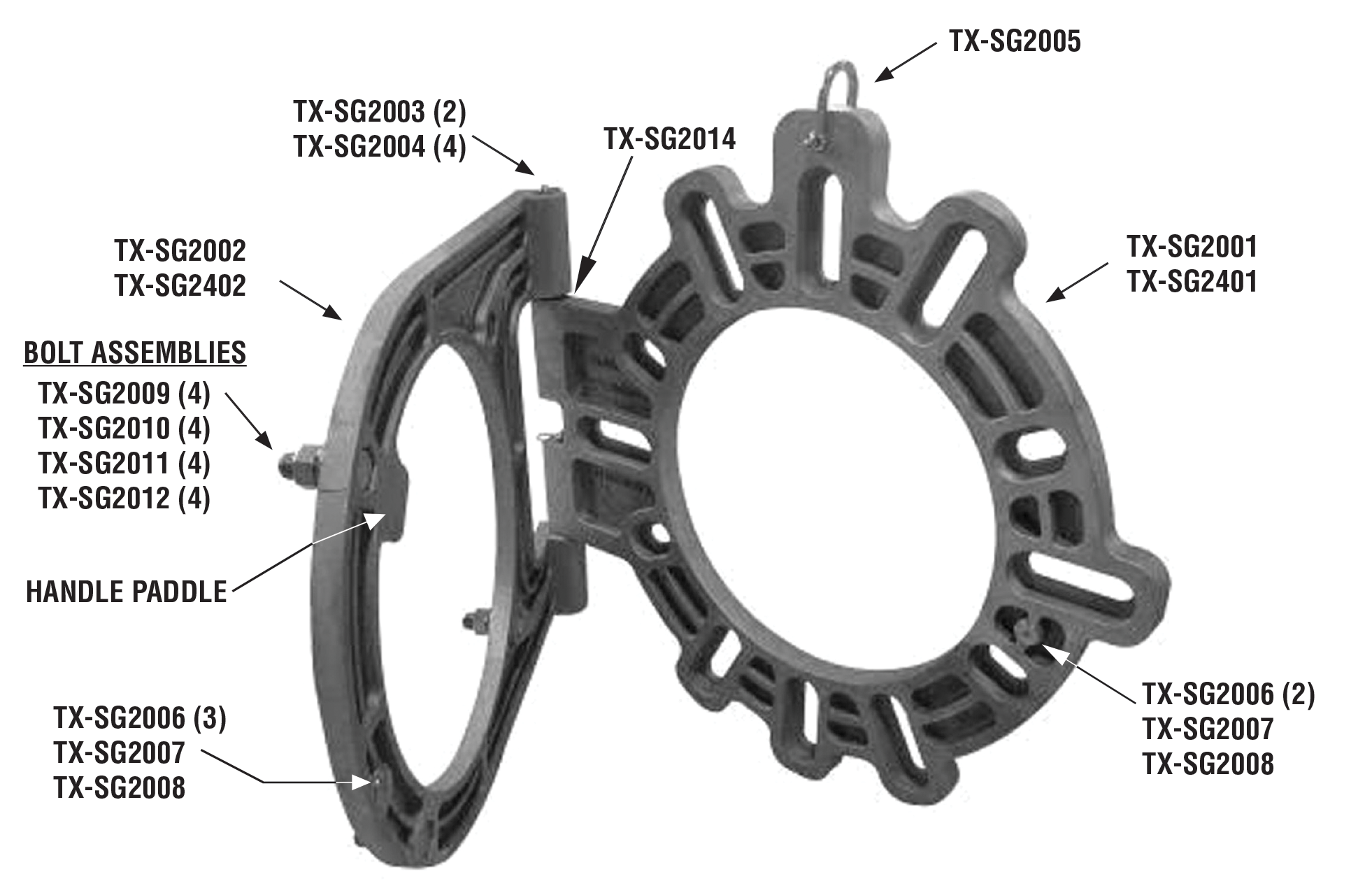

Authoritative Texas Pneumatic TX-SG20/TX-SG24 exploded schematic. Only TX-SG20-applicable callouts are modeled. LSAT synthetic reference 0000 is added separately and is not part of the manufacturer drawing.
TX-SG20 Parts Schematic
Ref. Part OEM part number Qty. Availability
TX-SG2001 20" Swing Gate Mounting Plate TX-SG2001 View product
TX-SG2002 Machined 20" Swing Gate Swing Plate TX-SG2002 View product
TX-SG2003 Swing Gate Hinge Pin TX-SG2003 View product
TX-SG2004 Stainless Steel Hair Pin Cotter Pin TX-SG2004 View product
TX-SG2005 Stainless Steel Wide “D” Shackle (1/2") TX-SG2005 View product
TX-SG2006 1" Round X .025 Thick Magnet W/ .025 Id Hole TX-SG2006 View product
TX-SG2007 Stainless Steel Magnet Cover Plate TX-SG2007 View product
TX-SG2008 Stainless Steel Flat Head Machine Screw TX-SG2008 View product
TX-SG2009 1" -8 X 2-1/2" Stainless Steel Hex Bolt TX-SG2009 View product
TX-SG2010 1" -8 Stainless Steel Hex Nut TX-SG2010 View product
TX-SG2011 1" Stainless Steel Lock Washer TX-SG2011 View product
TX-SG2012 1" Stainless Steel Flat Washer TX-SG2012 View product
TX-SG2014 5/8" Stainless Steel Flat Washer TX-SG2014 View product
0000 Buy a New Replacement TX-SG20 View product
