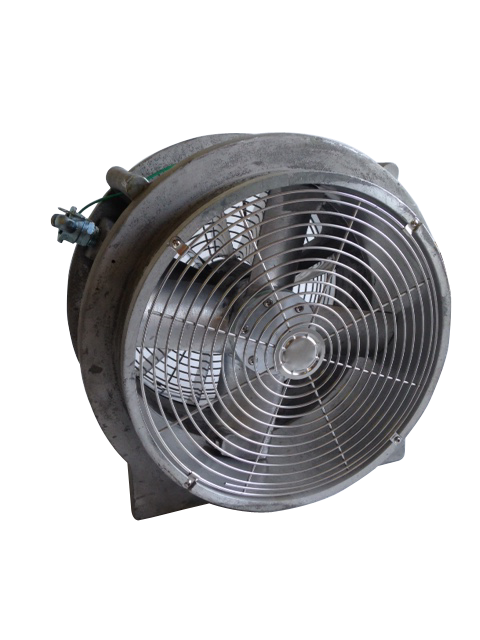

The Texas Pneumatic Jet Fan's innovative four-blade design delivers higher airflows at lower RPMs, significantly extending bearing life. This versatile unit can function as both a blower and an exhauster.
Special Features:
Rugged Construction: Built with a durable cast-aluminum housing and fan blade.
Minimal Rotating Parts: Only the shaft, bearings, and fan blade rotate. The shaft does not transmit power to the fan blade, as it is driven by compressed air jets on the trailing edge of the blades.
High Static Pressure: The hub and four blades generate adequate static pressure to overcome system resistance.
Optimized Blade Design: Two of the four blades have jet outlets, and all blades feature airfoil cross sections to enhance airflow rates.
Efficiency-Enhancing Guide Vanes: Attached guide vanes neutralize air spin past the blades and direct airflow axially, boosting efficiency.
Proven Performance: Independently tested to AMCA Standard 210 for performance validation.
This advanced design ensures long-lasting performance and efficiency in demanding ventilation applications.
Note: Shipped with grounding cable for safety and crowfoot connector
Specifications:
Weight = 63 lbs
Minimum Hose Size = 3/4″ NPT
Air Inlet = 3/4″ NPT
Max Pressure = 120 PSI
Depth = 12.5″
Diameter = 19″
This robust and efficient fan is ideal for applications requiring reliable ventilation. Its advanced design and construction ensure long-lasting performance in demanding environments.
