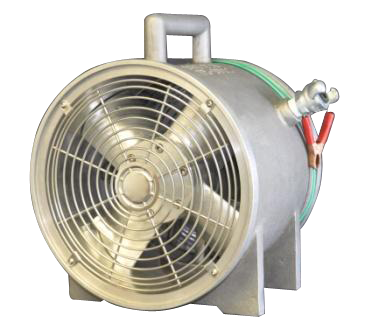

Texas Pneumatic 12" Jet Fan

Texas Pneumatic Jet Fan

The innovative four-blade design of the Texas Pneumatic Jet Fan delivers higher airflows at lower RPMs, which significantly extends bearing life. This versatile unit can function as both a blower and an exhauster. Additionally, an optional adapter plate (TX-JFBFA) is available for use with Butterworth Flanges on ships.

Special Features:

- **Rugged Construction**: Features a cast-aluminum housing and fan blade for durability.
- **Minimal Rotating Parts**: The shaft, bearings, and fan blade are the only rotating components. The shaft does not transmit power to the fan blade, as it is driven by compressed air jets on the trailing edge of the blade.
- **High Static Pressure**: The hub and four blades generate sufficient static pressure to overcome system resistance.
- **Innovative Blade Design**: Only two of the four blades have jet outlets, and all blades have airfoil cross sections to enhance flow rates.
- **Efficiency-Enhancing Guide Vanes**: Attached guide vanes neutralize air spin past the blades and direct airflow axially, increasing efficiency.
- **Performance Tested**: Independently tested to AMCA Standard 210 for performance validation.
- **Safety Features**: Includes a grounding cable and crowfoot connectors for safety.

Specifications:

- **Weight**: 41 lbs
- **Minimum Hose Size**: 3/4″ NPT
- **Air Inlet**: 3/4″ NPT
- **Maximum Pressure**: 120 PSI
- **Depth**: 11″
- **Diameter**: 12.25″

This robust and efficient fan is ideal for applications requiring reliable ventilation. Its advanced design and construction ensure long-lasting performance in demanding environments.
