TXAS1 Parts Diagram

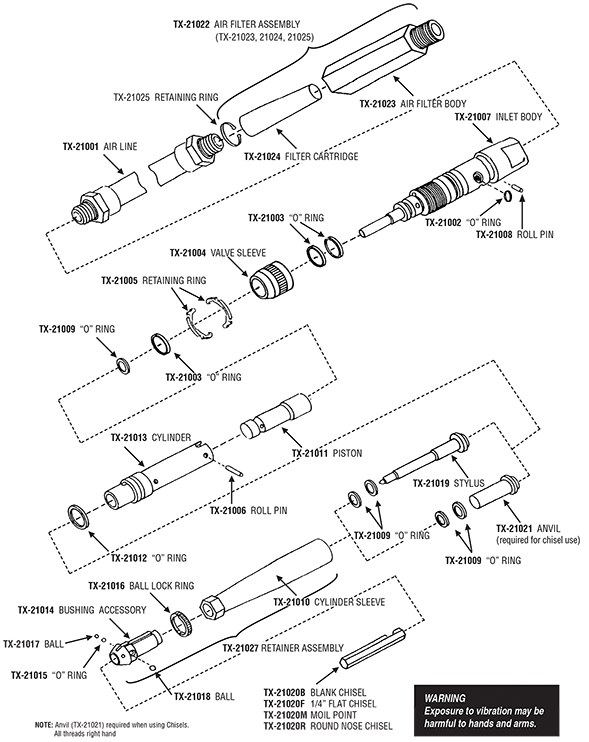

Texas Pneumatic TXAS1 exploded parts diagram. Use the diagram to identify the part you need, then select it from the parts list below.
Repair Parts
| Part # | Description | Price |
|---|---|---|
| TX-21001 | Air Line | $54.98 |
| TX-21002 | "O" Ring | $2.70 |
| TX-21003 | "O" Ring | $3.98 |
| TX-21004 | Valve Sleeve | $118.98 |
| TX-21005 | Retaining Ring (2 Per Tool) | $3.01 |
| TX-21006 | Roll Pin (3/32" x 3/8") | $3.01 |
| TX-21007 | Inlet | $179.13 |
| TX-21008 | Roll Pin (1/16" x 3/16") | $3.01 |
| TX-21009 | Throttle Valve "O" Ring | $1.00 |
| TX-21010 | Cylinder Sleeve | $146.55 |
| TX-21011 | Piston | $65.05 |
| TX-21012 | "O" Ring | $2.28 |
| TX-21013 | Cylinder | $125.24 |
| TX-21014 | Bushing Accessory | $92.91 |
| TX-21015 | "O" Ring | $2.70 |
| TX-21016 | Ball Lock Ring | $55.27 |
| TX-21017 | Ball | $3.01 |
| TX-21018 | Ball | $3.30 |
| TX-21019 | Stylus for TXAS1 Air Scribe | $38.04 |
| TX-21021 | Anvil (For Round, Flat & Blank Chisel) | $26.19 |
| TX-21022 | Air Filter Assembly (TX-21023, 21024, 21025) | $64.46 |
| TX-21023 | Air Filter Body | $64.46 |
| TX-21024 | Filter Cartridge | $17.32 |
| TX-21025 | Retaining Ring | $3.01 |
| TX-21027 | Retainer Assembly (TX-21010, 21014, 21015, 21016, 21017, 21018) | $202.04 |
Accessories & Consumables
| Part # | Description | Price |
|---|---|---|
| TX-21020B | Blank Chisel (TXAS1) | $17.45 |
| TX-21020F | 1/4" Flat Chisel (TXAS1) | $21.09 |
| TX-21020M | Moil Point Chisel (TXAS1) | Unavailable |
| TX-21020R | Round Nose Chisel (TXAS1) | $26.63 |
| TXAS1RK | Air Scribe Repair Kit | $48.98 |
