TX60RD-8 Parts Diagram

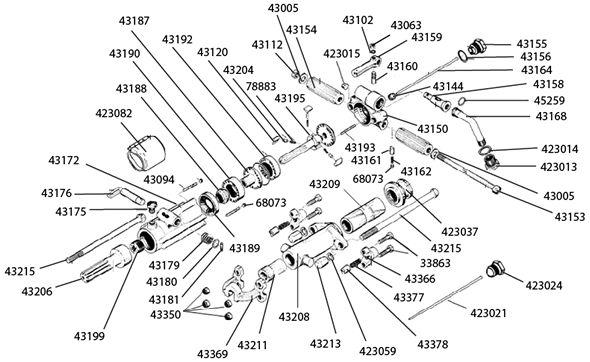

Texas Pneumatic TX60RD-8 exploded parts diagram. Use the diagram to identify the part you need, then select it from the parts list below.

Texas Pneumatic TX60RD-8 parts diagram

Repair Parts

Part # Description Price
43187 Valve Guide $423.70
43190 Rear Valve Chest (Thor 18CD) $253.27
43188 Automatic Valve $224.78
423082 Muffler $313.34
43192 Ratchet Ring $361.68
43120 Pawl (3 Reqd) $44.30
43204 Pawl Plunger (3 Reqd) $15.50
78883 Pawl Spring (3 Reqd) $7.75
43195 Rifle Bar $662.59
43112 Handle Bolt Nut $9.93
43005 Handle Bolt Washer (2 Reqd) $8.93
43154 Handle Grip (2 Reqd) $87.87
423015 OEM schematic position Reference only
43102 Throttle Valve Handle Nut $8.93
43063 Throttle Valve Handle Washer (TX60Rd) $6.69
43159 Throttle Valve Handle $164.74
43160 Throttle Valve Handle Bolt $84.12
43155 Blow Tube Gland $153.50
43156 Blow Tube Gasket $20.96
43164 Blow Tube $113.42
43144 Blow Tube Rubber Seal $27.79
43158 Throttle Valve W/ “O” Ring $429.69
45259 “O” Ring $3.30
43168 Air Inlet Swivel $132.09
43150 Backhead With Bushing (Wet) $1,107.96
43193 Valve Dowel $16.14
43161 Detent Plunger $27.08
43162 Plunger Spring $11.65
68073 Oil Control Plug $4.26
423014 Swivel Nut “O” Ring $4.26
423013 Swivel Nut $93.07
43153 Handle Bolt $97.25
423021 Water Tube $80.82
423024 Water Tube Gland $119.20
423037 Front Washer Bushing $486.58
43215 Side Rod (2 Reqd) $167.73
33863 Steel Retainer Bolt (4 Reqd) $31.08
43366 Steel Retainer Cap (2 Reqd) $232.86
43377 Retainer Spring (2 Reqd) $12.89
43378 Steel Retainer Plunger (2 Reqd) $62.02
423059 Side Rod Lock Washer (2) $5.33
43213 Side Rod Bolt Nut (2 Reqd) $40.54
43208 Fronthead $769.94
43369 Steel Retainer (1 X 4 X 1/4") $454.89
43350 Bolt Nut $3.69
43181 Exhaust Valve Pin $35.01
43180 Exhaust Valve Washer $12.60
43179 Exhaust Valve Spring $47.61
43189 Front Valve Chest $253.75
43094 Oil Felt $33.21
43172 Cylinder $1,722.28
43176 Exhaust Valve $443.35
43175 Oil Plug (Thor 23 PB) $34.02
43206 Piston $645.29
43199 Brass Rifle Nut $188.99
43209 Chuck Driver $474.88
