Texas Pneumatic replacement parts

Needle Scaler

Find Texas Pneumatic TX456-NS repair parts and compatible accessories using the authorized OEM parts diagram.

TX456-NS Parts Diagram

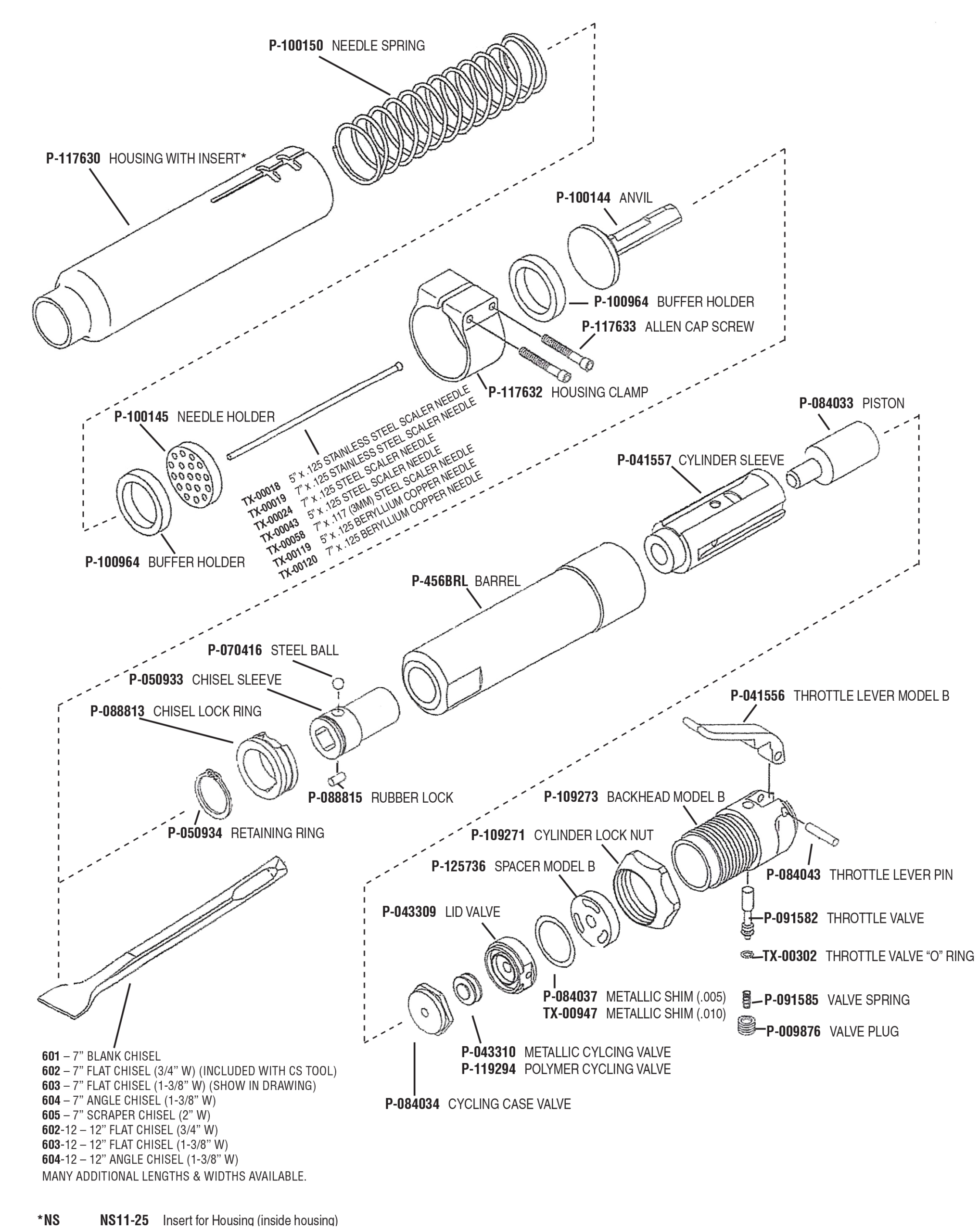

Texas Pneumatic TX456-NS exploded parts diagram. Use the diagram to identify the part you need, then select it from the parts list below.

Texas Pneumatic TX456-NS parts diagram

Repair Parts

Part # Description Price
P-009876 Valve Plug (1/8) $9.01
P-041556 Throttle Lever Model B $44.54
P-041557 Cylinder Sleeve $108.23
P-043309 Lid Valve $69.62
P-043310 Metallic Cycling Valve $41.39
P-050934 Retaining Ring $4.44
P-070416 Steel Ball (5/16") $2.80
P-084033 Piston $31.33
P-084034 Case Valve Cycling $42.37
P-084037 Metallic Shim (.005) $1.95
P-084043 Throttle Lever Pin $5.24
P-088813 Chisel Lock Ring $47.37
P-088815 Rubber Lock $9.32
P-091582 Throttle Valve $20.16
P-091585 Valve Spring $3.98
P-100144 Anvil $53.68
P-100145 Needle Holder $40.54
P-100150 Needle Spring $5.68
P-100964 Buffer Holder $15.03
P-109271 Cylinder Lock Nut $26.96
P-109273 Backhead - Model B $83.78
P-117630 Housing With Insert $129.50
P-117632 Housing Clamp $59.09
P-117633 Allen Cap Screw $4.53
P-125736 Spacer (Model B) $34.33
TX-00302 Throttle Valve "O" Ring $1.00
TX-00947 Backhead Positioning Spacer (.010) $1.00
P-050933 Chisel Sleeve $59.50
P-456BRL Barrel For 456 Scaler $106.61
P-119294 Polymer Cycling Valve $40.36
NS11-25 Insert For Housing $22.74

Accessories & Consumables

Part # Description Price
601 7" Blank Chisel Unavailable
602 7" Flat Chisel (3/4"W) Unavailable
603 7" Flat Chisel (1-3/8"W) Unavailable
604 7" Angle Chisel (1-3/8"W) Unavailable
605 7" Scaler Chisel (2"W) Unavailable
601-12 12" Blank Chisel Unavailable
601-18 18" Blank Chisel Unavailable
602-12 12" Flat Chisel (3/4"W) Unavailable
602-18 18" Flat Chisel (3/4"W) Unavailable
602-24 24" Flat Chisel (3/4"W) Unavailable
603-12 12" Flat Chisel (1-3/8"W) Unavailable
603-18 18" Flat Chisel (1-3/8"W) Unavailable
603-24 24" Flat Chisel (1-3/8"W) Unavailable
604-12 12" Angle Chisel (1-3/8"W) Unavailable
604-18 18" Angle Chisel (1-3/8"W) Unavailable
604-24 24" Angle Chisel (1-3/8"W) Unavailable
605-12 12" Scraper Chisel (2"W) Unavailable
605-18 18" Scraper Chisel (2"W) Unavailable
605-24 24" Scraper Chisel (2"W) Unavailable
605-HD 7" Scaler Chisel (2"W) Heavy Duty Material Unavailable
605-HDW3 7" Scraper Chisel (3"W) Heavy Duty Material Unavailable
TX-00018 5" X 0.125" Stainless Steel Scaler Needle $3.69
TX-00019 7" X 0.125" Stainless Steel Scaler Needle $4.16
TX-00024 7" X 0.125" Scaler Needle $0.95
TX-00043 5" X 0.125" Scaler Needle $0.95
TX-00058 7" X 3Mm Scaler Needle (0.117") $0.95
TX-00058CP 7" X 3Mm Chisel Point Needle $2.39
TX-00119 5" X 0.125" Beryllium Copper Scaler Needle $10.91
TX-00120 7" X 0.125" Beryllium Copper Scaler Needle $12.89
