Texas Pneumatic TX1B-LTCS Lever Throttle Chisel Scaler

Browse the authoritative Texas Pneumatic parts schematic for TX1B-LTCS, select verified replacement parts, or use reference 0000 to purchase a complete replacement tool.
Buy a New Replacement TX1B-LTCS

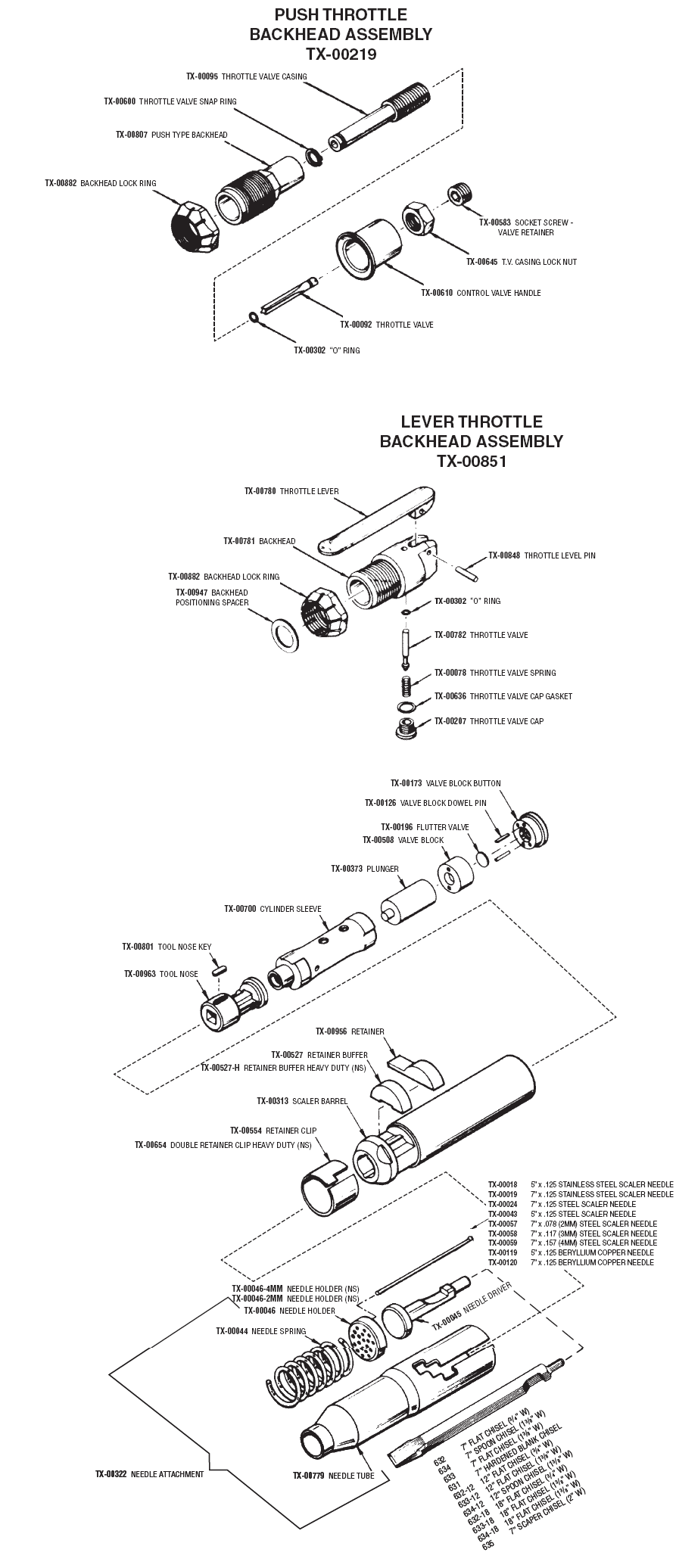

TX1B-LTCS Parts Schematic

Authoritative Texas Pneumatic TX1B exploded diagram. LSAT synthetic reference 0000 is added in the Parts Engine layer and is not part of the manufacturer drawing.
TX1B-LTCS Parts Schematic
Ref. Part OEM part number Qty. Availability
0000 Buy a New Replacement TX1B-LTCS View product
631 7" Blank Chisel 631 Reference only
632 7" Flat Chisel (3/4"W) 632 Reference only
632-12 12" Flat Chisel (3/4"W) 632-12 Reference only
633 7" Flat Chisel (1-3/8"W) 633 Reference only
633-12 12" Flat Chisel (1-3/8"W) 633-12 Reference only
633-18 18" Flat Chisel (1-3/8"W) 633-18 Reference only
633-24 24" Flat Chisel (1-3/8"W) 633-24 Reference only
634 7" Angle Chisel (1-3/8"W) 634 Reference only
634-12 12" Angle Chisel (1-3/8"W) 634-12 Reference only
634-18 18" Angle Chisel (1-3/8"W) 634-18 Reference only
635 7" Scraper Chisel (2"W) 635 Reference only
TX-00018 5" X 0.125" Stainless Steel Scaler Needle TX-00018 View product
TX-00019 7" X 0.125" Stainless Steel Scaler Needle TX-00019 View product
TX-00024 7" X 0.125" Scaler Needle TX-00024 View product
TX-00043 5" X 0.125" Scaler Needle TX-00043 View product
TX-00044 Needle Spring TX-00044 View product
TX-00045 Needle Driver TX-00045 View product
TX-00046 Needle Holder (19 Needles) TX-00046 View product
TX-00046-2MM 2Mm Needle Holder For TX-1B (55 Needles) TX-00046-2MM View product
TX-00046-4MM 4Mm Needle Holder For TX-1B (14 Needles) TX-00046-4MM View product
TX-00057 7" X 2Mm Scaler Needle TX-00057 View product
TX-00058 7" X 3Mm Scaler Needle (0.117") TX-00058 View product
TX-00059 7" X 4Mm Scaler Needle TX-00059 View product
TX-00078 Throttle Valve Spring TX-00078 View product
TX-00092 Push Type Throttle Valve TX-00092 View product
TX-00095 Throttle Valve Casing Assembly TX-00095 View product
TX-00119 5" X 0.125" Beryllium Copper Scaler Needle TX-00119 View product
TX-00120 7" X 0.125" Beryllium Copper Scaler Needle TX-00120 View product
TX-00126 Valve Block Dowel Pin (2 Per Tool) TX-00126 2 per tool View product
TX-00173 Valve Block Button TX-00173 View product
TX-00196 Flutter Valve TX-00196 View product
TX-00207 Throttle Valve Cap TX-00207 View product
TX-00302 Throttle Valve “O” Ring TX-00302 View product
TX-00313 TX-1B Barrel TX-00313 View product
TX-00373 Plunger TX-00373 View product
TX-00508 Valve Block TX-00508 View product
TX-00527 Retainer Buffer TX-00527 View product
TX-00527-H Retainer Buffer (Heavy Duty) (Carboxilated Rubber) TX-00527-H View product
TX-00554 Retainer Clip TX-00554 View product
TX-00583 Socket Screw - Valve Retainer TX-00583 View product
TX-00600 Throttle Valve Snap Ring TX-00600 View product
TX-00610 Control Valve Handle TX-00610 View product
TX-00636 Throttle Valve Cap Gasket TX-00636 View product
TX-00645 Throttle Valve Casing Lock Nut TX-00645 View product
TX-00654 Heavy Duty Retainer Clip (Double Clip) TX-00654 View product
TX-00700 Cylinder Sleeve TX-00700 View product
TX-00779 Round Needle Tube TX-00779 View product
TX-00780 Throttle Lever TX-00780 View product
TX-00781 Bare Lever Type Backhead TX-00781 View product
TX-00782 Throttle Valve W/ “O” Ring TX-00782 View product
TX-00801 Tool Nose Key TX-00801 View product
TX-00807 Push Type Backhead TX-00807 View product
TX-00848 Throttle Lever Pin TX-00848 View product
TX-00882 Backhead Lock Ring TX-00882 View product
TX-00947 Backhead Positioning Spacer (.010) TX-00947 View product
TX-00956 Retainer TX-00956 View product
TX-00963 Tool Nose TX-00963 View product
