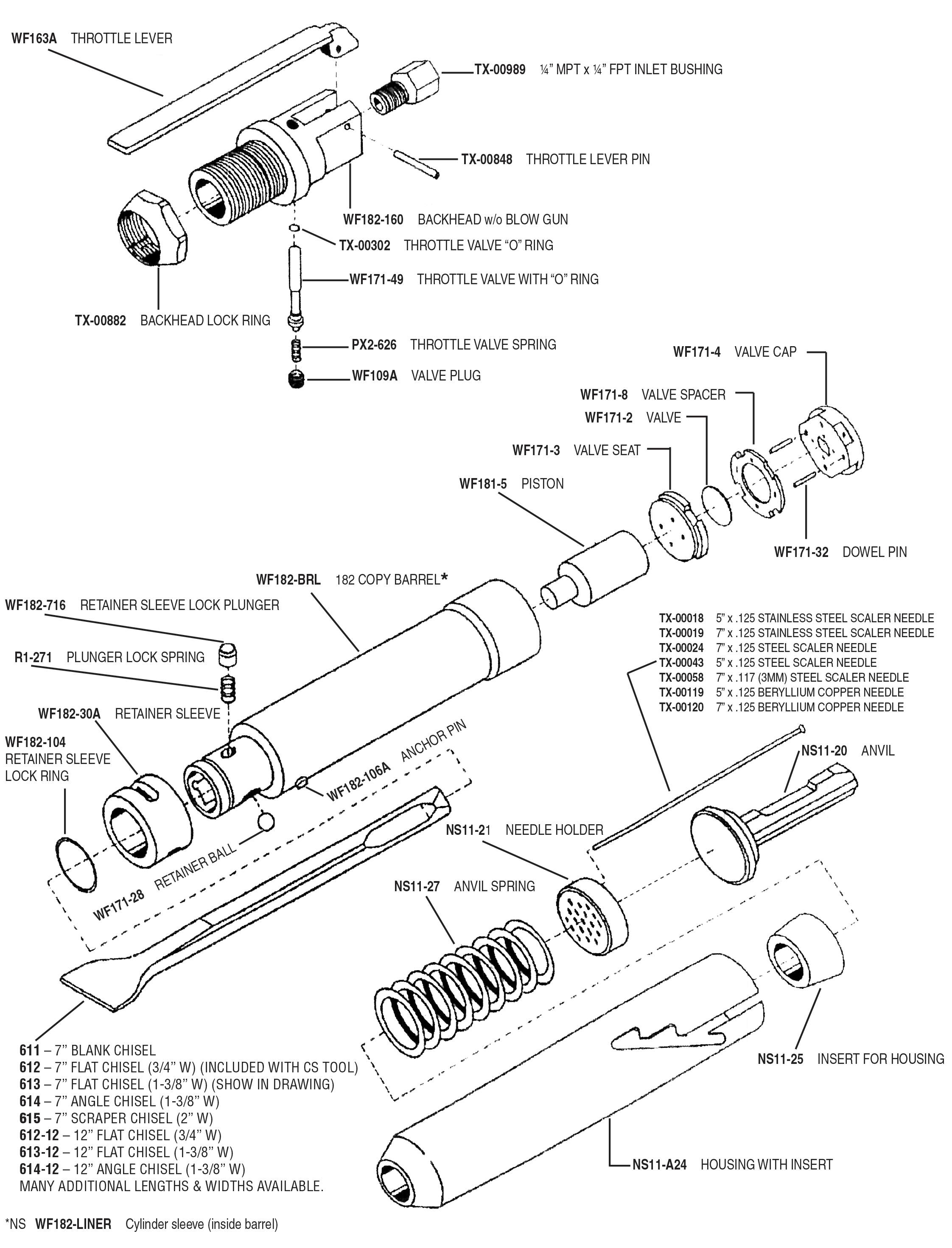

TX182-CS Parts Schematic
| Ref. | Part | OEM part number | Qty. | Availability |
|---|---|---|---|---|
| WF181-5 | Piston | WF181-5 | Reference only | |
| WF171-3 | Valve Seat | WF171-3 | View product | |
| WF171-2 | Valve | WF171-2 | View product | |
| WF171-8 | Valve Spacer | WF171-8 | View product | |
| WF171-4 | Valve Cap | WF171-4 | View product | |
| WF171-32 | Dowel Pin | WF171-32 | View product | |
| WF182-BRL | Barrel | WF182-BRL | Reference only | |
| WF182-716 | Retainer Sleeve Lock Plunger | WF182-716 | View product | |
| R1-271 | Plunger Lock Spring | R1-271 | View product | |
| WF182-30A | Retainer Sleeve | WF182-30A | View product | |
| WF182-104 | Retainer Sleeve Lock Ring | WF182-104 | View product | |
| WF171-28 | Retainer Ball | WF171-28 | View product | |
| WF182-106A | Anchor Pin | WF182-106A | View product | |
| NS11-27 | Anvil Spring | NS11-27 | View product | |
| NS11-21 | Needle Holder | NS11-21 | View product | |
| NS11-25 | Insert For Housing | NS11-25 | View product | |
| NS11-A24 | Housing With Insert | NS11-A24 | View product | |
| TX-00018 | 5" X 0.125" Stainless Steel Scaler Needle | TX-00018 | View product | |
| TX-00019 | 7" X 0.125" Stainless Steel Scaler Needle | TX-00019 | View product | |
| TX-00024 | 7" X 0.125" Scaler Needle | TX-00024 | View product | |
| TX-00043 | 5" X 0.125" Scaler Needle | TX-00043 | View product | |
| TX-00058 | 7" X 3Mm Scaler Needle (0.117") | TX-00058 | View product | |
| TX-00119 | 5" X 0.125" Beryllium Copper Scaler Needle | TX-00119 | View product | |
| TX-00120 | 7" X 0.125" Beryllium Copper Scaler Needle | TX-00120 | View product | |
| 611 | 7" Blank Chisel | 611 | Reference only | |
| 612 | 7" Flat Chisel (3/4"W) | 612 | Reference only | |
| 613 | 7" Flat Chisel (1-3/8"W) | 613 | Reference only | |
| 614 | 7" Angle Chisel (1-3/8"W) | 614 | Reference only | |
| 615 | 7" Scraper Chisel (2" W) | 615 | Reference only | |
| 612-12 | 12" Flat Chisel (3/4"W) | 612-12 | Reference only | |
| 613-12 | 12" Flat Chisel (1-3/8"W) | 613-12 | Reference only | |
| 614-12 | 12" Angle Chisel (1-3/8"W) | 614-12 | Reference only | |
| WF163A | Throttle Lever | WF163A | View product | |
| TX-00989 | 1/4" MPT x 1/4" FPT Inlet Bushing | TX-00989 | Reference only | |
| TX-00848 | Throttle Lever Pin | TX-00848 | View product | |
| WF182-160 | Backhead Without Blow Gun | WF182-160 | View product | |
| TX-00302 | Throttle Valve “O” Ring | TX-00302 | View product | |
| WF171-49 | Throttle Valve | WF171-49 | View product | |
| PX2-626 | Throttle Valve Spring | PX2-626 | View product | |
| WF109A | Throttle Valve Cap | WF109A | Reference only | |
| TX-00882 | Backhead Lock Ring | TX-00882 | View product | |
| WF182-LINER | Cylinder Sleeve (Inside Barrel) | WF182-LINER | View product | |
| NS11-20 | Anvil | NS11-20 | View product | |
| 0000 | Buy a New Replacement TX182-CS | View product |
