Tomato Stake Driver

Find Texas Pneumatic TX1000TSL repair parts using the authorized OEM parts diagram.

TX1000TSL Parts Diagram

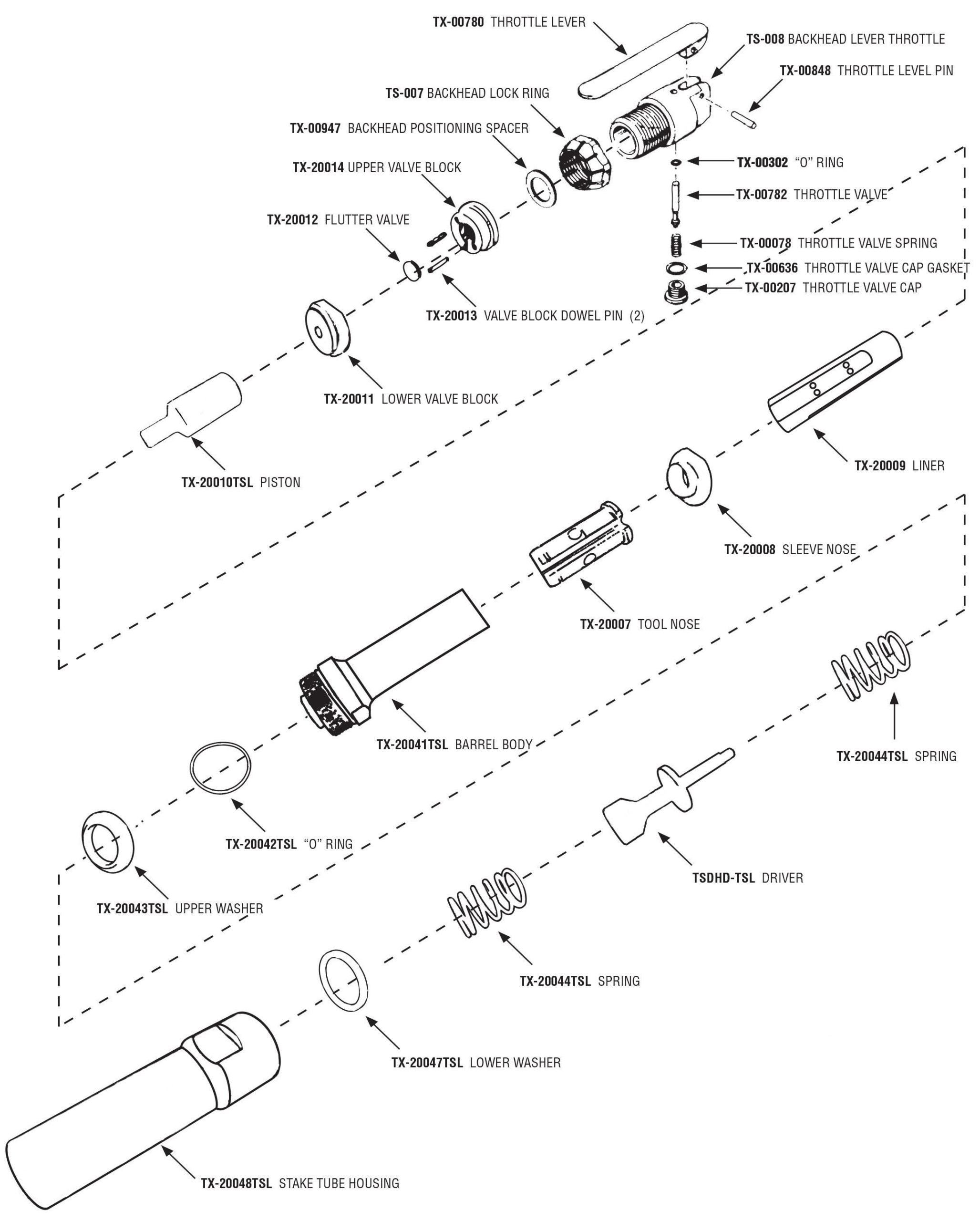

Texas Pneumatic TX1000TSL exploded parts diagram. Use the diagram to identify the part you need, then select it from the parts list below.

Texas Pneumatic TX1000TSL parts diagram

Repair Parts

Part # Description Price
TX-00078 Throttle Valve Spring $1.00
TX-00207 Throttle Valve Cap $7.10
TX-00302 Throttle Valve "O" Ring $1.00
TX-00636 Throttle Valve Cap Gasket $1.00
TX-00780 Throttle Lever $32.84
TX-00782 Throttle Valve W/ "O" Ring $12.75
TX-00848 Throttle Lever Pin $1.00
TX-00947 Backhead Positioning Spacer (.010) $1.00
TX-20007 Tool Nose $92.91
TX-20008 Sleeve Nose $64.46
TX-20009 Liner $158.36
TX-20011 Lower Valve Block (TX2Lrcs) $75.38
TX-20012 Flutter Valve (TX2Lrcs) $20.42
TX-20014 Upper Valve Block (TX2Lrcs) $86.62
TX-20013 Valve Block Dowel Pin $2.28
TS007 Backhead Lock Ring $44.96
TX-20010TSL Piston For TX1000Tsl Hd Staker $64.23
TX-20042TSL Barrel Assembly "O" Ring For TX1000Tsl $4.98
TX-20044TSL Spring For TX1000Tsl (2 Per Tool) $23.85
TX-20048TSL Stake Tube Housing For TX1000Tsl $144.63
TX-20047TSL Lower Washer For TX1000Tsl $23.85
TX-20043TSL Upper Washer For TX1000Tsl $29.25
TX-20041TSL Barrel Body For TX1000Tsl $156.89
TS008 Backhead-Lever Throttle $134.35
TSDHD-TSL Driver $116.70
