Texas Pneumatic TX-JF20 20-Inch Jet Fan

Browse the authoritative Texas Pneumatic TX-JF20 parts schematic, select verified replacement parts, or use reference 0000 to purchase a complete replacement tool.
Buy a New Replacement TX-JF20

TX-JF20 Parts Schematic

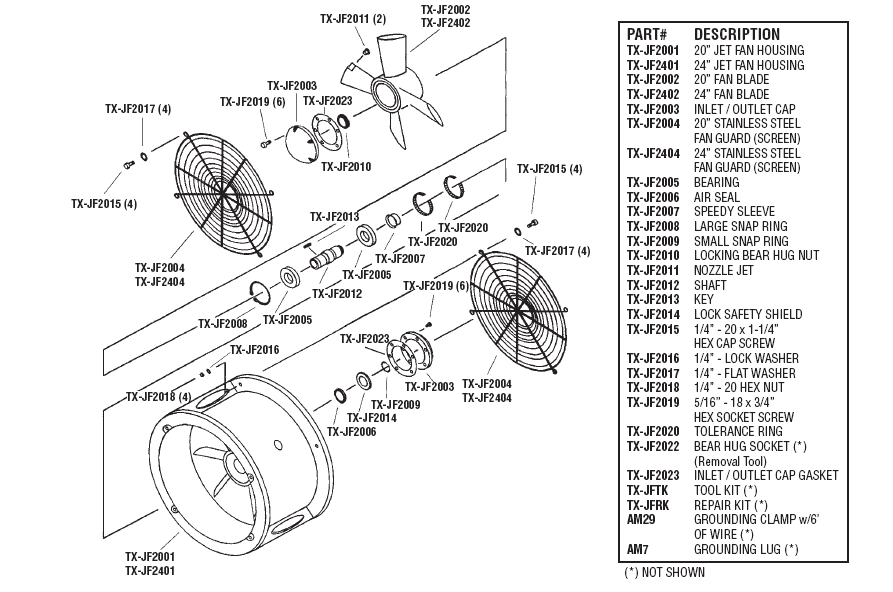

Authoritative Texas Pneumatic TX-JF20/TX-JF24 exploded schematic. Only visible TX-JF20 callouts are modeled. LSAT synthetic reference 0000 is added separately and is not part of the manufacturer drawing.
TX-JF20 Parts Schematic
Ref. Part OEM part number Qty. Availability
TX-JF2001 20" Housing TX-JF2001 Reference only
TX-JF2002A Prop Assembly (TX-JF20) (Balanced Blade W/ Cap, Gasket & 6 Screws) TX-JF2002A View product
TX-JF2003 Inlet / Outlet Cap (TX-JF20 & TX-JF24) TX-JF2003 View product
TX-JF2004 20" Stainless Steel Fan Guard (TX-JF20) TX-JF2004 View product
TX-JF2005 Bearing (TX-JF20 & TX-JF24) TX-JF2005 View product
TX-JF2006 Air Seal (TX-JF20 & TX-JF24) TX-JF2006 View product
TX-JF2007 Speedy Sleeve (TX-JF20 & TX-JF24) TX-JF2007 View product
TX-JF2008 Large Snap Ring (TX-JF20 & TX-JF24) TX-JF2008 View product
TX-JF2009 Small Snap Ring (TX-JF20 & TX-JF24) TX-JF2009 View product
TX-JF2010 Locking Bear Hug (TX-JF20 & TX-JF24) TX-JF2010 View product
TX-JF2011 Nozzle (TX-JF20 & TX-JF24) TX-JF2011 View product
TX-JF2012 Shaft (TX-JF20 & TX-JF24) TX-JF2012 View product
TX-JF2013 Key (TX-JF20 & TX-JF24) TX-JF2013 View product
TX-JF2014 Lock Safety Shield (TX-JF20 & TX-JF24) TX-JF2014 View product
TX-JF2015 1/4"-20 X 1-1/4" Hex Cap Screw (TX-JF20 & TX-JF24) 8 Per Fan TX-JF2015 View product
TX-JF2016 1/4" Split Lockwasher (TX-JF20 & TX-JF24) TX-JF2016 View product
TX-JF2017 1/4" Flat Washer (TX-JF20 & TX-JF24) TX-JF2017 View product
TX-JF2018 1/4"-20 Hex Nut (TX-JF20 & TX-JF24) TX-JF2018 View product
TX-JF2019 5/16"-18 X 3/4" Hex Socket Screw (TX-JF20 & TX-JF24) TX-JF2019 View product
TX-JF2020 Tolerance Ring (TX-JF20 & TX-JF24) TX-JF2020 View product
TX-JF2023 Gasket (TX-JF20 & TX-JF24) TX-JF2023 View product
0000 Buy a New Replacement TX-JF20 View product
