Texas Pneumatic replacement parts

Dust Collection System (3") with Cart

Find Texas Pneumatic TX-DCS3 repair parts and compatible components using the authorized OEM parts diagram.

TX-DCS3 Parts Diagram

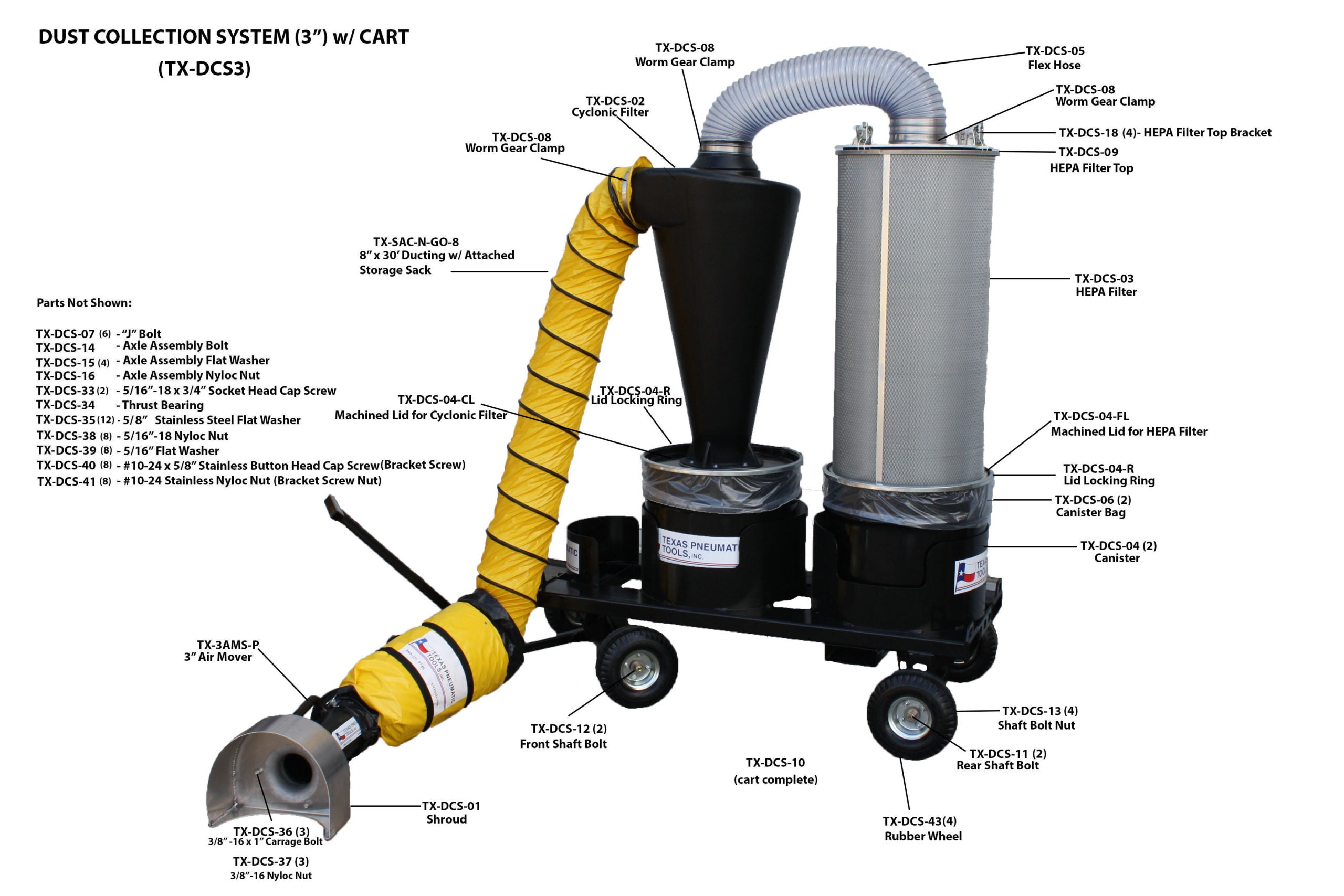

Texas Pneumatic TX-DCS3 exploded parts diagram. Use the diagram to identify the part you need, then select it from the parts list below.

Texas Pneumatic TX-DCS3 parts diagram

Repair Parts

Part # Description Price
TX-3AMS-P 3" Air Mover (Short) w/ Polyurethan Horn $498.40
TX-SAC-N-GO-8 8" Ducting w/ Attached Storage Bag $420.00
TX-DCS-01 Shroud (Aluminum) $403.37
TX-DCS-02 Cyclonic Filter $439.99
TX-DCS-03 Hepa Filter $953.23
TX-DCS-04 Canister (20 Gallon) $148.90
TX-DCS-04-CL Machined Lid For Large Cyclonic Filter $106.89
TX-DCS-04-FL Machined Lid For Large Hepa Filter $106.89
TX-DCS-04-R Lid Locking Ring $75.84
TX-DCS-05 Flex Hose $105.44
TX-DCS-06 Canister Bag $3.40
TX-DCS-07 "J" Bolt $3.98
TX-DCS-08 6" Work Gear Clamp $8.46
TX-DCS-09 Hepa Filter Top (Aluminum) $481.60
TX-DCS-10 Cart (Assembled) $1,444.80
TX-DCS-11 Rear Shaft Bolt $10.46
TX-DCS-12 Front Shaft Bolt $10.46
TX-DCS-13 Shaft Bolt Nut $2.70
TX-DCS-14 Axle Assembly Bolt $6.36
TX-DCS-15 Axle Assembly Flat Washer $4.53
TX-DCS-16 Axle Assembly Nyloc Nut $4.53
TX-DCS-18 Hepa Filter Top Bracket $29.00
TX-DCS-33 5/16"-18 X 3/4" Hex Socket Screw (TX-JF20 & TX-JF24) $4.98
TX-DCS-34 Thrust Bearing $18.81
TX-DCS-35 5/8" Stainless Steel Flat Washer $7.75
TX-DCS-36 3/8"-16 X 1" Carrage Bolt - Stainless $3.60
TX-DCS-37 3/8"-16 Nyloc Nut - Stainless $2.28
TX-DCS-38 5/16"-18 Nyloc Nut - Stainless $2.28
TX-DCS-39 5/16" Flat Washer - Stainless $0.95
TX-DCS-40 #10-24 X 5/8" Stainless Button Head Cap Screw $2.70
TX-DCS-41 #10-24 Stainless Nyloc Nut $2.28
TX-DCS-43 Rubber Wheel (Flat Free) $156.01
