TX-C9 Parts Diagram

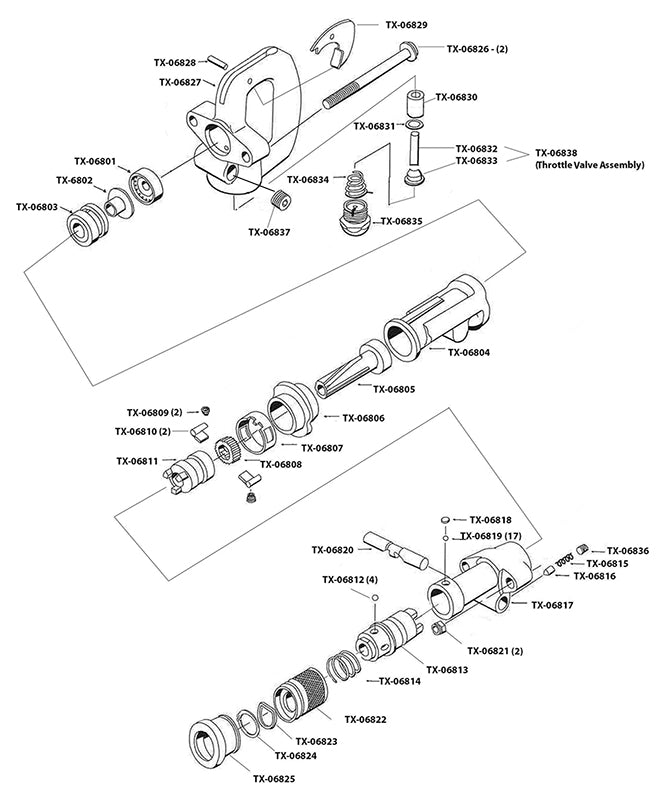

Texas Pneumatic TX-C9 exploded parts diagram. Use the diagram to identify the part you need, then select it from the parts list below.

Texas Pneumatic TX-C9 parts diagram

Repair Parts

Part # Description Price
TX-06808 Ratchet Ring $83.27
TX-06809 Pawl Spring (2) $12.46
TX-06810 Pawl (2) $34.58
TX-06827 Handle Bare $462.00
TX-06821 Side Rod Nut $6.86
TX-06826 Side Rod $71.76
TX-06815 Plunger Spring $18.41
TX-06816 Plunger $33.96
TX-06828 Throttle Lever Pin $5.33
TX-06801 Rear Valve Chest $191.63
TX-06802 Valve $134.57
TX-06803 Front Valve Chest $226.76
TX-06804 Cylinder $630.62
TX-06805 Piston $240.83
TX-06806 Cylinder Bushing $247.83
TX-06807 Shifter Sleeve $134.57
TX-06811 Chuck Driver $226.76
TX-06812 Chuck Driver Ball (4 Required) $5.76
TX-06813 Chuck (Round) $240.83
TX-06814 Chuck Spring $21.42
TX-06817 Front Head $345.00
TX-06818 Front Head Plug $17.93
TX-06819 Front Head Ball $5.76
TX-06820 Selector Pin (Hammer/Drill) $120.09
TX-06822 Retainer Sleeve $205.76
TX-06823 Retainer Plate $75.84
TX-06824 External Snap Ring $20.49
TX-06825 Rubber Dust Sleeve $26.51
TX-06829 Throttle Lever $60.67
TX-06830 Throttle Valve Bushing $75.84
TX-06831 Throttle Valve "O" Ring $17.93
TX-06832 Throttle Push Pin $19.22
TX-06833 Throttle Valve Spool $34.33
TX-06834 Throttle Valve Spring $9.47
TX-06835 Air Inlet Bushing $75.84
TX-06836 Plunger Screw $14.25
TX-06837 Oil Plug $15.17
TX-06838 Throttle Valve Assembly $49.10

Accessories & Consumables

Part # Description Price
TX-06820L Selector Pin Used W/ Muffler $56.45
TX-06840 Muffler Asssembly $282.68
