Bench Rammer

TX-8/2-1/2 Parts Diagram

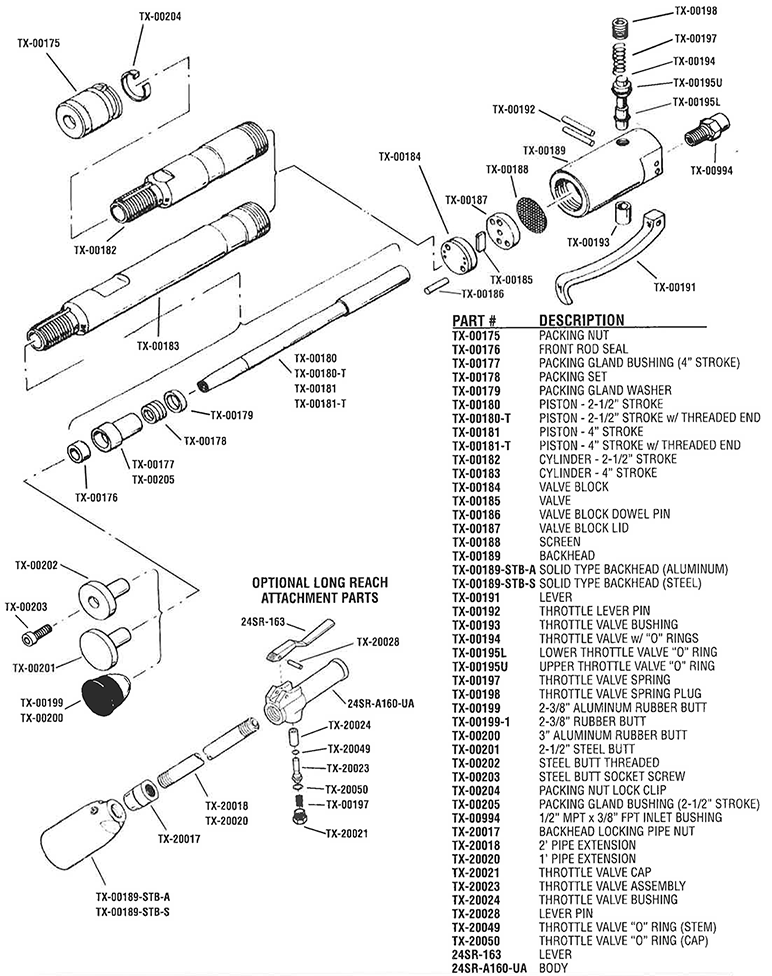

Texas Pneumatic TX-8/2-1/2 exploded parts diagram. Use the diagram to identify the part you need, then select it from the parts list below.

Repair parts for Bench Rammer
Part #	Description	Price
TX-00175	Packing Nut	$59.56
TX-00176	Rod Front Seal	$18.47
TX-00178	Packing Set (TX8)	$36.99
TX-00179	Packing Gland Washer	$24.57
TX-00184	Valve Block	$126.29
TX-00185	Valve	$13.18
TX-00186	Valve Block Dowel Pin	$5.24
TX-00187	Valve Block Lid	$43.46
TX-00188	Screen	$5.42
TX-00189	Backhead	$175.34
TX-00189-STB-A	Solid Type Backhead (Aluminum)	Reference only
TX-00189-STB-S	Solid Type Backhead (Steel)	Reference only
TX-00191	Lever	$64.23
TX-00192	Throttle Lever Pin	$6.36
TX-00193	Throttle Valve Bushing	$23.46
TX-00194	Throttle Valve W/”O” Ring	$36.99
TX-00195L	Lower Throttle Valve “O” Ring	$2.49
TX-00195U	Throttle Valve “O” Ring	$2.28
TX-00197	Throttle Valve Spring	$3.01
TX-00198	Throttle Valve Spring Plug	$12.75
TX-00204	Packing Nut Lock Clip	$25.99
TX-00994	1/2" MPT x 3/8" FPT Inlet Bushing	$11.50
TX-00180	Piston - 2 1/2" Stroke	$155.14
TX-00180-T	Piston With Thread 2-1/2" Stroke	$130.15
TX-00182	Cylinder - 2-1/2" Stroke	$501.82
TX-00205	Packing Gland Bushing (2-1/2"Stroke)	$71.07

Compatible accessories and consumables for Bench Rammer
Part #	Description	Price
TX-00199	2-3/8" Aluminum Rubber Butt (802 Taper)	Unavailable
TX-00199-1	2-3/8" Neoprene Butt W/ Steel Insert	$126.68
TX-00200	3" Aluminum Rubber Butt (802 Taper)	$126.68
TX-00201	TX-00201	$126.68
TX-00202	Steel Butt Threaded	Unavailable
TX-00203	Steel Butt Socket Screw	$3.30
TX-20017	Backhead Locking Pipe Nut (3/4" Npt)	$64.23
TX-20018	2' Pipe Extension (3/4" MPT)	$96.96
TX-20020	1' Pipe Extension	$62.48
TX-20021	Throttle Valve Cap	$38.10
TX-20023	Throttle Valve Assembly	$58.27
TX-20024	Throttle Valve Bushing	$57.21
TX-20028	Lever Pin	$5.33
TX-20049	Throttle Valve “O” Ring (Stem)	$3.01
TX-20050	Throttle Valve “O” Ring (Cap)	$2.70
24SR-163	Lever	$44.24
24SR-A160-UA	Body	Unavailable
