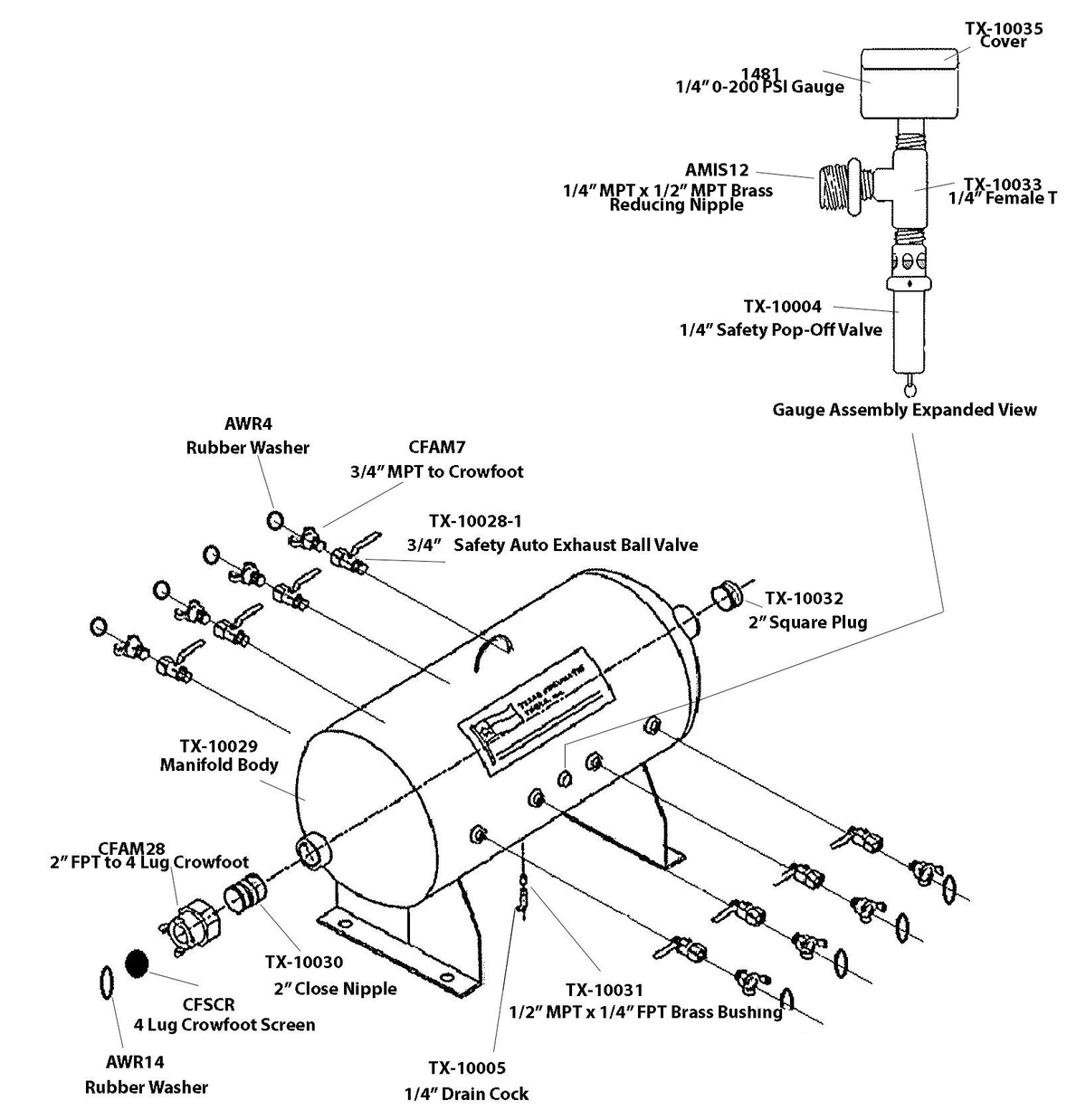

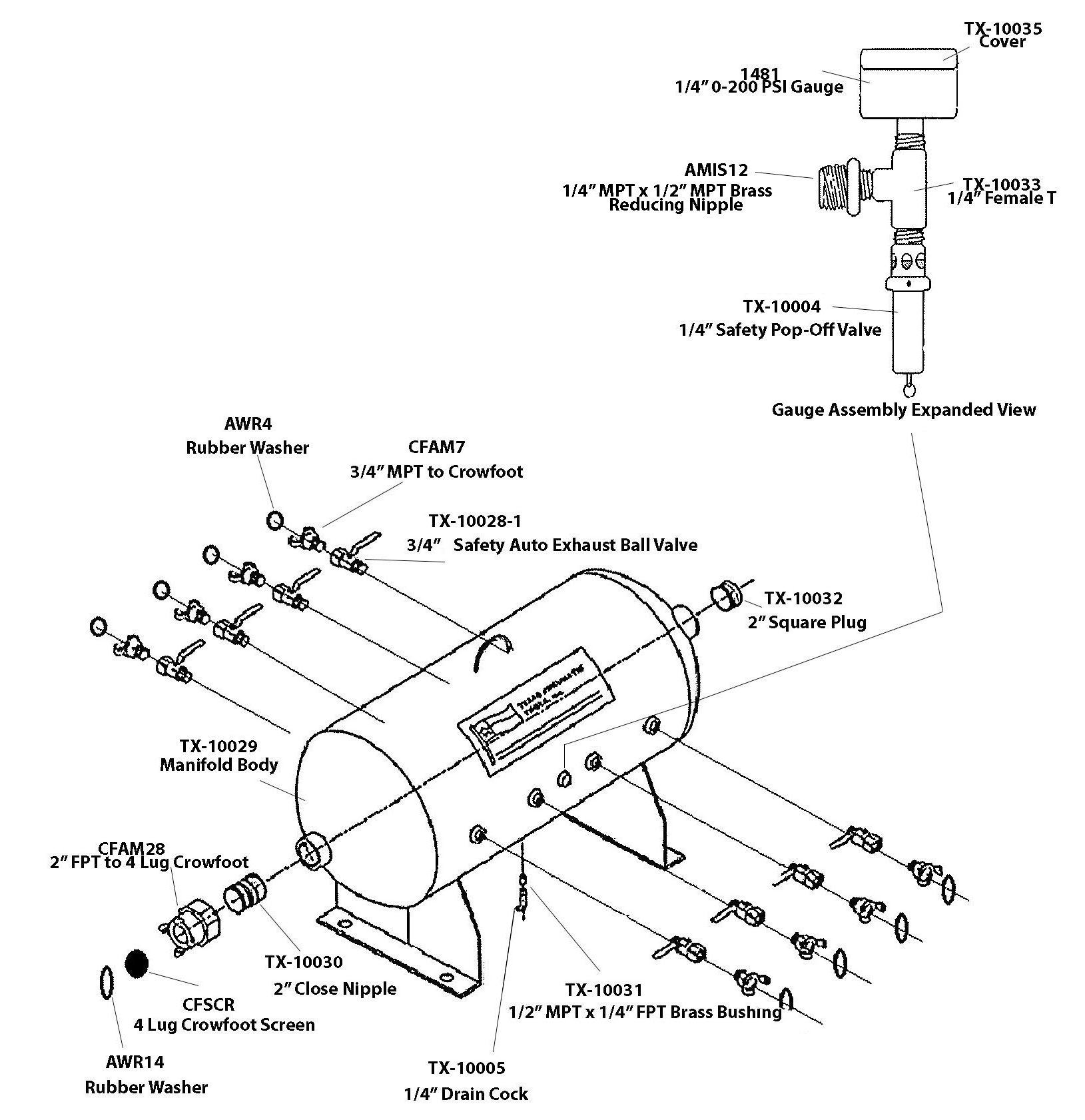

TX-2AMF Parts Schematic
| Ref. | Part | OEM part number | Qty. | Availability |
|---|---|---|---|---|
| 1481 | Pressure Gauge W/ 1/4" Npt & 0 - 200 Psi Pressure Rating. | 1481 | Reference only | |
| TX-10004 | 1/4" Safety Pop-Off Valve F/TX-1AMF & TX-2AMF (200 PSI) | TX-10004 | Reference only | |
| TX-10005 | 1/4" Drain Cock F/T X 1AMF & TX-2AMF | TX-10005 | Reference only | |
| TX-10028-1 | 3/4" Safety Auto Exhaust Ball Valve (M X F) (Osha Compliant) With Locking Handle | TX-10028-1 | View product | |
| TX-10029 | TX-2AMF Manifold Body (Asme) | TX-10029 | View product | |
| TX-10031 | 1/2" MPT X 1/4" FPT Brass Hex Bushing | TX-10031 | View product | |
| TX-10032 | 2" Square Plug | TX-10032 | View product | |
| TX-10035 | Cover For 1481 Gauge (Yellow) | TX-10035 | View product | |
| AWR14 | Black Washers For 4-Lug Crowfoot | AWR14 | Reference only | |
| AWR4 | Rubber Washer For Crowfoot | AWR4 | Reference only | |
| CFAM28 | 2" FPT to 4 Lug Crowfoot w/ Rubber Washer | CFAM28 | Reference only | |
| CFAM7 | 3/4" MPT to Crowfoot w/ Rubber Washer | CFAM7 | Reference only | |
| TX-10030 | 2" Close Nipple Galvenized | TX-10030 | View product | |
| TX-10033 | 1/4" Female “T” - Brass | TX-10033 | View product | |
| AMIS12 | 1/4" MPT X 1/2" MPT Brass Reducing Nipple | AMIS12 | Reference only | |
| CFSCR | Inlet Brass Screen For Crowfoot | CFSCR | View product | |
| 0000 | Buy a New Replacement TX-2AMF | View product |
