TX-0L-F Parts Diagram

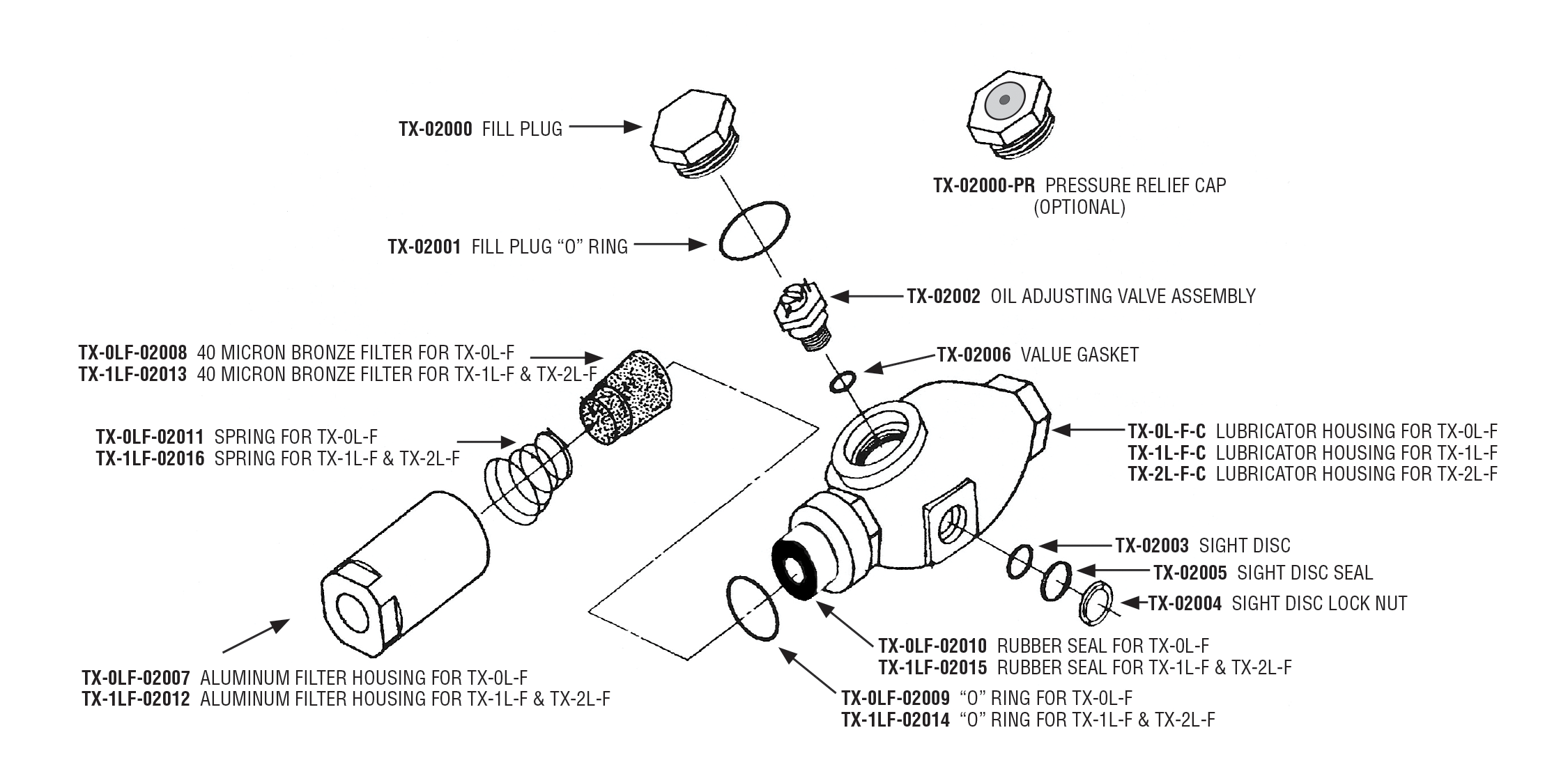

Texas Pneumatic TX-0L-F exploded parts diagram. Use the diagram to identify the part you need, then select it from the parts list below.
Repair Parts
| Part # | Description | Price |
|---|---|---|
| TX-02000 | Fill Plug | $8.07 |
| TX-02001 | Fill Plug "O" Ring | $2.06 |
| TX-02002 | Oil Adjusting Valve Assembly | $19.08 |
| TX-02003 | Sight Disk | $4.71 |
| TX-02004 | Sight Disk Lock Nut | $7.59 |
| TX-02005 | Sight Disk Seal | $2.28 |
| TX-02006 | Valve Gasket | $1.49 |
| TX-02000-PR | Lubricator Pressure Relief Cap (Assembly) | $19.89 |
| TX-0LF-02007 | Aluminum Filter Housing (TX-0L-F) | $22.87 |
| TX-0LF-02008 | 40 Micron Bronze Filter For TX-0L-F | $19.35 |
| TX-0LF-02009 | O Ring For TX-0L-F | $2.17 |
| TX-0LF-02010 | Rubber Seal For TX-0L-F | $3.79 |
| TX-0LF-02011 | Spring For TX-0L-F | $3.69 |
| TX-0L-F-C | Lubricator Housing for TX-0L-F | Reference only |
Accessories & Consumables
| Part # | Description | Price |
|---|---|---|
| TX-L-RK | Lubricator Repair Kit | $14.32 |
