TX-00 Parts Diagram

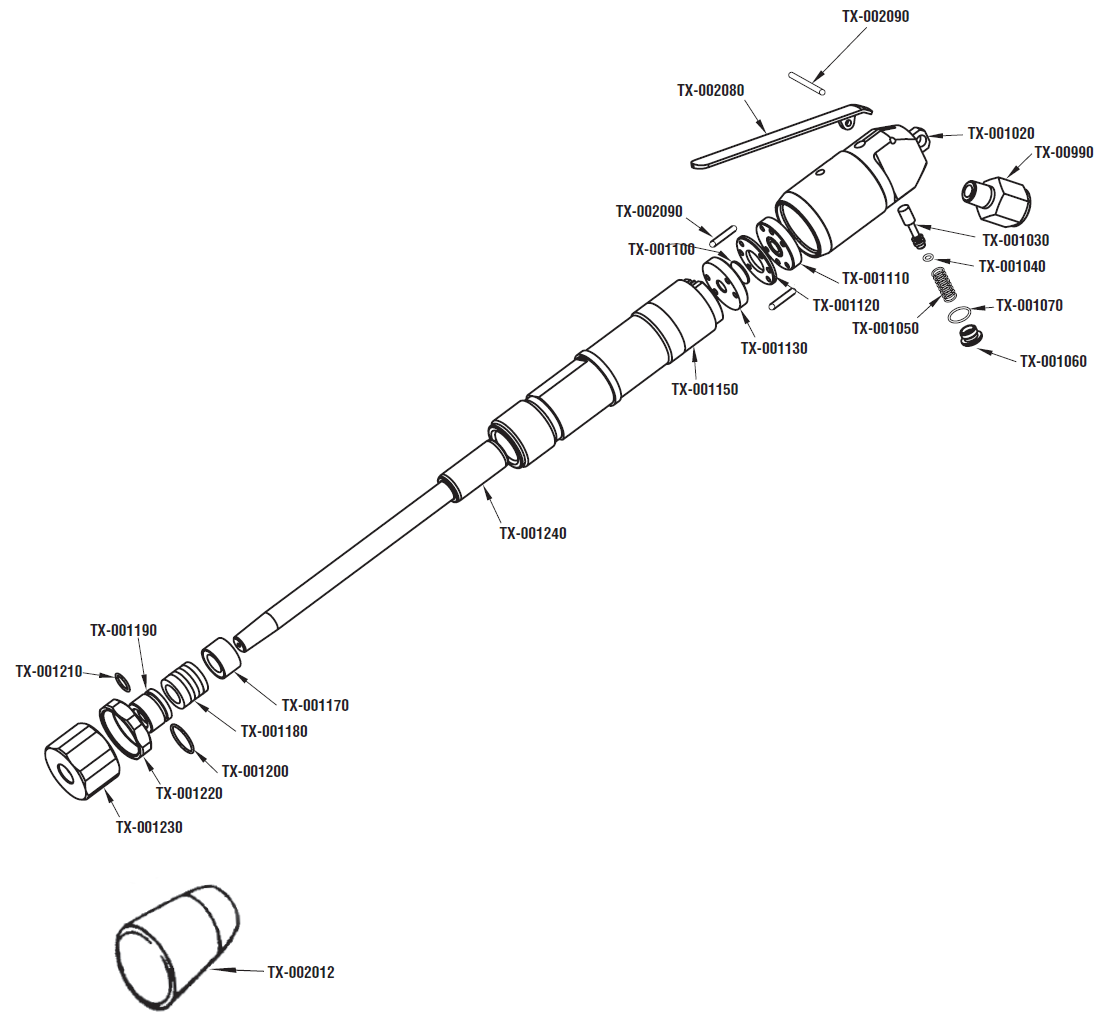

Texas Pneumatic TX-00 exploded parts diagram. Use the diagram to identify the part you need, then select it from the parts list below.
Repair Parts
| Part # | Description | Price |
|---|---|---|
| TX-002080 | Throttle Lever | $32.84 |
| TX-002090 | Spring Pin | $1.72 |
| TX-00990 | 1/4" MPT x 3/8" FPT Inlet Bushing | $9.93 |
| TX-001020 | Backhead | $73.60 |
| TX-001030 | Throttle Valve | $8.93 |
| TX-001040 | Throttle Valve "O" Ring | $1.00 |
| TX-001050 | Throttle Valve Spring | $1.00 |
| TX-001060 | Throttle Valve Cap | $7.75 |
| TX-001070 | Throttle Cap "O" Ring | $1.00 |
| TX-001100 | Flutter Valve | $8.70 |
| TX-001110 | Upper Valve Seat | $68.52 |
| TX-001120 | Middle Valve Seat | $27.66 |
| TX-001130 | Lower Valve Seat | $45.75 |
| TX-001150 | TX-00 Barrel | $224.78 |
| TX-001170 | Inner Bushing | $36.62 |
| TX-001180 | Packing Assembly (3 Pcs) | $36.99 |
| TX-001190 | Outer Bushing | $55.15 |
| TX-001200 | Outer Bushing O.D."O" Ring | $2.28 |
| TX-001210 | Outer Bushing I.D."O" Ring | $2.28 |
| TX-001220 | Jam Nut | $27.98 |
| TX-001230 | Gland Nut | $67.89 |
| TX-001240 | Piston | $151.37 |
| TX-002012 | Rubber Butt | $99.61 |
