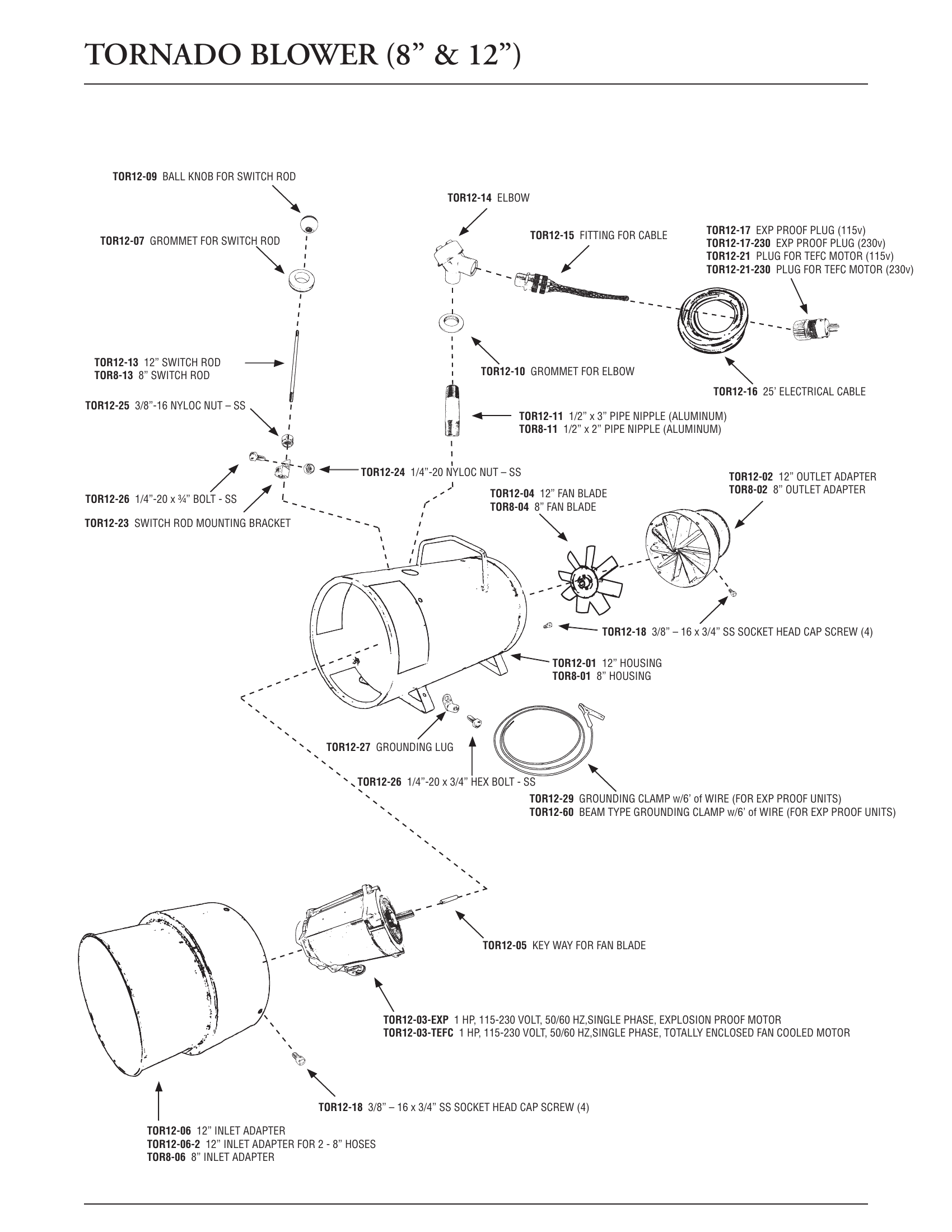

Schematic references for Texas Pneumatic TB-12-EXP 12-Inch Explosion-Proof Tornado Blower
Ref.
Part
OEM part number
Qty.
Availability
TOR12-23
Switch Rod Mounting Bracket
TOR12-23
Reference only
TOR12-26
1/4"-20 X 3/4" Bolt (Stainless)
TOR12-26
Reference only
TOR12-24
1/4"-20 Nyloc Nut - Stainless
TOR12-24
Reference only
TOR12-25
3/8"-16 Nyloc Nut - Stainless
TOR12-25
Reference only
TOR12-13
Switch Rod
TOR12-13
Reference only
TOR12-60
Beam Type Grounding Clamp W/ 6′ Of Wire
TOR12-60
Reference only
TOR12-29
Grounding Clamp W/ 6′ Of Wire
TOR12-29
Reference only
TOR12-27
Grounding Lug
TOR12-27
Reference only
TOR12-18
3/8"-16 X 3/4" Stainless Socket Head Cap Screw
TOR12-18
Reference only
TOR12-17
Explosion Proof Plug (115 Volt)
TOR12-17
Reference only
TOR12-16
25′ Electrical Cable
TOR12-16
Reference only
TOR12-15
Fitting For Cable (1/2" MPT - Explosion Proof)
TOR12-15
Reference only
TOR12-14
Elbow (Explosion Proof)
TOR12-14
Reference only
TOR12-11
1/2" X 3" Pipe Nipple (Aluminum)
TOR12-11
Reference only
TOR12-10
Grommet For Elbow
TOR12-10
Reference only
TOR12-09
Ball Knob For Switch Rod
TOR12-09
Reference only
TOR12-07
Grommet For Switch Rod
TOR12-07
Reference only
TOR12-06
12" Inlet Adapter
TOR12-06
Reference only
TOR12-05
Key Way For Fan Blade
TOR12-05
Reference only
TOR12-04
12" Fan Blade
TOR12-04
Reference only
TOR12-03-EXP
1 Hp, 115-230 Volt, 50/60 Hz, 3450 Rpm, Explosion Proof Electric Motor
