Texas Pneumatic T3 Triple Piston Scaler

Browse the authoritative Texas Pneumatic T3 parts schematic, select verified replacement parts, or use reference 0000 to purchase a complete replacement tool.
Buy a New Replacement T3

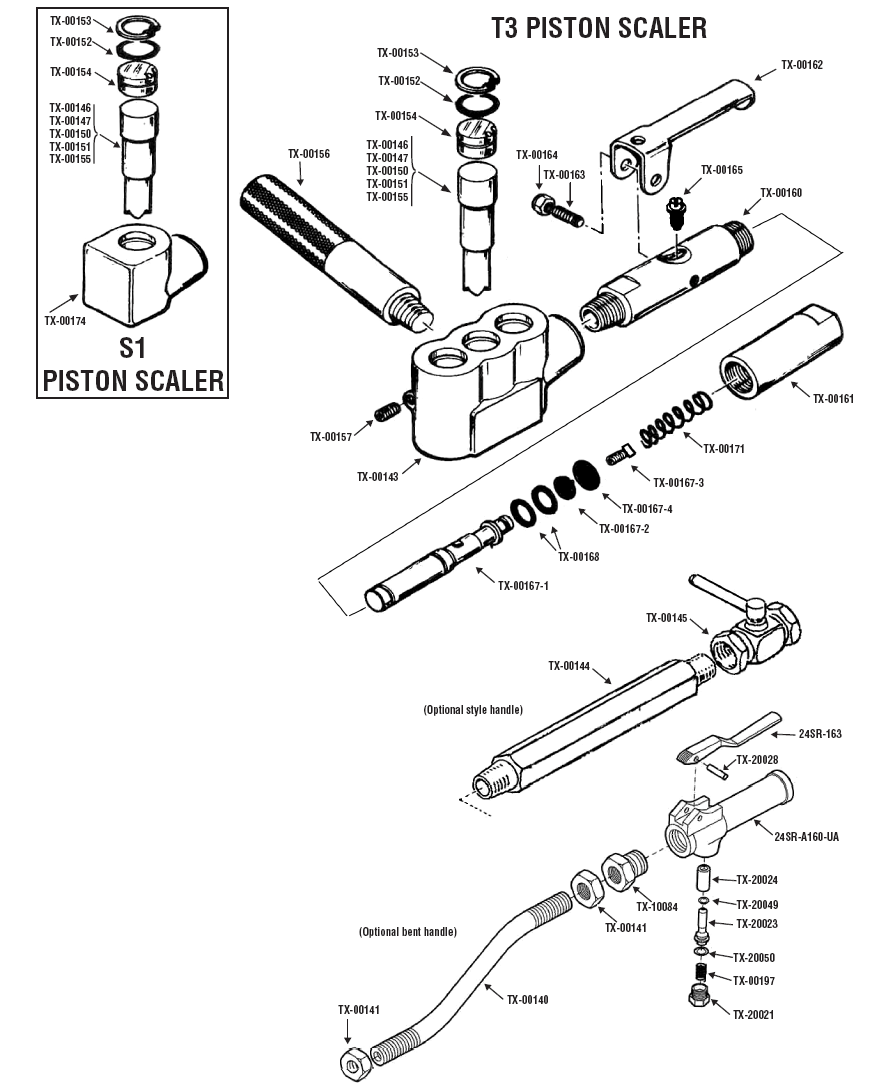

T3 Parts Schematic

Authoritative Texas Pneumatic S1/T3 piston scaler exploded diagram and service/parts manual. Only callouts applicable to the T3 drawing are modeled. LSAT synthetic reference 0000 is added in the Parts Engine layer and is not part of the manufacturer drawing.
T3 Parts Schematic
Ref. Part OEM part number Qty. Availability
TX-00153 Retainer Ring For Plug TX-00153 View product
TX-00152 Ring Seal For Plug TX-00152 View product
TX-00154 Nylon Plug TX-00154 View product
TX-00156 Dead Handle (T3) TX-00156 View product
TX-00146 Standard Steel Piston TX-00146 View product
TX-00147 Steel Piston - 2" Longer Than Standard TX-00147 View product
TX-00150 Carbide Tipped Piston (Star Point) TX-00150 View product
TX-00151 Rexalloy®™ Piston (Star Point) TX-00151 Reference only
TX-00155 Rexalloy®™ Piston (Chisel Point) TX-00155 Reference only
TX-00162 Throttle Lever (S1 And T3) TX-00162 View product
TX-00165 Operating Stud TX-00165 View product
TX-00160 Snap Handle Body TX-00160 View product
TX-00161 Snap Handle Body End (S1 & T3) TX-00161 View product
TX-00157 1/8 ” Pipe Plug For Body (T3) TX-00157 View product
TX-00143 Triple Scaler Body TX-00143 Reference only
TX-00171 Valve Spring TX-00171 View product
TX-00167-4 Metal Cap For Rubber Washer TX-00167-4 View product
TX-00167-2 Throttle Valve Flat Rubber Washer TX-00167-2 View product
TX-00168 Throttle Valve “O” Ring TX-00168 Reference only
TX-00167-1 Snap Handle Valve W/ Flat Rubber Washer TX-00167-1 View product
TX-00145 Air Cock TX-00145 View product
TX-00144 Air Handle - Triple Piston Scaler TX-00144 Reference only
24SR-163 Throttle Lever 24SR-163 Reference only
TX-20028 Lever Pin TX-20028 View product
24SR-A160-UA Optional Style Handle Body 24SR-A160-UA Reference only
TX-20021 Throttle Valve Cap TX-20021 View product
TX-00197 Throttle Valve Spring TX-00197 View product
TX-20050 Throttle Valve “O” Ring (Cap) TX-20050 View product
TX-20023 Throttle Valve Assembly TX-20023 View product
TX-20024 Throttle Valve Bushing TX-20024 View product
TX-10084 3/4" MPT X 1/2" FPT (Brass) Bushing TX-10084 View product
TX-00141 Jam Nut TX-00141 View product
TX-00140 Bent Handle Pipe TX-00140 View product
TX-00164 Pivot Screw Nut TX-00164 View product
TX-00163 Pivot Screw TX-00163 View product
TX-00167-3 Throttle Valve Socket Head Cap Screw TX-00167-3 View product
TX-20049 Throttle Valve “O” Ring (Stem) TX-20049 View product
0000 Buy a New Replacement T3 View product
