Texas Pneumatic Tools supplied replacement parts

Ingersoll Rand 125 Compatible Replacement Parts

Supplier-verified compatible replacement parts. Check any serial-number restriction shown with the parts list.

27 Compatible Replacement Parts

Model 125 — Compatible replacement parts

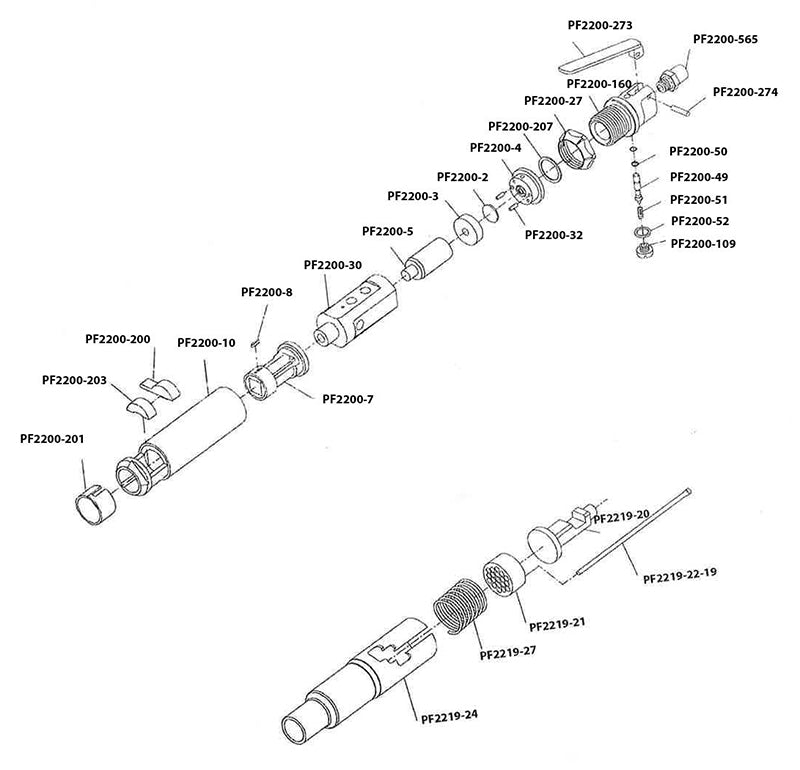

Supplier parts diagram for Ingersoll Rand 125 — Compatible replacement parts

Supplier-verified model compatibility. Texas Pneumatic Tools replacement parts. No diagram or quantity inferred.

TPT SKUDescriptionPrice
PF2200-109 Throttle Valve Cap $7.10
PF2200-160 Bare Lever Type Backhead (5/16) $69.51
PF2200-2 Flutter Valve $8.70
PF2200-200 Retainer $21.55
PF2200-201 Retainer Clip $7.67
PF2200-203 Retainer Buffer $6.11
PF2200-207 Backhead Positioning Spacer $1.00
PF2200-27 Backhead Lock Ring $27.98
PF2200-273 Throttle Lever (5/16″ Slot) $32.84
PF2200-274 Throttle Lever Pin $1.00
PF2200-30 Cylinder Sleeve $82.01
PF2200-32 Valve Block Dowel Pin $2.28
PF2200-49 Throttle Valve W/ “O” Ring $12.75
PF2200-5 Plunger $23.85
PF2200-50 Throttle Valve “O” Ring $1.00
PF2200-51 Throttle Valve Spring $1.00
PF2200-52 Throttle Valve Cap Gasket $1.00
PF2200-565 3/8″ X 1/4″ Inlet Bushing $9.93
PF2200-7 Tool Nose $38.89
PF2200-8 Tool Nose Key $3.01
PF2200-A10 Barrel Assembly $217.26
PF2219-20 Needle Driver $58.57
PF2219-21 Needle Holder $42.12
PF2219-22-19 7″ Scaler Needle $18.13
PF2219-24 Round Needle Tube $81.10
PF2219-27 Needle Spring $5.68
PF2219-K19 Round Needle Attachment $174.85
Compatibility is based on Texas Pneumatic Tools supplier parts listings. No diagram is reproduced here.
