Texas Pneumatic CP 9362 Chicago Pneumatic Repair Parts

TPT-manufactured compatible replacement parts for Chicago Pneumatic CP 9362.

CP 9362 Parts Diagram

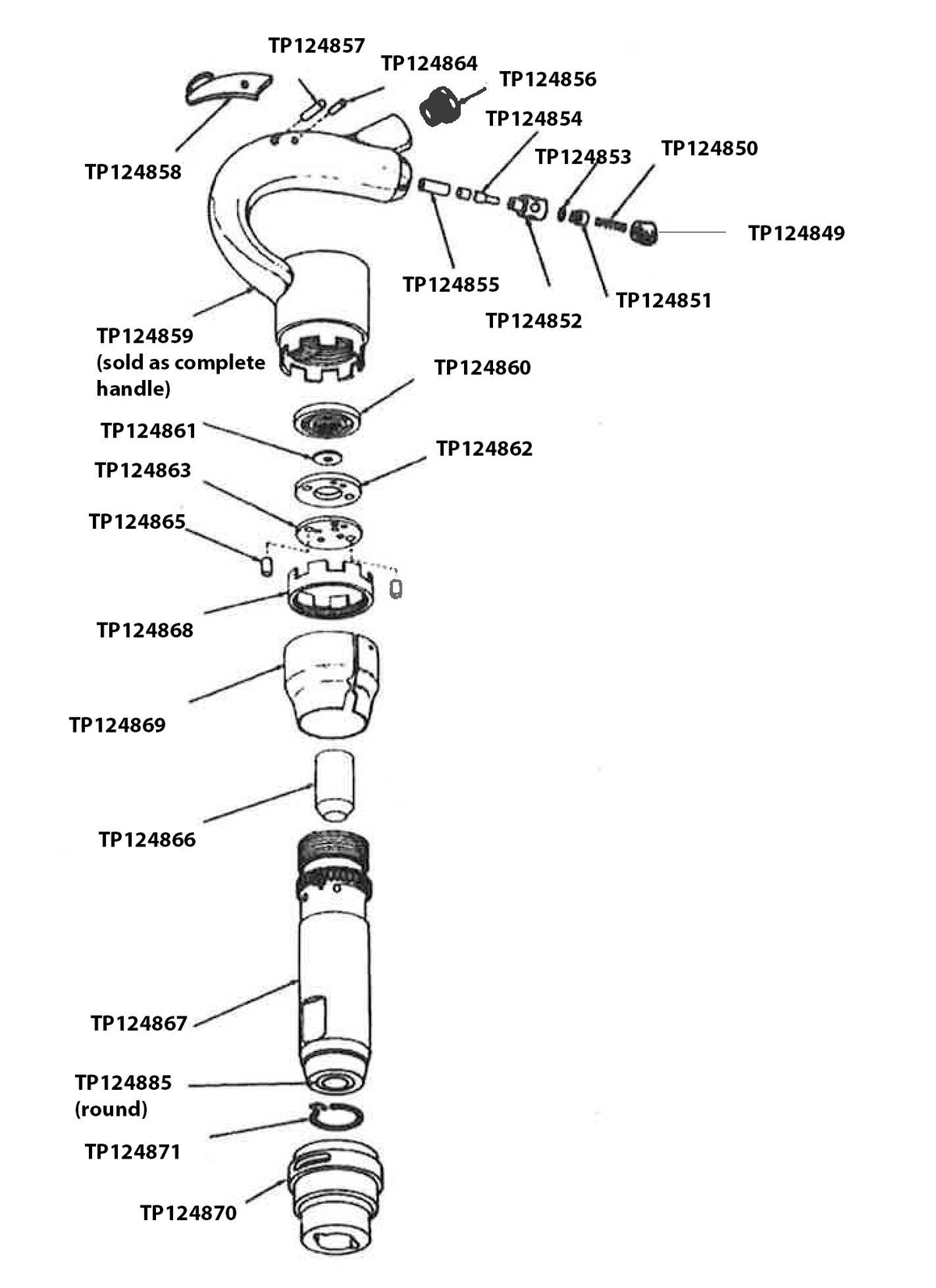

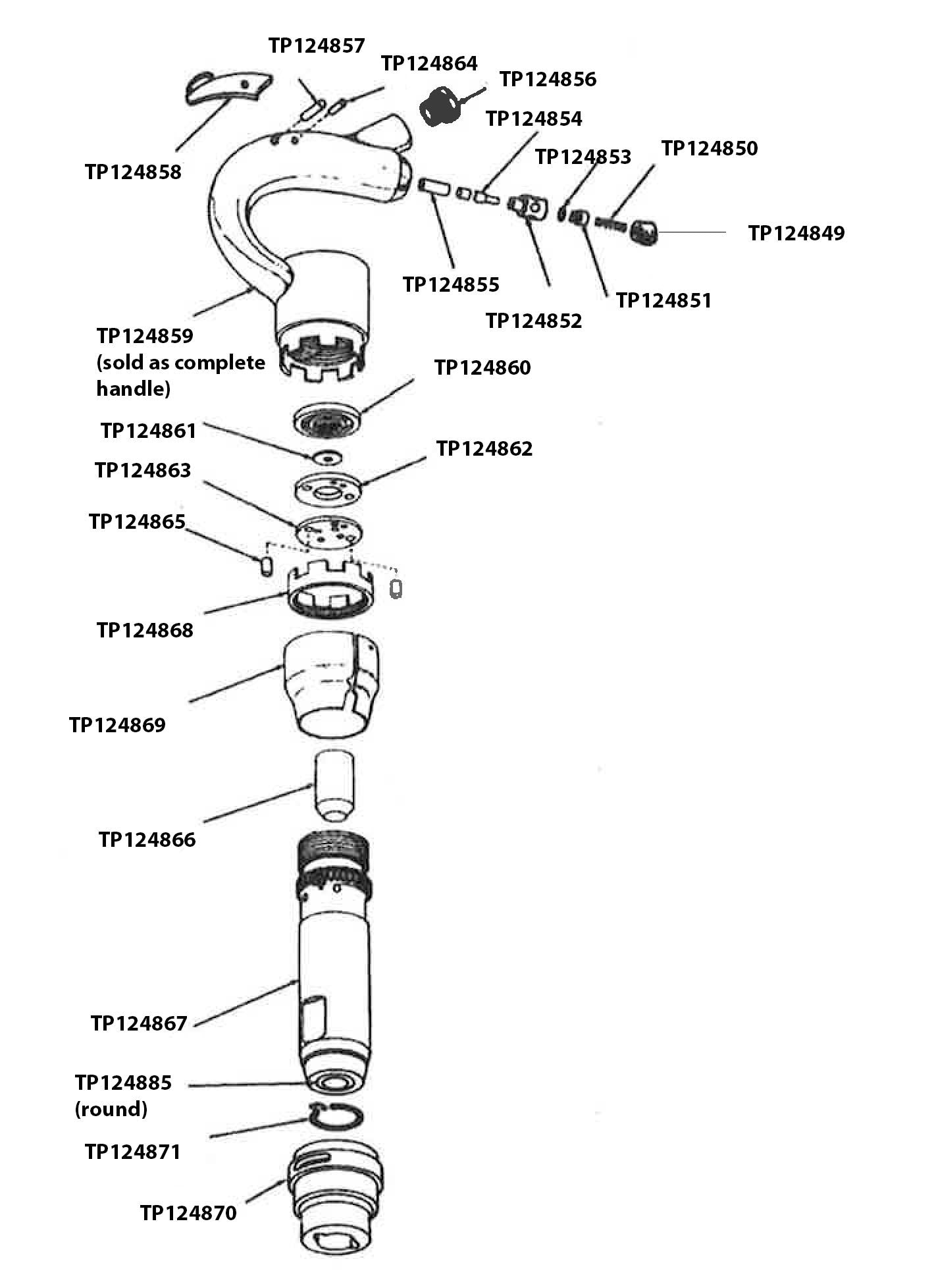

Texas Pneumatic CP 9362 exploded parts diagram. Use the diagram to identify the part you need, then select it from the parts list below.

Texas Pneumatic CP 9362 parts diagram

Repair Parts

Part # Description Price
TP124849 Throttle Valve Plug $13.18
TP124850 Throttle Valve Spring $3.69
TP124851 Throttle Valve W/ “O” Ring $17.32
TP124852 Throttle Valve Bushing $25.28
TP124853 Throttle Valve “O” Ring $2.28
TP124854 Throttle Valve Push Pin $13.97
TP124855 Push Pin Bushing $16.97
TP124856 Permanent Bushing $24.24
TP124857 Throttle Lever Pin $4.26
TP124858 Throttle Lever $42.18
TP124859 Forged Handle Complete $506.41
TP124860 Upper Valve Case Lif $72.05
TP124861 Valve $15.10
TP124862 Valve Case $32.40
TP124863 Lower Valve Case Lid $51.84
TP124864 Stop Pin $4.26
TP124865 Dowel Pin $5.51
TP124866 1-2″ Stroke Piston $58.98
TP124867 2″ Stroke Barrel $393.80
TP124868 Lock $58.45
TP124869 Lock Shield $46.05
TP124870 Retainer $79.56
TP124871 Retainer Spring $3.54
TP124885 Front End Bushing (Round) $34.14
