Texas Pneumatic CP 9361 Repair Parts & Diagram

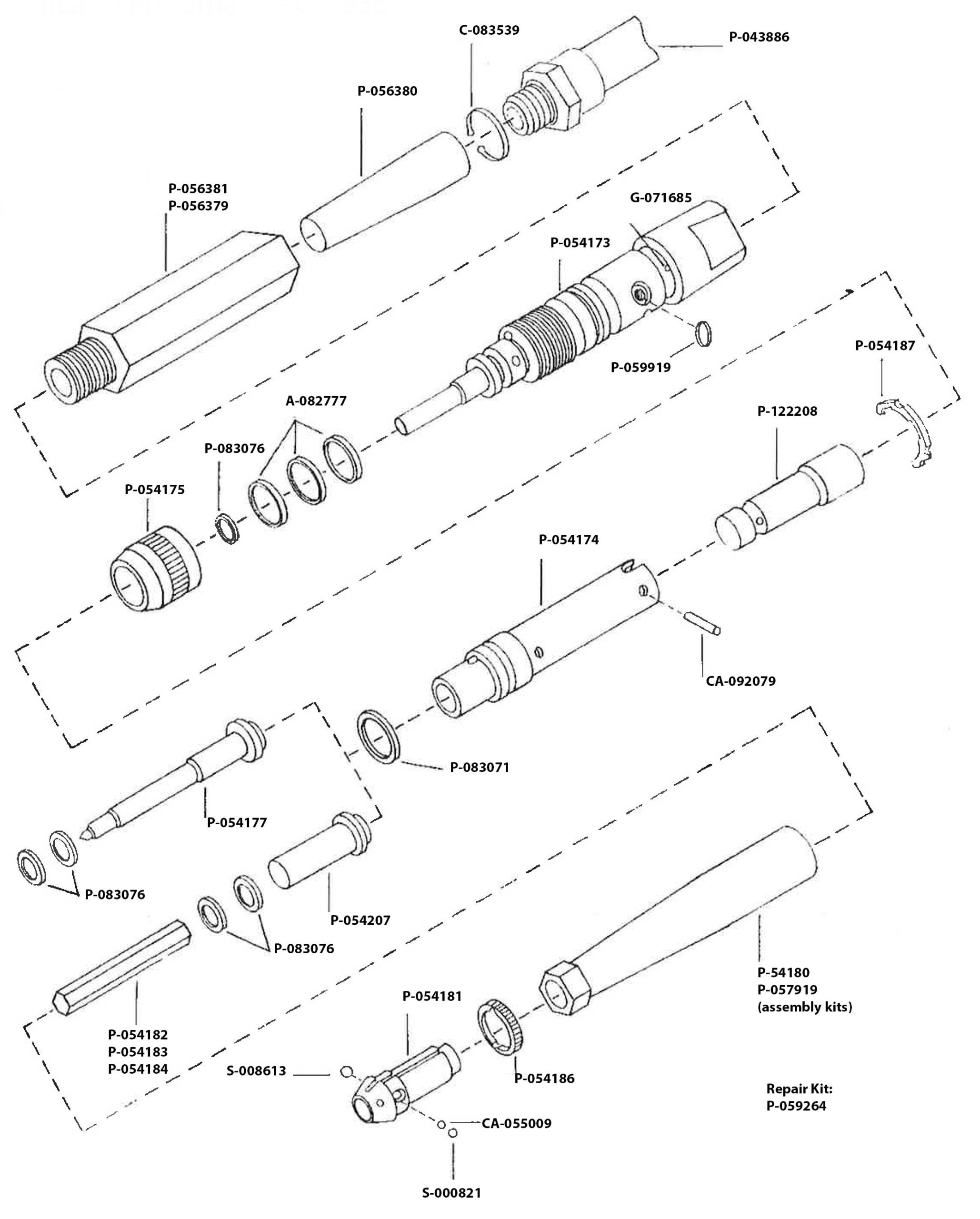

CP 9361 Parts Diagram

Texas Pneumatic CP 9361 exploded parts diagram. Use the diagram to identify the part you need, then select it from the parts list below.

Repair parts for Chicago Pneumatic CP 9361
Part #	Description	Price
A-082777	A-082777 – “O” Ring	$3.98
C-083539	C-083539 – Retaining Ring	$3.01
CA-055009	CA-055009 – “O” Ring	$2.70
CA-092079	CA-092079 – Roll Pin	$3.01
G-071685	G-071685 – Roll Pin	$3.01
P-043886	P-043886 – Air Line	$54.98
P-054173	P-054173 – Inlet	$179.13
P-054174	P-054174 – Cylinder	$125.24
P-054175	P-054175 – Valve Sleeve	$118.98
P-054177	P-054177 – Stylus For CP-9361 Scribe	$38.04
P-054180	P-054180 – Cylinder	$146.55
P-054181	P-054181 – Bushing Accessory	$92.91
P-054182	P-054182 – Round Nose Chisel (Air Scribe)	$26.63
P-054183	P-054183 – 1/4″ Flat Chisel (Air Scribe)	$21.09
P-054184	P-054184 – Blank Chisel (Air Scribe)	$17.45
P-054186	P-054186 – Ball Lock Ring	$55.27
P-054187	P-054187 – Retaining Ring (2 / Tool)	$3.01
P-054207	P-054207 – Anvil	$26.19
P-056379	P-056379 – Air Filter Body	$64.46
P-056380	P-056380 – Air Filter Cartridge	$17.32
P-056381	P-056381 – Air Filter Assembly	$64.46
P-057919	P-057919 – Retainer Assembly (Bushing Accessory Assembly & Cylinder Sleeve)	$202.04
P-059264	P-059264 – Air Scribe Repair Kit	$48.98
P-083071	P-083071 – O Ring (011)	$2.28
P-083076	P-083076 – “O” Ring	$1.00
P-122208	P-122208 – Piston	$65.05
S-000821	S-000821 – Ball	$3.01
S-008613	S-008613 – Ball	$3.30
