Texas Pneumatic CP 9356 Chicago Pneumatic Repair Parts

TPT-manufactured compatible replacement parts for Chicago Pneumatic CP 9356.

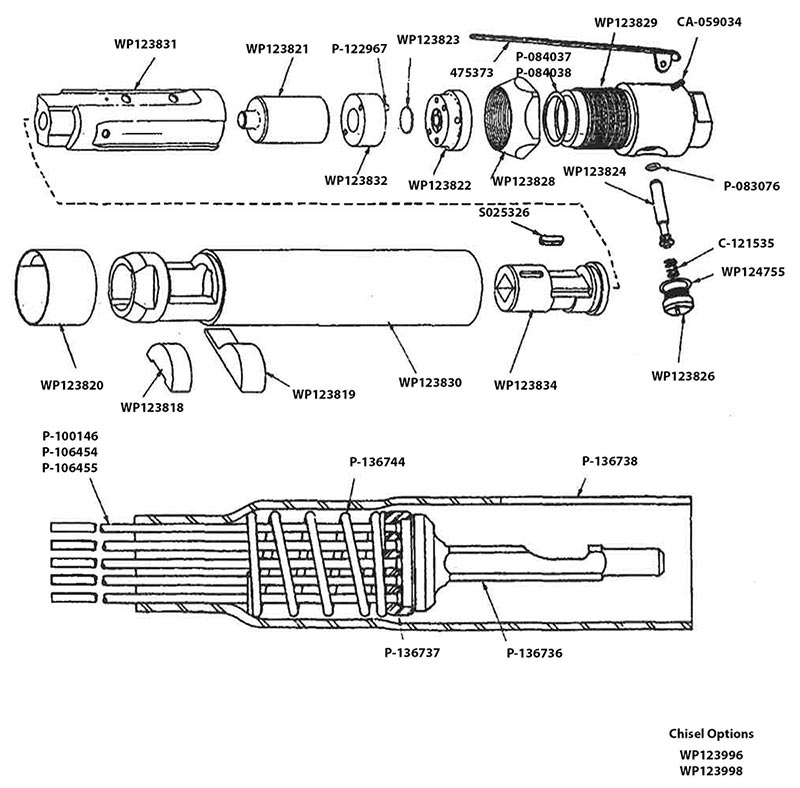

CP 9356 Parts Diagram

Texas Pneumatic CP 9356 exploded parts diagram. Use the diagram to identify the part you need, then select it from the parts list below.

Texas Pneumatic CP 9356 parts diagram

Repair Parts

Part # Description Price
475373 Throttle Lever $32.84
C-121535 Throttle Valve Spring $1.00
CA-059034 Throttle Lever Pin $1.00
P-083076 “O” Ring $1.00
P-100146 7″ X .125″ Needle Set (19) $18.13
P-106454 7″ Stainless Steel Needle $4.16
P-106455 7″ Beryllium Copper Needle $12.89
P-122967 Valve Block Dowel Pin $2.28
P-136736 Needle Driver $58.57
P-136737 Needle Holder $42.12
P-136738 Round Needle Tube $81.10
P-136744 Needle Spring $5.68
S-025326 Tool Nose Key $3.01
WP123818 Retainer Buffer $6.11
WP123819 Retainer $21.55
WP123820 Retainer Clip $7.67
WP123821 Plunger $23.85
WP123822 Valve Block Button $37.54
WP123823 Flutter Valve $8.70
WP123824 Throttle Valve $12.75
WP123826 Throttle Valve Cap $7.10
WP123828 Backhead Lock Ring $27.98
WP123829 Lever Type Backhead $73.60
WP123830 Scaler Barrel $131.98
WP123831 Cylinder Sleeve $82.01
WP123832 Valve Block $44.12
WP123834 Tool Nose $38.89
WP123996 7-1/2″ Flat Chisel (3/4″ W) $19.02
WP123998 7″ Flat Chisel (1-3/8″ W) $20.22
WP124755 Throttle Valve Cap Gasket $1.00
P-084037 Metallic Shim (.005) $1.04
P-084038 Metallic Shim (.010) $0.64
