CP 4689 Parts Diagram

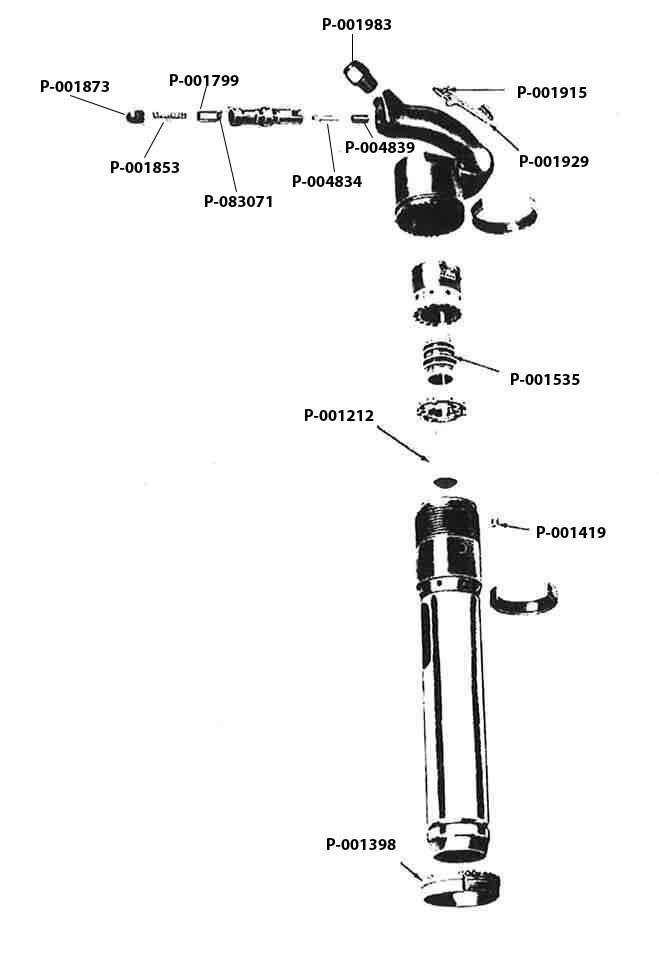

Texas Pneumatic CP 4689 exploded parts diagram. Use the diagram to identify the part you need, then select it from the parts list below.
Repair Parts
| Part # | Description | Price |
|---|---|---|
| P-001212 | P-001212 – 2 1/2″ Piston (CP 50,60,80,90 Riveter) | $59.09 |
| P-001398 | P-001398 – Lock Collar | $119.48 |
| P-001419 | P-001419 – Lock Collar Key (CP 50, 60, 80, 90 Riveter) | $32.21 |
| P-001535 | P-001535 – Automatic Valve (CP 80,90,60,50) | $248.57 |
| P-001799 | P-001799 – Throttle Valve W/ “O” Ring | $35.63 |
| P-001853 | P-001853 – Throttle Valve Spring | $2.70 |
| P-001873 | P-001873 – Throttle Valve Plug | $13.25 |
| P-001915 | P-001915 – Throttle Lever Pin (CP 50,60,80,90, Riveter) | $3.11 |
| P-001929 | P-001929 – Throttle Lever (50,60,80,90) | $102.69 |
| P-001983 | P-001983 – 1/2″ X 3/8″ Inlet Bushing | $11.50 |
| P-004834 | P-004834 – Throttle Push Pin (CP/Boyer Riveter) | $9.47 |
| P-004839 | P-004839 – Bushing | $15.45 |
| P-083071 | P-083071 – O Ring (011) | $2.28 |
