Texas Pneumatic CP 4181V Repair Parts & Diagram

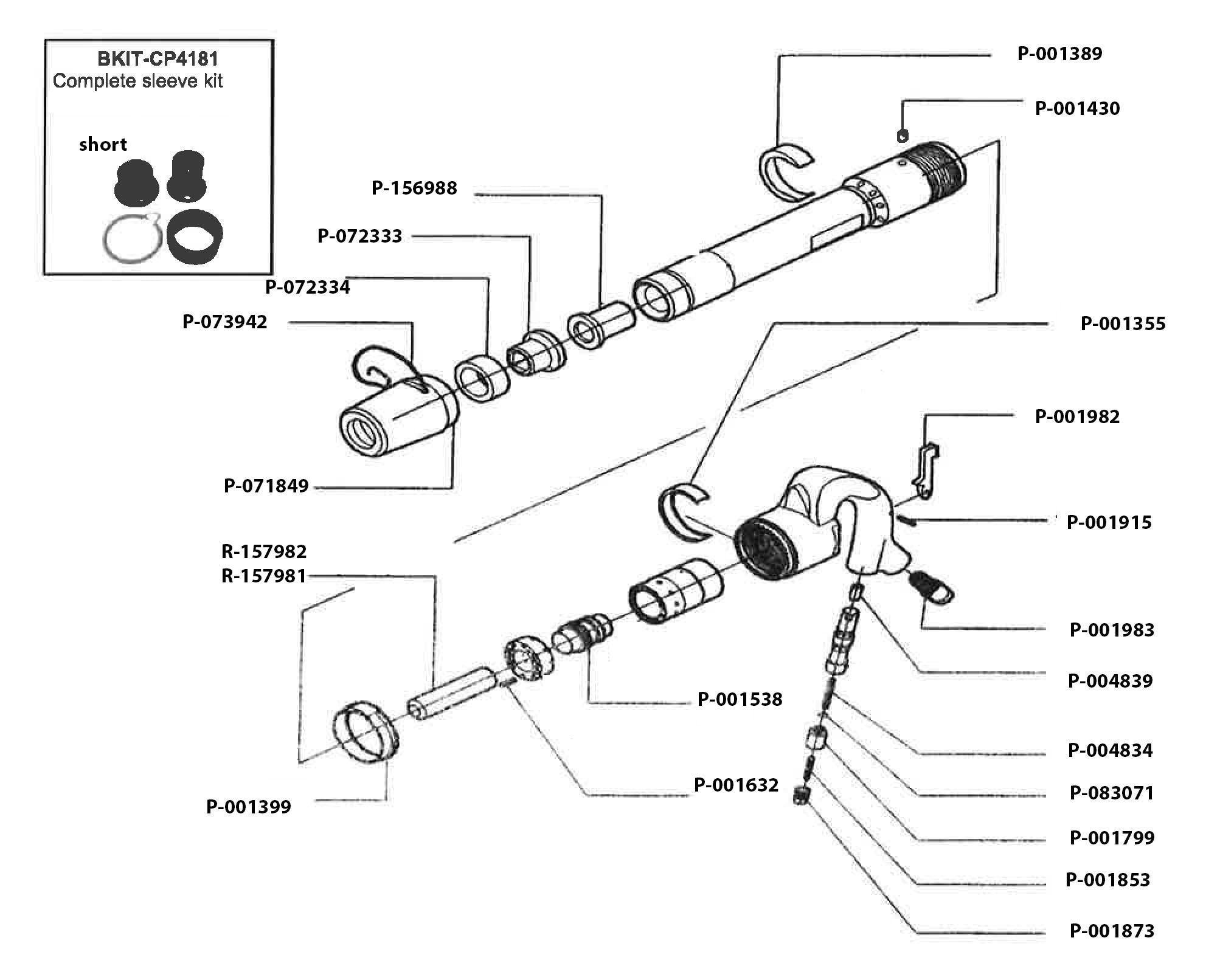

CP 4181V Parts Diagram

Texas Pneumatic CP 4181V exploded parts diagram. Use the diagram to identify the part you need, then select it from the parts list below.

Repair parts for Chicago Pneumatic CP 4181V
Part #	Description	Price
9091	9091 – 7/8″-24 Thread Swivel x 1/2″ Hose Barb Assembly	$43.03
9091SP	9091SP – 1/2″ Pipe Thread Swivel X 1/2″ Hose Barb Assembly	$43.03
BKIT-CP4181	BKIT-CP4181 – Accessories Kit For Rivet Buster	$112.53
P-001355	P-001355 – Lock Clip	$45.93
P-001389	P-001389 – Exhaust Deflector For CP 4181 RB	$41.21
P-001399	P-001399 – Lock Collar	$143.42
P-001430	P-001430 – Lock Key (CP 11X)	$17.11
P-001538	P-001538 – Automatic Valve (CP 11X-81X)	$209.85
P-001632	P-001632 – Pin	$2.70
P-001799	P-001799 – Throttle Valve W/ “O” Ring	$35.63
P-001853	P-001853 – Throttle Valve Spring	$2.70
P-001873	P-001873 – Throttle Valve Plug	$13.25
P-001915	P-001915 – Throttle Lever Pin (CP 50,60,80,90, Riveter)	$3.11
P-001982	P-001982 – Throttle Lever (CP 11X)	$74.06
P-001983	P-001983 – 1/2″ X 3/8″ Inlet Bushing	$11.50
P-004834	P-004834 – Throttle Push Pin (CP/Boyer Riveter)	$9.47
P-004839	P-004839 – Bushing	$15.45
P-071849	P-071849 – Jumbo Retainer	$138.15
P-072333	P-072333 – Lower Sleeve	$32.59
P-072334	P-072334 – Rubber Bumper – Black	$8.62
P-073942	P-073942 – Retainer Spring For RB	$4.62
P-083071	P-083071 – O Ring (011)	$2.28
P-156988	P-156988 – Upper Sleeve -Short	$26.89
R-157981	R-157981 – Piston	$77.44
R-157982	R-157982 – Piston	$75.21
