Texas Pneumatic CP 4181A Repair Parts & Diagram

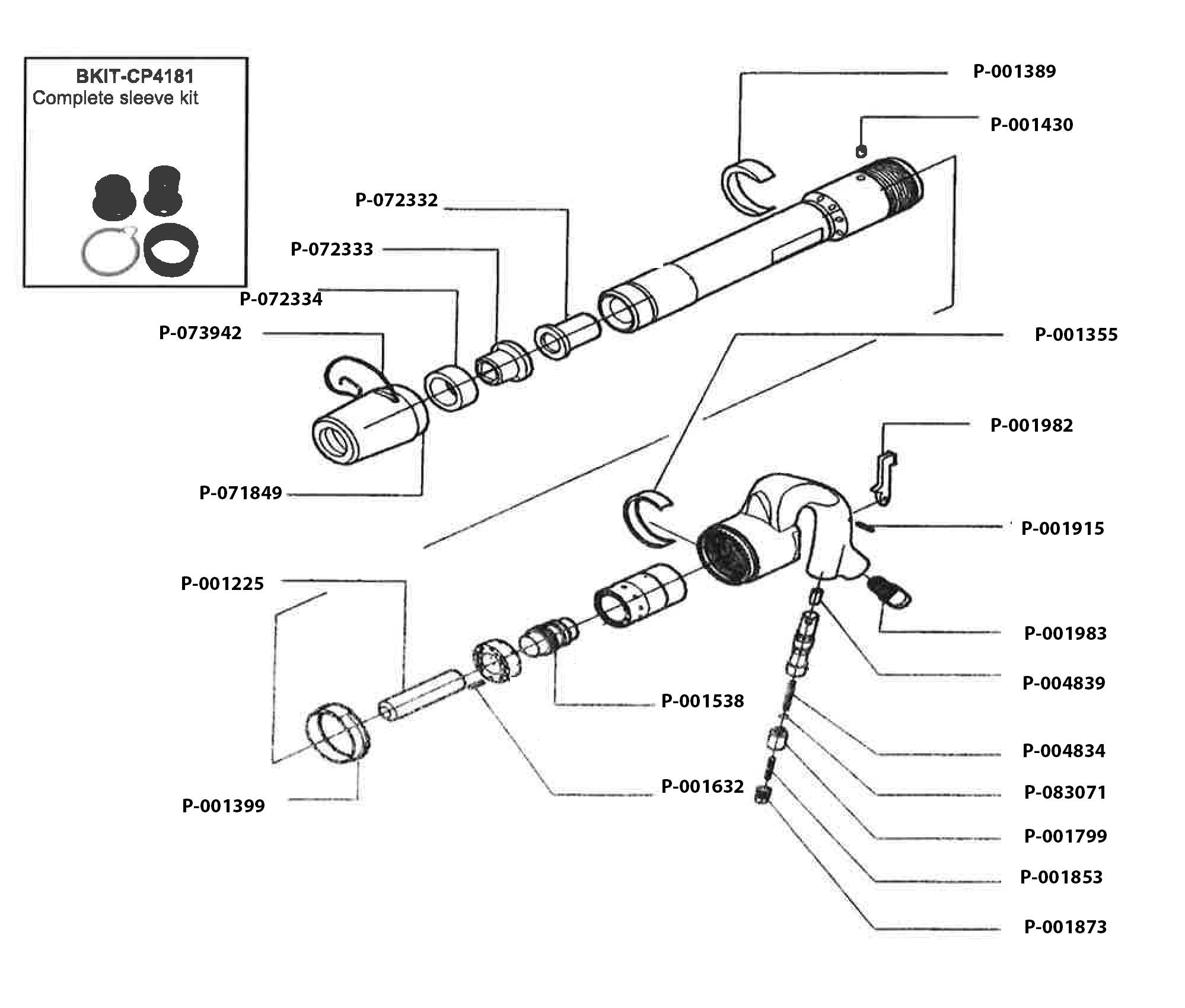

CP 4181A Parts Diagram

Texas Pneumatic CP 4181A exploded parts diagram. Use the diagram to identify the part you need, then select it from the parts list below.

Repair parts for Chicago Pneumatic CP 4181A
Part #	Description	Price
BKIT-CP4181	BKIT-CP4181 – Accessories Kit For Rivet Buster	$112.53
P-001225	P-001225 – Piston (CP 8X, 3″Oal)	$62.19
P-001355	P-001355 – Lock Clip	$45.93
P-001389	P-001389 – Exhaust Deflector For CP 4181 RB	$41.21
P-001399	P-001399 – Lock Collar	$143.42
P-001430	P-001430 – Lock Key (CP 11X)	$17.11
P-001538	P-001538 – Automatic Valve (CP 11X-81X)	$209.85
P-001632	P-001632 – Pin	$2.70
P-001799	P-001799 – Throttle Valve W/ “O” Ring	$35.63
P-001853	P-001853 – Throttle Valve Spring	$2.70
P-001873	P-001873 – Throttle Valve Plug	$13.25
P-001915	P-001915 – Throttle Lever Pin (CP 50,60,80,90, Riveter)	$3.11
P-001982	P-001982 – Throttle Lever (CP 11X)	$74.06
P-001983	P-001983 – 1/2″ X 3/8″ Inlet Bushing	$11.50
P-004834	P-004834 – Throttle Push Pin (CP/Boyer Riveter)	$9.47
P-004839	P-004839 – Bushing	$15.45
P-071849	P-071849 – Jumbo Retainer	$138.15
P-072332	P-072332 – Upper Sleeve	$26.89
P-072333	P-072333 – Lower Sleeve	$32.59
P-072334	P-072334 – Rubber Bumper – Black	$8.62
P-073942	P-073942 – Retainer Spring For RB	$4.62
P-083071	P-083071 – O Ring (011)	$2.28
