CP 4180 Parts Diagram

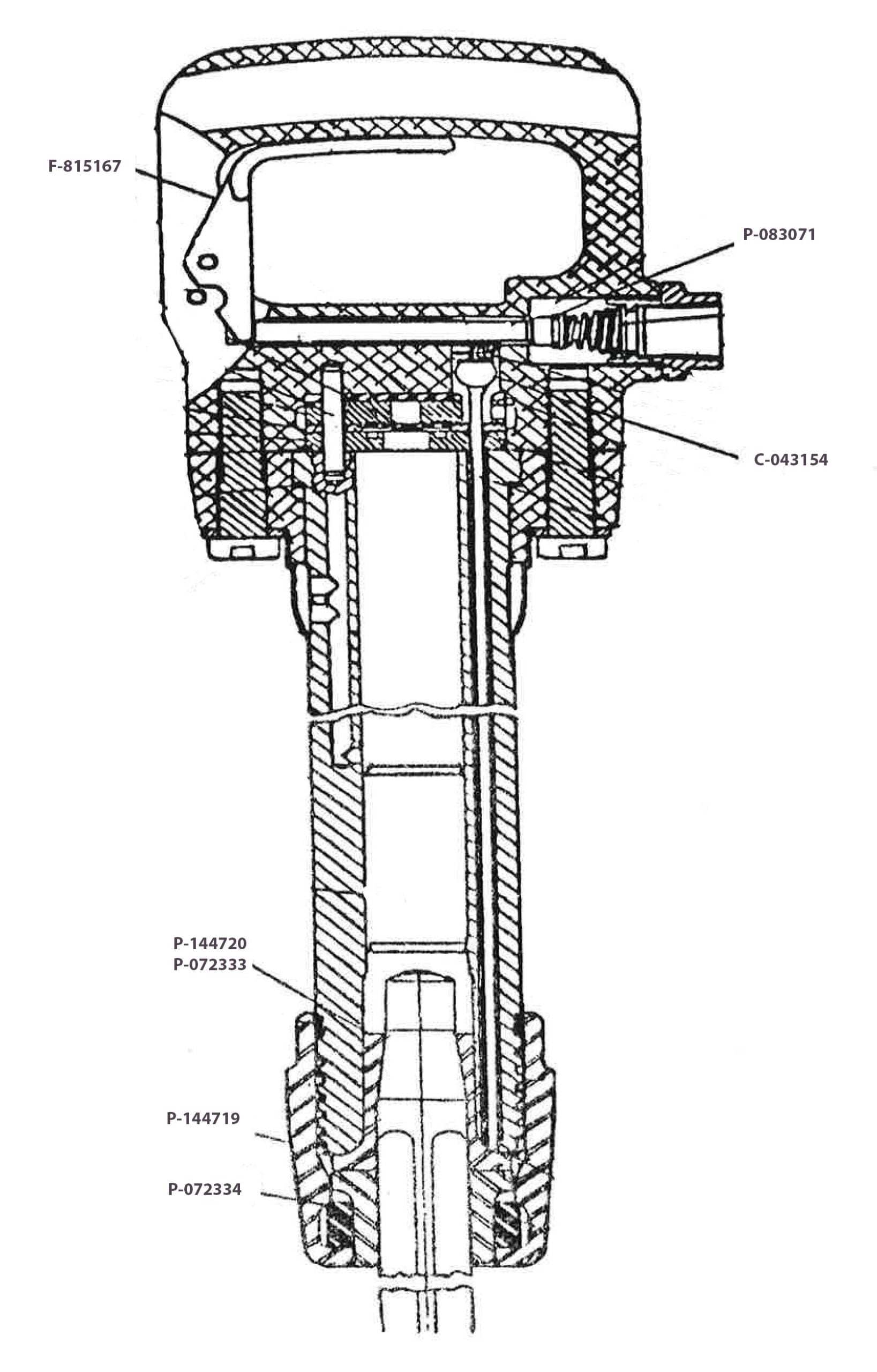

Texas Pneumatic CP 4180 exploded parts diagram. Use the diagram to identify the part you need, then select it from the parts list below.
Repair Parts
| Part # | Description | Price |
|---|---|---|
| C-043154 | C-043154 – Retainer Ball | $2.28 |
| F-815167 | F-815167 – Lever Inside Throttle | $108.46 |
| P-072333 | P-072333 – Lower Sleeve | $32.59 |
| P-072334 | P-072334 – Rubber Bumper – Black | $8.62 |
| P-083071 | P-083071 – O Ring (011) | $2.28 |
| P-144719 | P-144719 – Retainer | $206.35 |
| P-144720 | P-144720 – Jumbo Rivet Buster Upper Sleeve-Wide Lip | $26.89 |
