Texas Pneumatic CP 4136 Chicago Pneumatic Repair Parts

TPT-manufactured compatible replacement parts for Chicago Pneumatic CP 4136. These are not genuine Chicago Pneumatic OEM parts.

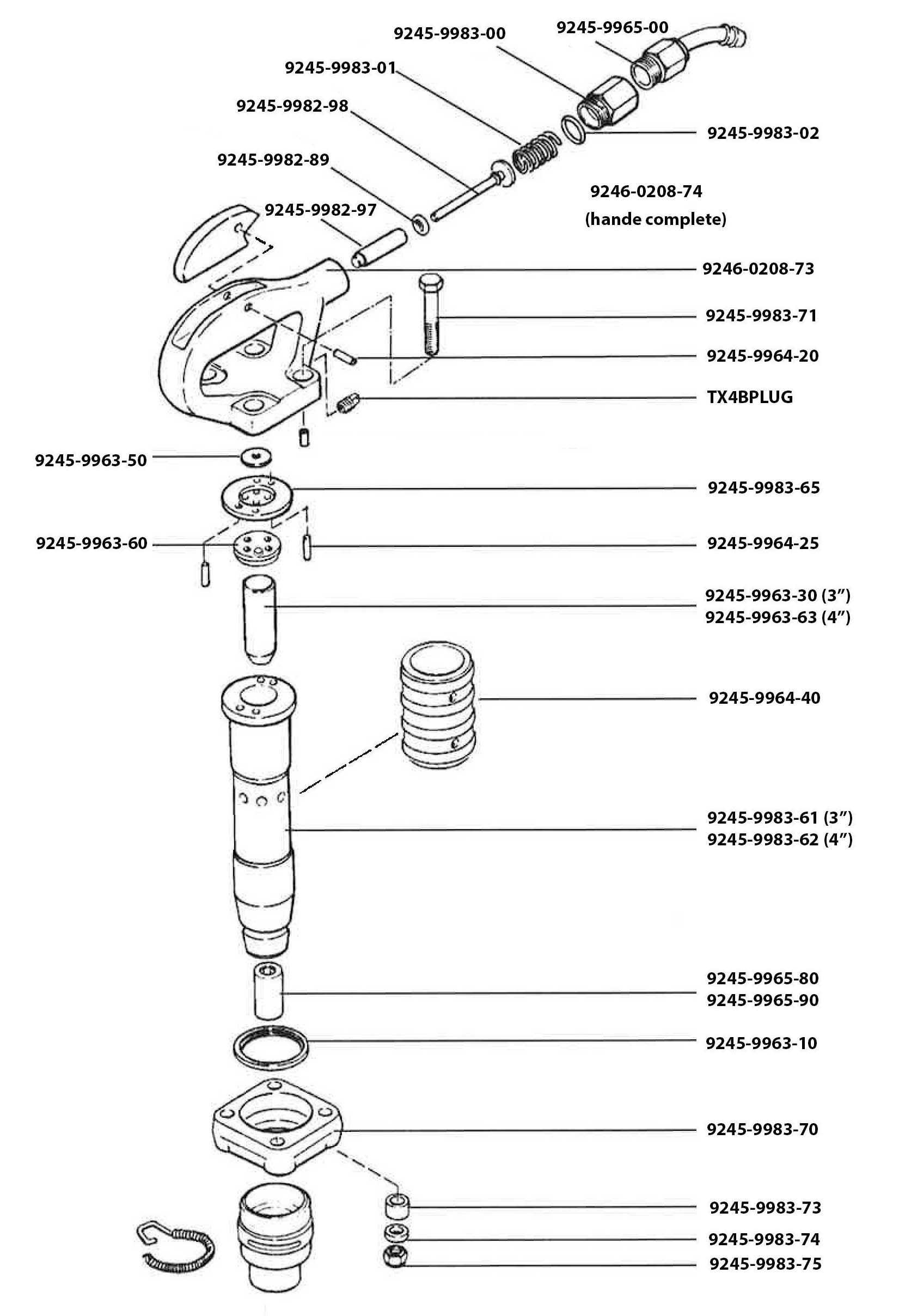

CP 4136 Parts Diagram

Texas Pneumatic CP 4136 exploded parts diagram. Use the diagram to identify the part you need, then select it from the parts list below.

Texas Pneumatic CP 4136 parts diagram

Repair Parts

Part # Description Price
9245-9963-10 Absorber Ring $15.59
9245-9963-10 Absorber Ring $15.59
9245-9963-30 3″ Stroke Piston $60.67
9245-9963-30 3″ Stroke Piston $60.67
9245-9963-50 Valve $15.10
9245-9963-50 Valve $15.10
9245-9963-60 Valve Seat Bumper $19.02
9245-9963-60 Valve Seat Bumper $19.02
9245-9963-63 4″ Stroke Piston $62.48
9245-9963-63 4″ Stroke Piston $62.48
9245-9964-20 Throttle Lever Pin $5.33
9245-9964-20 Throttle Lever Pin $5.33
9245-9964-25 Valve Locator Pin (2 Per Tool) $10.91
9245-9964-25 Valve Locator Pin (2 Per Tool) $10.91
9245-9964-40 Exhaust Deflector $69.22
9245-9964-40 Exhaust Deflector $69.22
9245-9965-00 7/8″-24 Thread Swivel X 1/2″ Hose Barb Assembly $43.03
9245-9965-00 7/8″-24 Thread Swivel X 1/2″ Hose Barb Assembly $43.03
9245-9965-80 Round Front End Bushing $34.14
9245-9965-80 Round Front End Bushing $34.14
9245-9965-90 Hex Front End Bushing $35.76
9245-9965-90 Hex Front End Bushing $35.76
9245-9982-97 Throttle Valve Stem Bushing $32.84
9245-9982-97 Throttle Valve Stem Bushing $32.84
9245-9982-98 Throttle Valve W/ “O” Ring $49.82
9245-9982-98 Throttle Valve W/ “O” Ring $49.82
9245-9983-00 7/8″-24 X 3/4″-12 Nps Inlet Bushing (Old Style) $36.99
9245-9983-00 7/8″-24 X 3/4″-12 Nps Inlet Bushing (Old Style) $36.99
9245-9983-01 Throttle Valve Spring $5.85
9245-9983-01 Throttle Valve Spring $5.85
9245-9983-02 “O” Ring $3.30
9245-9983-02 “O” Ring $3.30
9245-9983-61 3″ Stroke Barrel $345.58
9245-9983-61 3″ Stroke Barrel $345.58
9245-9983-62 4″ Stroke Barrel $355.10
9245-9983-62 4″ Stroke Barrel $355.10
9245-9983-65 Valve Seat $69.16
9245-9983-65 Valve Seat $69.16
9245-9983-70 Barrel Flange $139.63
9245-9983-70 Barrel Flange $139.63
9245-9983-71 Handle Bolts (4 Per Tool) Grade 8 $12.75
9245-9983-71 Handle Bolts (4 Per Tool) Grade 8 $12.75
9245-9983-73 Vibrator Spacer $9.40
9245-9983-73 Vibrator Spacer $9.40
9245-9983-74 Steel Handle Bolt Spacer $13.61
9245-9983-74 Steel Handle Bolt Spacer $13.61
9245-9983-75 Nyloc Handle Bolt Nut $4.53
9245-9983-75 Nyloc Handle Bolt Nut $4.53
9246-0208-73 Handle Bare $298.06
9246-0208-73 Handle Bare $298.06
9246-0208-74 Handle Complete $421.29
9246-0208-74 Handle Complete $421.29
TX4BPLUG Handle Plug $6.04
TX4BPLUG Handle Plug $6.04
