Texas Pneumatic CP 4132 Chicago Pneumatic Repair Parts

TPT-manufactured compatible replacement parts for Chicago Pneumatic CP 4132. These are not genuine Chicago Pneumatic OEM parts.

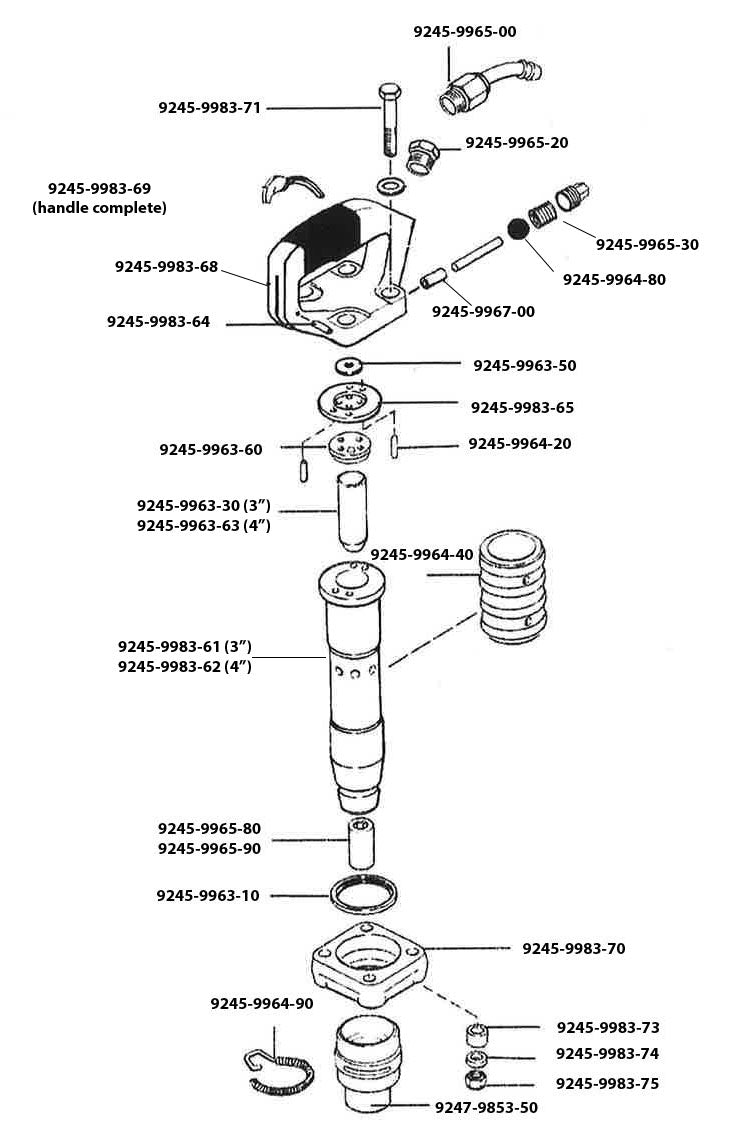

CP 4132 Parts Diagram

Texas Pneumatic CP 4132 exploded parts diagram. Use the diagram to identify the part you need, then select it from the parts list below.

Texas Pneumatic CP 4132 parts diagram

Repair Parts

Part # Description Price
9245-9963-10 Absorber Ring $15.59
9245-9963-10 Absorber Ring $15.59
9245-9963-30 3″ Stroke Piston $60.67
9245-9963-30 3″ Stroke Piston $60.67
9245-9963-50 Valve $15.10
9245-9963-50 Valve $15.10
9245-9963-60 Valve Seat Bumper $19.02
9245-9963-60 Valve Seat Bumper $19.02
9245-9963-63 4″ Stroke Piston $62.48
9245-9963-63 4″ Stroke Piston $62.48
9245-9964-40 Exhaust Deflector $69.22
9245-9964-40 Exhaust Deflector $69.22
9245-9964-80 Throttle Ball (New Style) $8.07
9245-9964-80 Throttle Ball (New Style) $8.07
9245-9964-90 Lock Spring $3.54
9245-9964-90 Lock Spring $3.54
9245-9965-00 7/8″-24 Thread Swivel X 1/2″ Hose Barb Assembly $43.03
9245-9965-00 7/8″-24 Thread Swivel X 1/2″ Hose Barb Assembly $43.03
9245-9965-20 7/8″ -24 X 3/4″ -14 Nps Inlet Bushing $36.99
9245-9965-20 7/8″ -24 X 3/4″ -14 Nps Inlet Bushing $36.99
9245-9965-30 Throttle Ball Spring (New Style) $6.44
9245-9965-30 Throttle Ball Spring (New Style) $6.44
9245-9965-80 Round Front End Bushing $34.14
9245-9965-80 Round Front End Bushing $34.14
9245-9965-90 Hex Front End Bushing $35.76
9245-9965-90 Hex Front End Bushing $35.76
9245-9967-00 Throttle Valve Pin Bushing $27.08
9245-9967-00 Throttle Valve Pin Bushing $27.08
9245-9983-61 3″ Stroke Barrel $345.58
9245-9983-61 3″ Stroke Barrel $345.58
9245-9983-62 4″ Stroke Barrel $355.10
9245-9983-62 4″ Stroke Barrel $355.10
9245-9983-64 Trigger Stop Pin $9.93
9245-9983-64 Trigger Stop Pin $9.93
9245-9983-65 Valve Seat $69.16
9245-9983-65 Valve Seat $69.16
9245-9983-68 Handle Bare $298.06
9245-9983-68 Handle Bare $298.06
9245-9983-69 Handle Complete $421.29
9245-9983-69 Handle Complete $421.29
9245-9983-70 Barrel Flange $139.63
9245-9983-70 Barrel Flange $139.63
9245-9983-71 Handle Bolts (4 Per Tool) Grade 8 $12.75
9245-9983-71 Handle Bolts (4 Per Tool) Grade 8 $12.75
9245-9983-73 Vibrator Spacer $9.40
9245-9983-73 Vibrator Spacer $9.40
9245-9983-74 Steel Handle Bolt Spacer $13.61
9245-9983-74 Steel Handle Bolt Spacer $13.61
9245-9983-75 Nyloc Handle Bolt Nut $4.53
9245-9983-75 Nyloc Handle Bolt Nut $4.53
9247-9853-50 Retainer $79.56
9247-9853-50 Retainer $79.56
