CP 4130 Parts Diagram

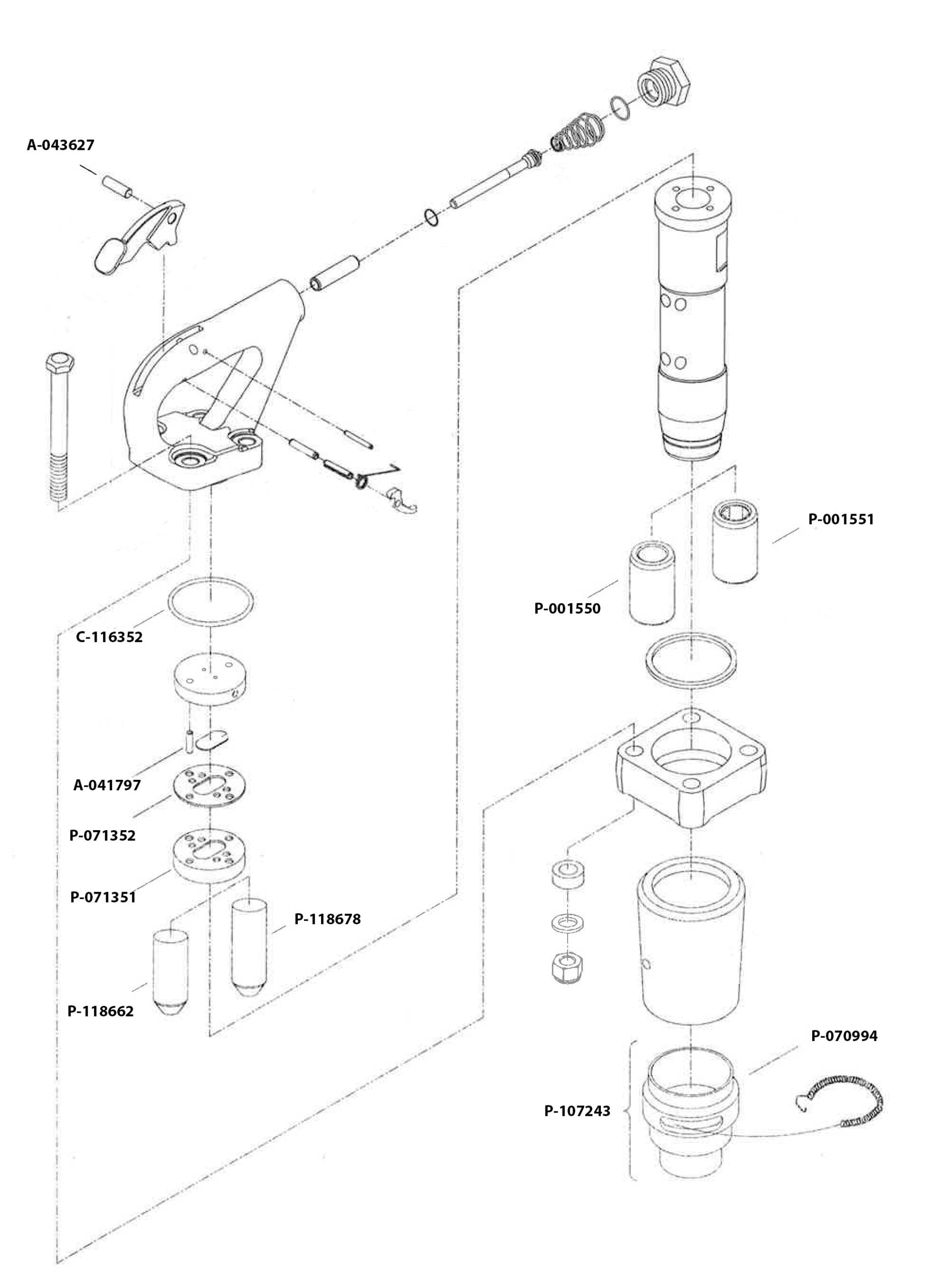

Texas Pneumatic CP 4130 exploded parts diagram. Use the diagram to identify the part you need, then select it from the parts list below.
Repair Parts
| Part # | Description | Price |
|---|---|---|
| A-041797 | A-041797 – (B) Dowel Pin | $4.98 |
| A-043627 | A-043627 – Throttle Lever Pin | $4.62 |
| C-116352 | C-116352 – “O” Ring | $12.46 |
| P-001550 | P-001550 – Chisel Bushing (Round) | $34.14 |
| P-001551 | P-001551 – Chisel Bushing (Hex) | $35.76 |
| P-070994 | P-070994 – Retainer Spring | $3.54 |
| P-071351 | P-071351 – Lower Valve Case Lid | $57.16 |
| P-071352 | P-071352 – Valve Case | $44.12 |
| P-107243 | P-107243 – Retainer (Oval Collar) | $79.56 |
| P-118662 | P-118662 – 2″ Stroke Piston | $52.37 |
| P-118678 | P-118678 – Piston 4 | $54.68 |
