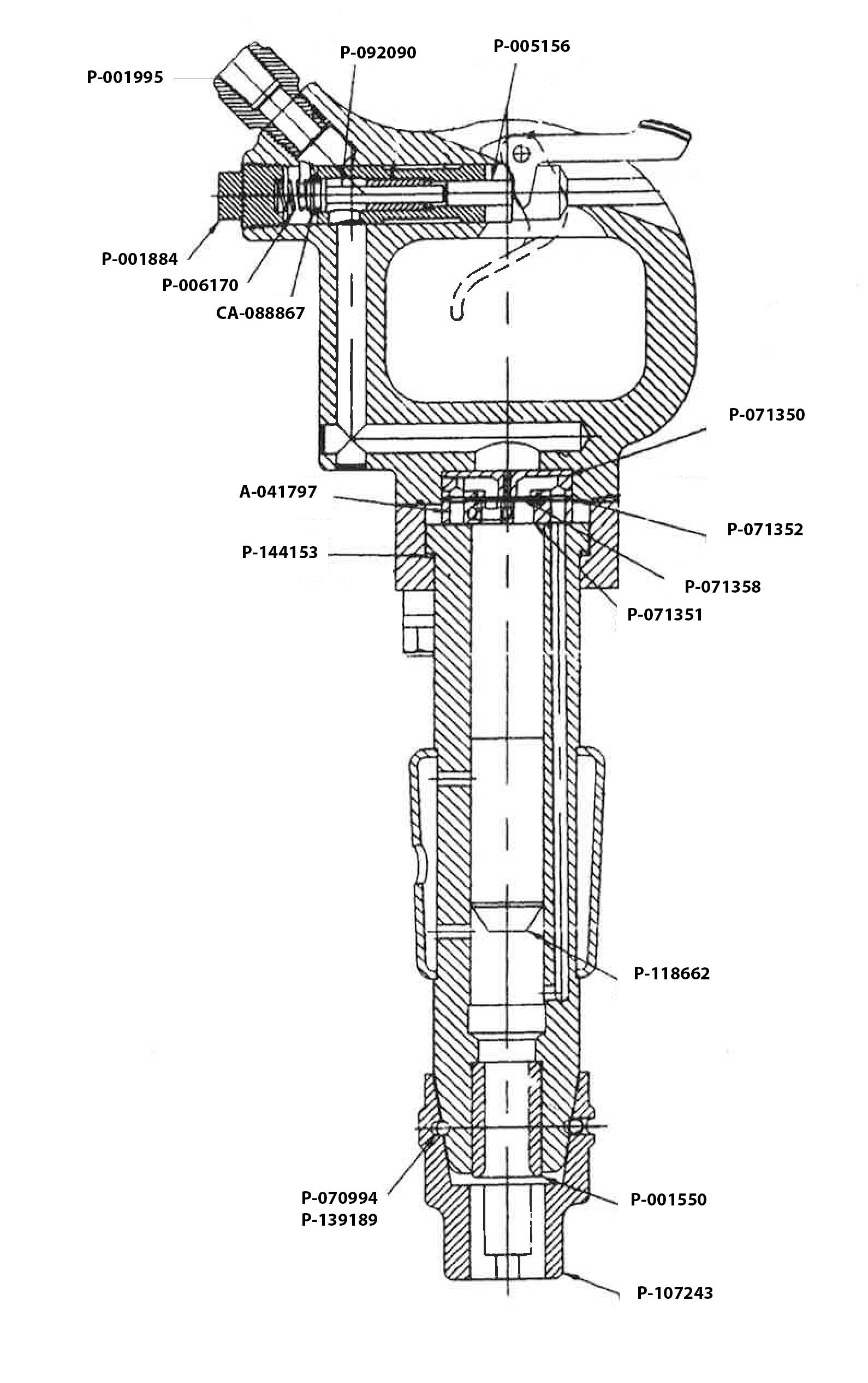

CP 4129 Parts Diagram
Texas Pneumatic CP 4129 exploded parts diagram. Use the diagram to identify the part you need, then select it from the parts list below.
Repair Parts
| Part # | Description | Price |
|---|---|---|
| A-041797 | A-041797 – (B) Dowel Pin | $4.98 |
| CA-088867 | CA-088867 – “O” Ring | $2.17 |
| P-001550 | P-001550 – Chisel Bushing (Round) | $34.14 |
| P-001884 | P-001884 – Plug | $24.57 |
| P-001995 | P-001995 – 1/2″ X 1/2″ Inlet Bushing | $11.50 |
| P-005156 | P-005156 – Pin | $16.49 |
| P-006170 | P-006170 – Spring | $6.27 |
| P-070994 | P-070994 – Retainer Spring | $3.54 |
| P-071350 | P-071350 – Upper Valve Case Lid | $60.15 |
| P-071351 | P-071351 – Lower Valve Case Lid | $57.16 |
| P-071352 | P-071352 – Valve Case | $44.12 |
| P-071358 | P-071358 – Valve | $16.49 |
| P-092090 | P-092090 – Throttle Valve | $91.55 |
| P-107243 | P-107243 – Retainer (Oval Collar) | $79.56 |
| P-118662 | P-118662 – 2″ Stroke Piston | $52.37 |
| P-139189 | P-139189 – Lock Spring | $3.54 |
| P-144153 | P-144153 – Absorber Ring | $15.59 |
