Texas Pneumatic CP 4125 Chicago Pneumatic Repair Parts

TPT-manufactured compatible replacement parts for Chicago Pneumatic CP 4125. These are not genuine Chicago Pneumatic OEM parts.

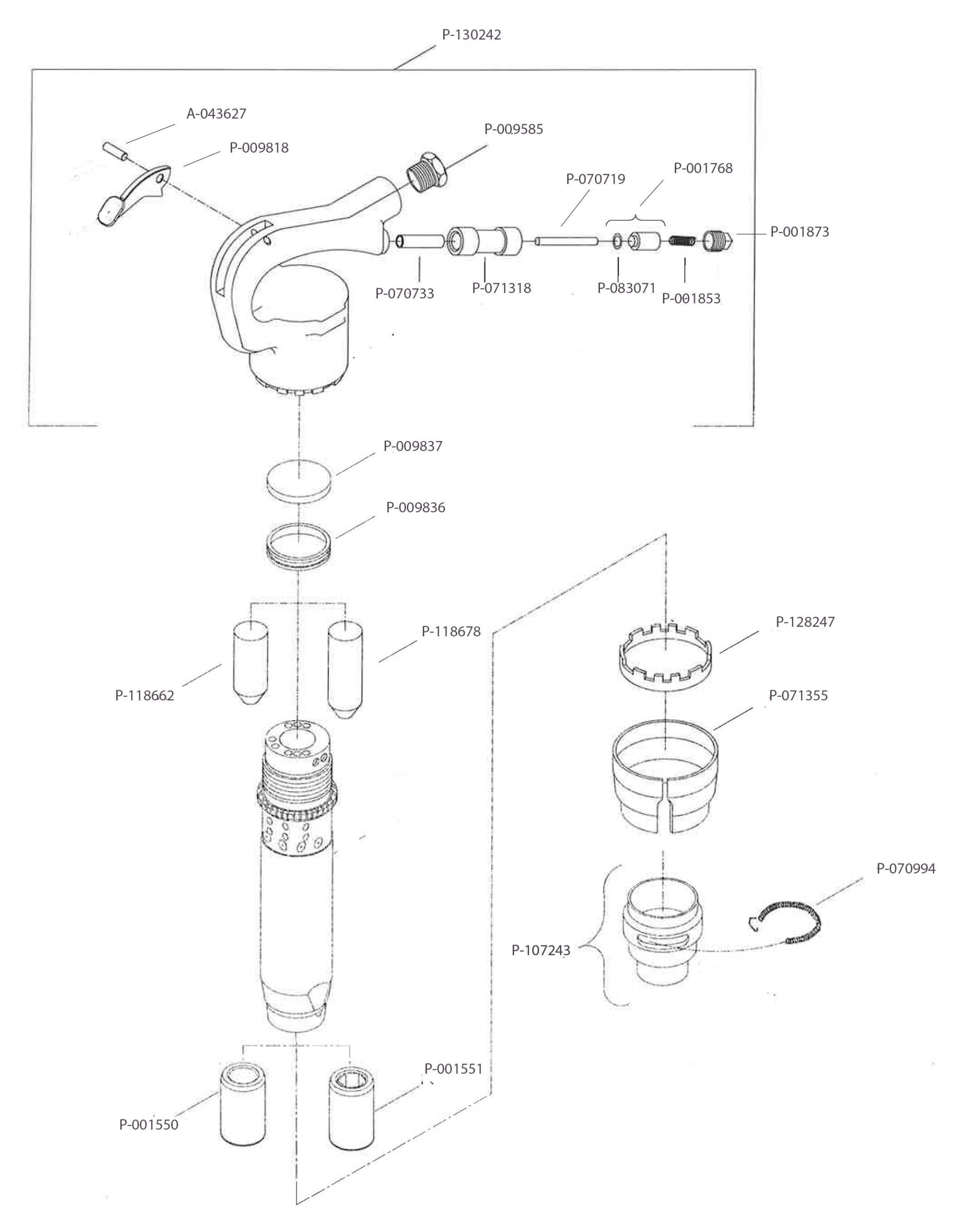

CP 4125 Parts Diagram

Texas Pneumatic CP 4125 exploded parts diagram. Use the diagram to identify the part you need, then select it from the parts list below.

Texas Pneumatic CP 4125 parts diagram

Repair Parts

Part # Description Price
A-043627 Throttle Lever Pin $4.62
P-001550 Chisel Bushing (Round) $34.14
P-001551 Chisel Bushing (Hex) $35.76
P-001768 Throttle Valve W/ “O” Ring $35.63
P-001853 Throttle Valve Spring $2.70
P-001873 Throttle Valve Plug $13.25
P-009585 Permanent Bushing $24.24
P-009818 Lever $69.51
P-009836 Main Valve (CP 0-4RV CP 4114) $134.35
P-009837 Valve Lid (CP 0-4 RV CP 4114) $83.89
P-070719 Throttle Valve Push Pin $12.17
P-070733 Push Pin Bushing $17.93
P-070994 Retainer Spring $3.54
P-071318 Tube Valve Body $50.47
P-071355 Lock Shield $61.67
P-083071 O Ring (011) $2.28
P-107243 Retainer (Oval Collar) $79.56
P-118662 2″ Stroke Piston $52.37
P-118678 Piston 4 $54.68
P-128247 Lock (CP 4125) $276.63
P-130242 Forged Handle Complete $506.41
