CP 4120 Parts Diagram

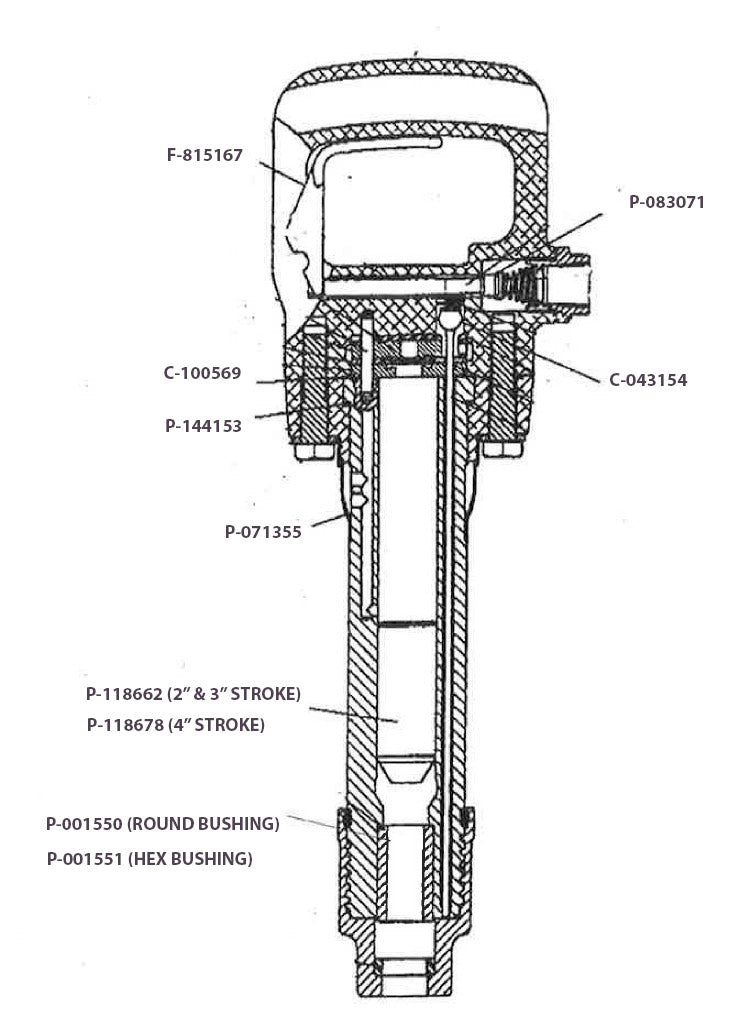

Texas Pneumatic CP 4120 exploded parts diagram. Use the diagram to identify the part you need, then select it from the parts list below.
Repair Parts
| Part # | Description | Price |
|---|---|---|
| C-043154 | C-043154 – Retainer Ball | $2.28 |
| C-100569 | C-100569 – “O” Ring | $6.11 |
| F-815167 | F-815167 – Lever Inside Throttle | $108.46 |
| P-001550 | P-001550 – Chisel Bushing (Round) | $34.14 |
| P-001551 | P-001551 – Chisel Bushing (Hex) | $35.76 |
| P-071355 | P-071355 – Lock Shield | $61.67 |
| P-083071 | P-083071 – O Ring (011) | $2.28 |
| P-118662 | P-118662 – 2″ Stroke Piston | $52.37 |
| P-118678 | P-118678 – Piston 4 | $54.68 |
| P-144153 | P-144153 – Absorber Ring | $15.59 |
