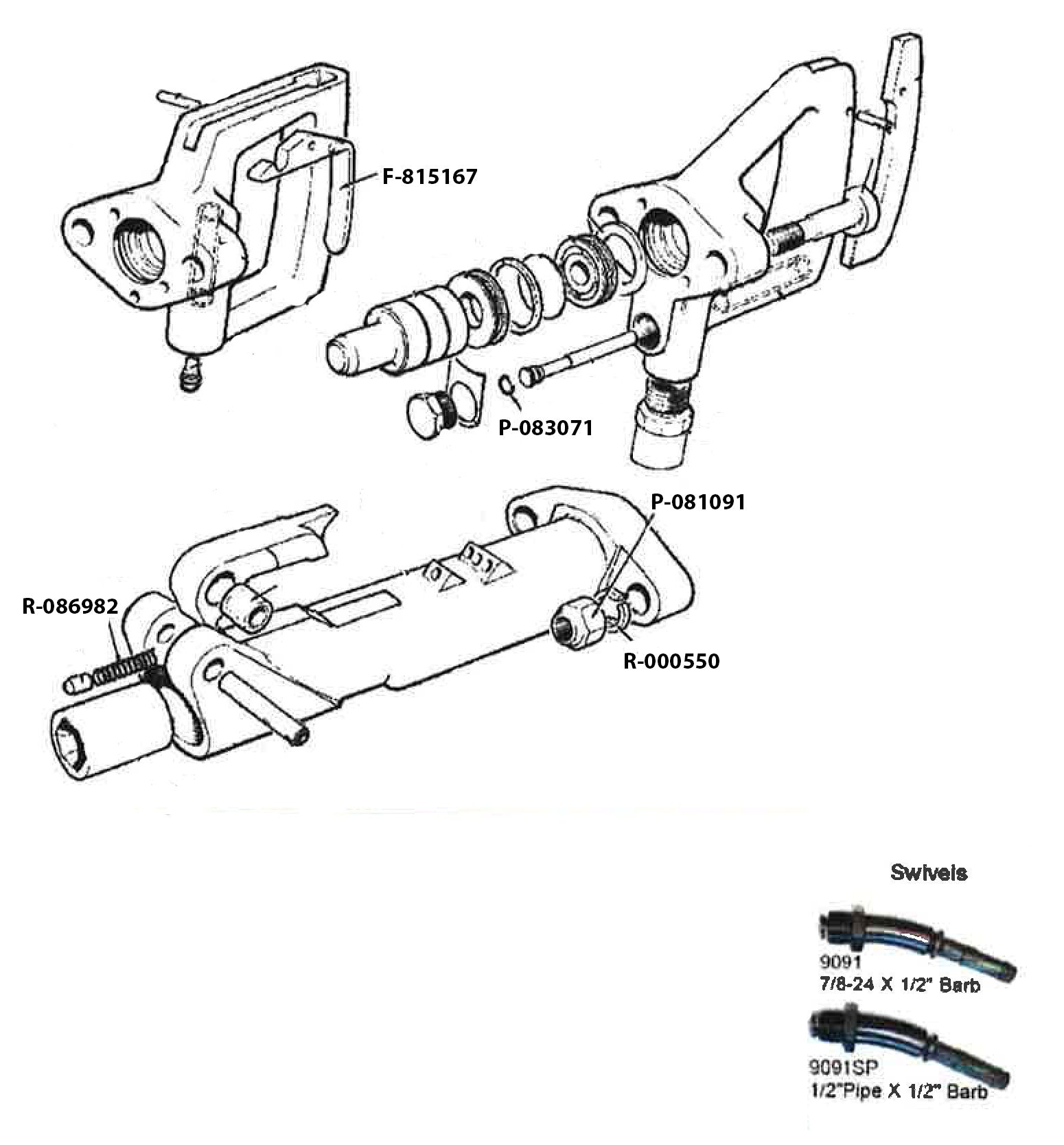

CP 222 Parts Diagram
Texas Pneumatic CP 222 exploded parts diagram. Use the diagram to identify the part you need, then select it from the parts list below.
Repair Parts
| Part # | Description | Price |
|---|---|---|
| 9091 | 9091 – 7/8″-24 Thread Swivel x 1/2″ Hose Barb Assembly | $43.03 |
| 9091SP | 9091SP – 1/2″ Pipe Thread Swivel X 1/2″ Hose Barb Assembly | $43.03 |
| F-815167 | F-815167 – Lever Inside Throttle | $108.46 |
| P-081091 | P-081091 – Nut | $15.66 |
| P-083071 | P-083071 – O Ring (011) | $2.28 |
| R-000550 | R-000550 – Lock Washer | $3.01 |
| R-086982 | R-086982 – Retainer Plunger Spring | $7.75 |
