Texas Pneumatic CP 1290 SVR Chicago Pneumatic Repair Parts

TPT-manufactured compatible replacement parts for Chicago Pneumatic CP 1290 SVR. These are not genuine Chicago Pneumatic OEM parts.

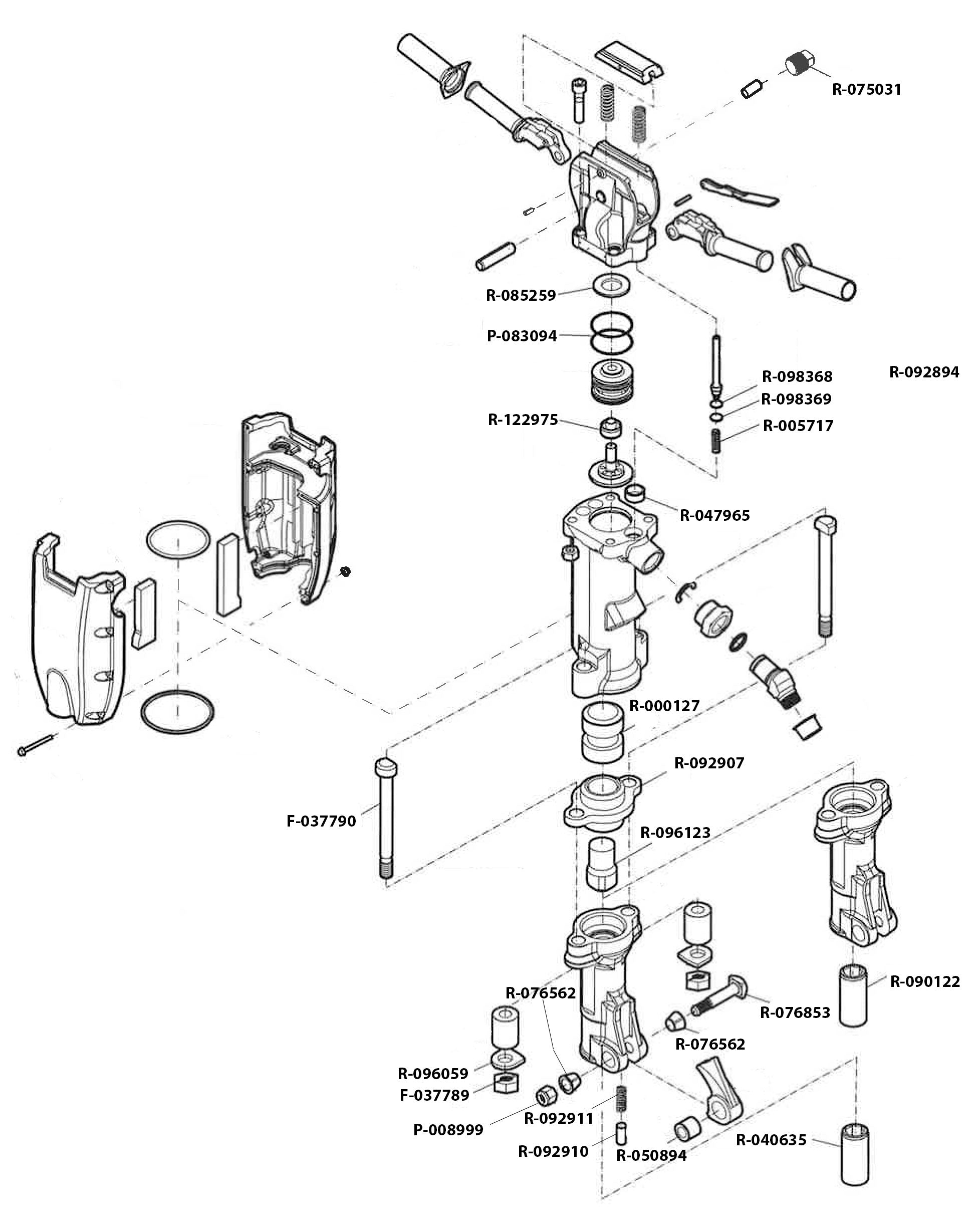

CP 1290 SVR Parts Diagram

Texas Pneumatic CP 1290 SVR exploded parts diagram. Use the diagram to identify the part you need, then select it from the parts list below.

Texas Pneumatic CP 1290 SVR parts diagram

Repair Parts

Part # Description Price
F-037789 Side Rod Bolt Nut $23.98
F-037790 Side Rod Bolt $53.26
P-008999 Retainer Bolt Nut $6.27
P-083094 O Ring (CP 124 PB) $4.26
R-000127 Piston (CP 124) $183.63
R-005717 Throttle Valve Spring $5.76
R-040635 1-1/4″ x 6″ Hex Bushing $126.68
R-047965 Cylinder Seal $14.60
R-050894 Retainer Latch Bushing (CP 124) $16.00
R-075031 Oil Plug (CP 117 PB) $31.08
R-076562 Retainer Bolt Bushing (CP 1230, 124) $27.53
R-076853 Retainer Bolt (CP 124) $48.80
R-085259 Washer, Chest $30.64
R-090122 1-1/8″ Bushing $126.68
R-092894 Throttle Valve (CP 1230,124) $54.56
R-092907 Tappet Seat (CP 124) $305.94
R-092910 Retainer Plunger $10.99
R-092911 Retainer Plunger Spring (CP 124) $9.86
R-096059 Locknut Washer (CP 124) $23.46
R-096123 Anvil Block (Tappet) – (CP 124) $141.94
R-098368 Throttle Valve Rubber Seal $12.67
R-098369 Throttle Valve Lock Ring (CP 123,123S,124 Dt) $9.93
R-122975 Valve (CP1240) $80.02
