Texas Pneumatic CP 1260S Chicago Pneumatic Repair Parts

TPT-manufactured compatible replacement parts for Chicago Pneumatic CP 1260S. These are not genuine Chicago Pneumatic OEM parts.

CP 1260S Parts Diagram

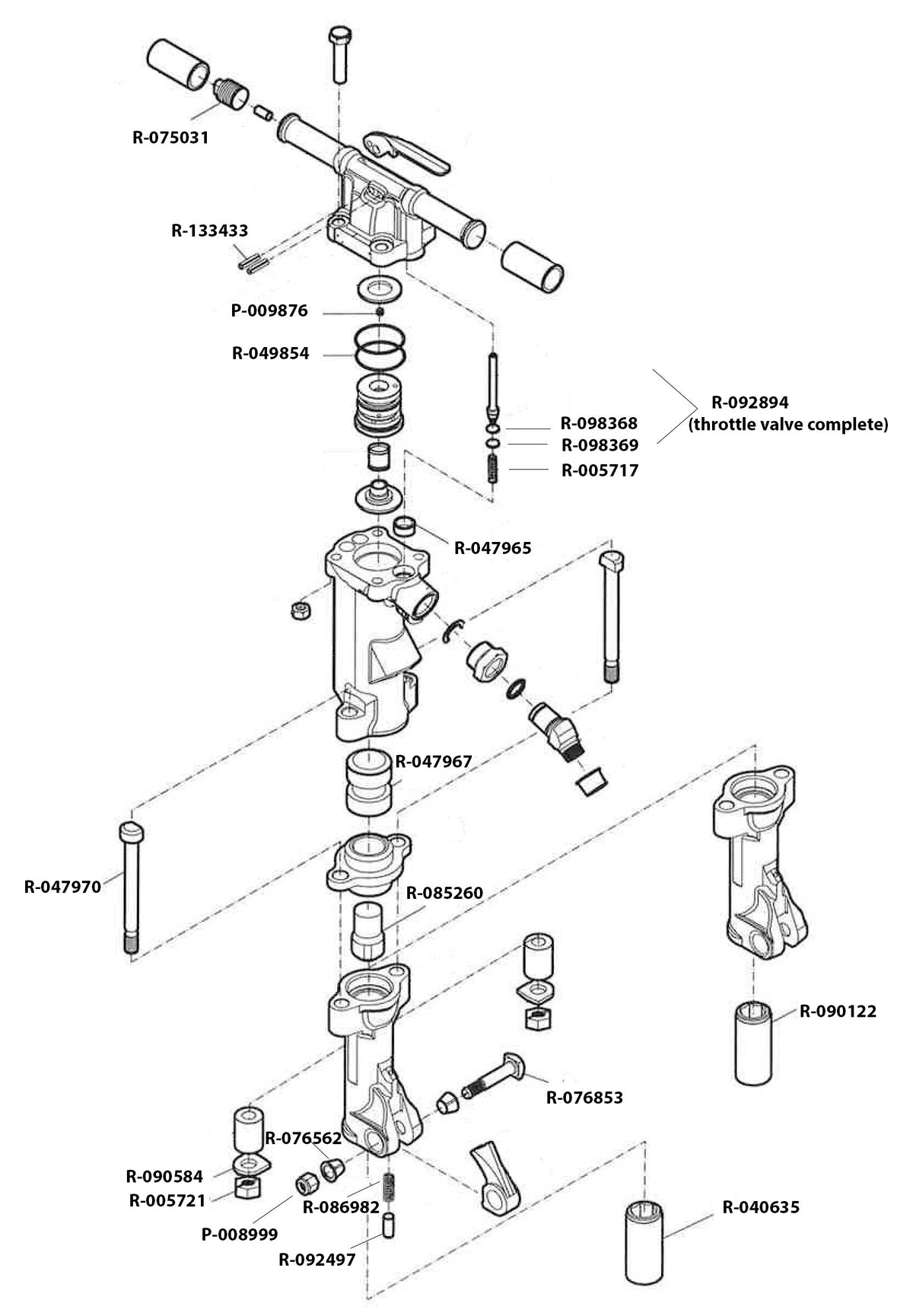

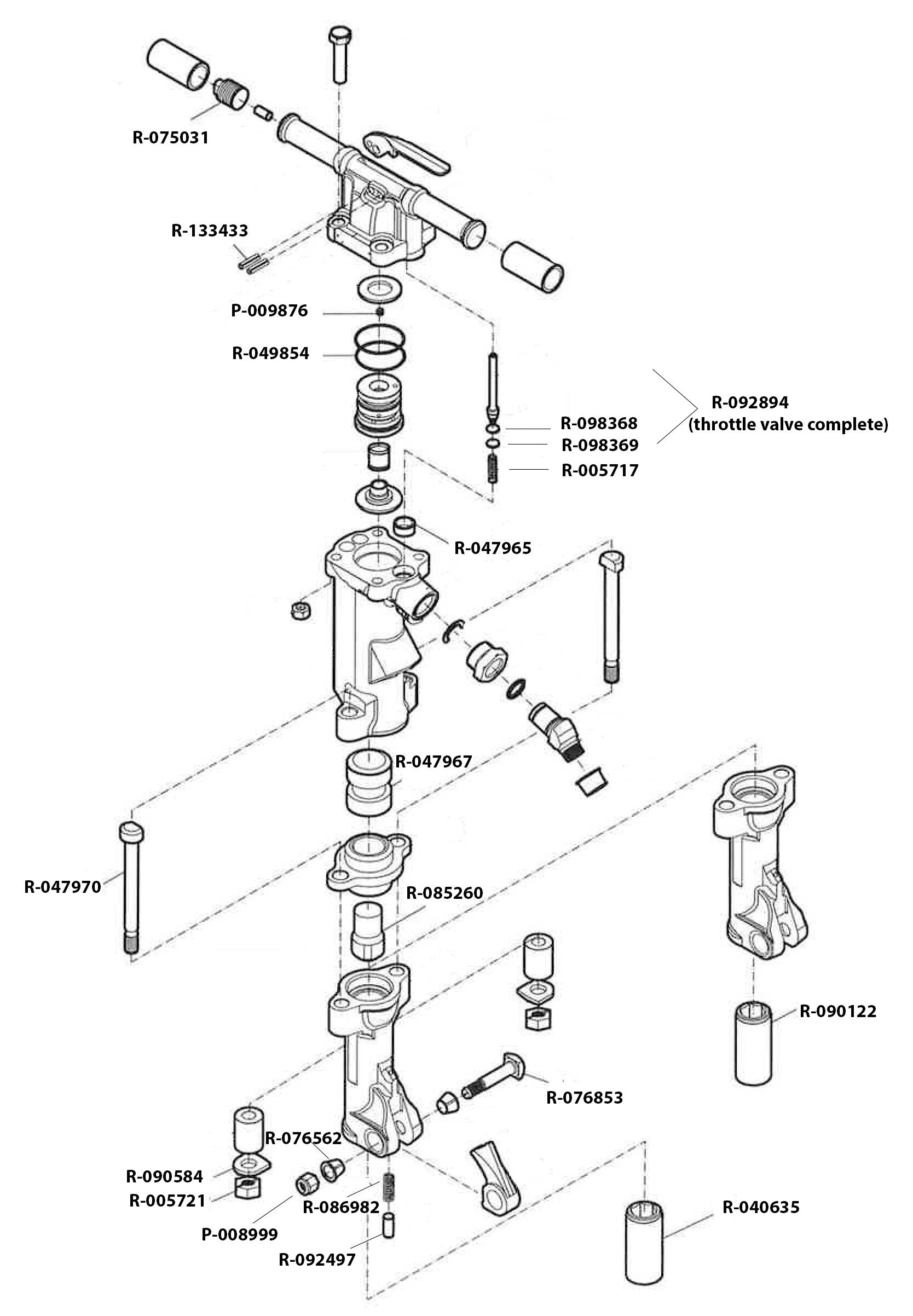

Texas Pneumatic CP 1260S exploded parts diagram. Use the diagram to identify the part you need, then select it from the parts list below.

Texas Pneumatic CP 1260S parts diagram

Repair Parts

Part # Description Price
P-008999 Retainer Bolt Nut $6.27
P-008999 Retainer Bolt Nut $6.27
R-005717 Throttle Valve Spring $5.76
R-005717 Throttle Valve Spring $5.76
R-005721 Fronthead Bolt Nut (CP 1230) $22.21
R-005721 Fronthead Bolt Nut (CP 1230) $22.21
R-040635 1-1/4″ x 6″ Hex Bushing $126.68
R-040635 1-1/4″ x 6″ Hex Bushing $126.68
R-047965 Cylinder Seal $14.60
R-047965 Cylinder Seal $14.60
R-047967 Piston (CP 1230) $179.89
R-047967 Piston (CP 1230) $179.89
R-047970 Fronthead Bolt $51.01
R-047970 Fronthead Bolt $51.01
R-049854 “O” Ring $7.43
R-049854 “O” Ring $7.43
R-075031 Oil Plug (CP 117 PB) $31.08
R-075031 Oil Plug (CP 117 PB) $31.08
R-076562 Retainer Bolt Bushing (CP 1230, 124) $27.53
R-076562 Retainer Bolt Bushing (CP 1230, 124) $27.53
R-076853 Retainer Bolt (CP 124) $48.80
R-076853 Retainer Bolt (CP 124) $48.80
R-085260 Anvil Block (Tappet) – (CP 1230) $125.96
R-085260 Anvil Block (Tappet) – (CP 1230) $125.96
R-086982 Retainer Plunger Spring $7.75
R-086982 Retainer Plunger Spring $7.75
R-090122 1-1/8″ Bushing $126.68
R-090122 1-1/8″ Bushing $126.68
R-090584 Lock Washer $24.44
R-090584 Lock Washer $24.44
R-092497 Plunger (CP 121) $8.93
R-092497 Plunger (CP 121) $8.93
R-092894 Throttle Valve (CP 1230,124) $54.56
R-092894 Throttle Valve (CP 1230,124) $54.56
R-098368 Throttle Valve Rubber Seal $12.67
R-098368 Throttle Valve Rubber Seal $12.67
R-098369 Throttle Valve Lock Ring (CP 123,123S,124 Dt) $9.93
R-098369 Throttle Valve Lock Ring (CP 123,123S,124 Dt) $9.93
R-133433 Pin $3.01
R-133433 Pin $3.01
P-009876 Valve Plug (1/8) $5.04
P-009876 Valve Plug (1/8) $5.04
