Texas Pneumatic CP 1240 Chicago Pneumatic Repair Parts

TPT-manufactured compatible replacement parts for Chicago Pneumatic CP 1240.

CP 1240 Parts Diagram

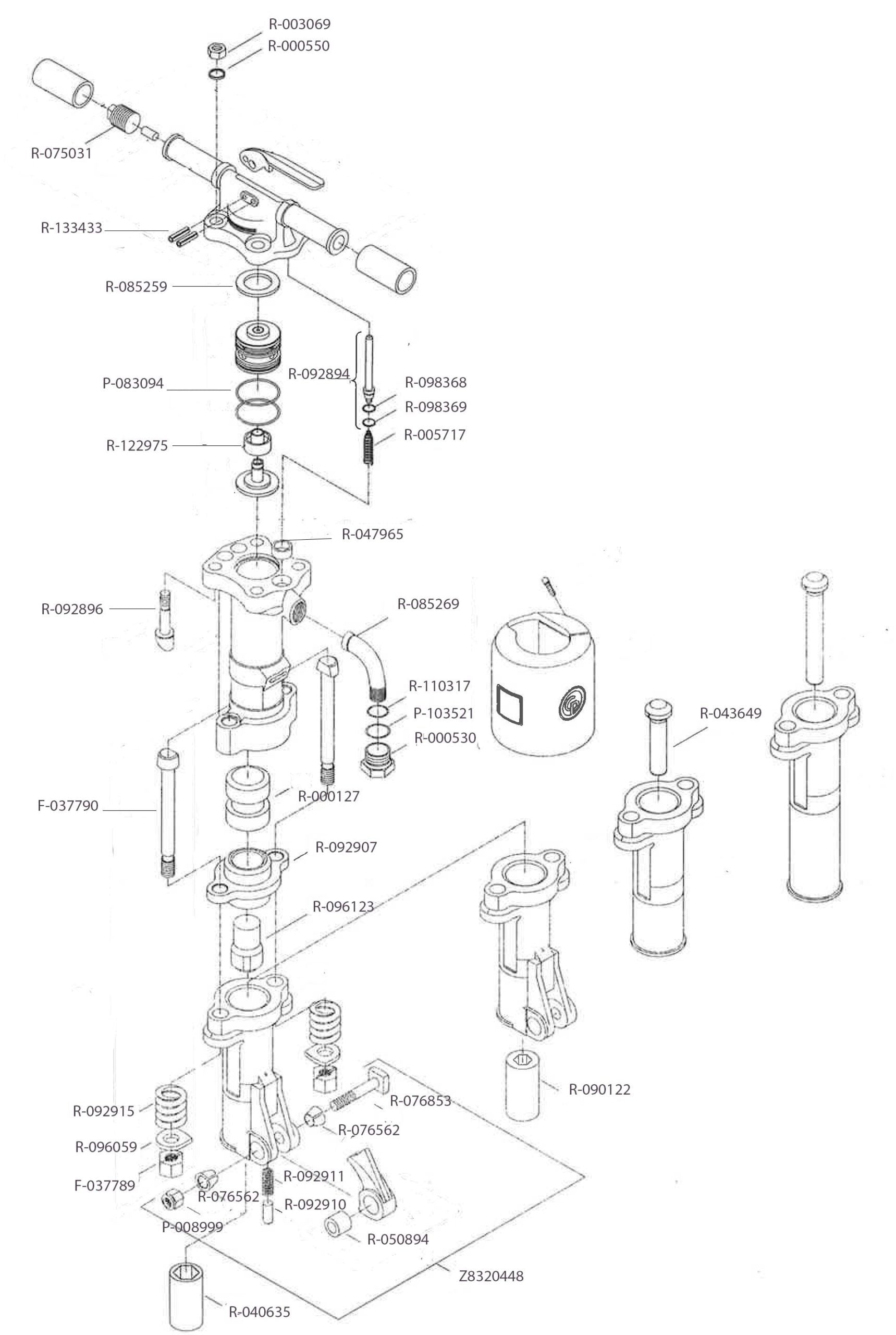

Texas Pneumatic CP 1240 exploded parts diagram. Use the diagram to identify the part you need, then select it from the parts list below.

Texas Pneumatic CP 1240 parts diagram

Repair Parts

Part # Description Price
F-037789 Side Rod Bolt Nut $23.98
F-037790 Side Rod Bolt $53.26
P-008999 Retainer Bolt Nut $6.27
P-083094 O Ring (CP 124 PB) $4.26
P-103521 O Ring (CP 123,123S,124 Demolition Tool) $3.69
R-000127 Piston (CP 124) $183.63
R-000530 Swivel Nut W/ “O” Ring (P-103521) $59.33
R-000550 Lock Washer $3.01
R-003069 Backhead Bolt Nut $3.69
R-005717 Throttle Valve Spring $5.76
R-040635 1-1/4″ x 6″ Hex Bushing $126.68
R-043649 Driving Block (Spike Driver Only) – (CP124) $350.05
R-047965 Cylinder Seal $14.60
R-050894 Retainer Latch Bushing (CP 124) $16.00
R-075031 Oil Plug (CP 117 PB) $31.08
R-076562 Retainer Bolt Bushing (CP 1230, 124) $27.53
R-076853 Retainer Bolt (CP 124) $48.80
R-085259 Washer, Chest $30.64
R-085269 Swivel Pipe (3/4″ MPT) $99.61
R-090122 1-1/8″ Bushing $126.68
R-092894 Throttle Valve (CP 1230,124) $54.56
R-092896 Backhead Bolt (CP 124 PB) $44.66
R-092907 Tappet Seat (CP 124) $305.94
R-092910 Retainer Plunger $10.99
R-092911 Retainer Plunger Spring (CP 124) $9.86
R-092915 Fronthead Bolt Spring $77.96
R-096059 Locknut Washer (CP 124) $23.46
R-096123 Anvil Block (Tappet) – (CP 124) $141.94
R-098368 Throttle Valve Rubber Seal $12.67
R-098369 Throttle Valve Lock Ring (CP 123,123S,124 Dt) $9.93
R-110317 O Ring (CP 123,123S,124 Demolition Tool) $7.43
R-122975 Valve (CP1240) $80.02
R-133433 Pin $3.01
Z8320448 Latch Kit Complete – CP1240 $154.43
