Texas Pneumatic CP 1230S Chicago Pneumatic Repair Parts

TPT-manufactured compatible replacement parts for Chicago Pneumatic CP 1230S. These are not genuine Chicago Pneumatic OEM parts.

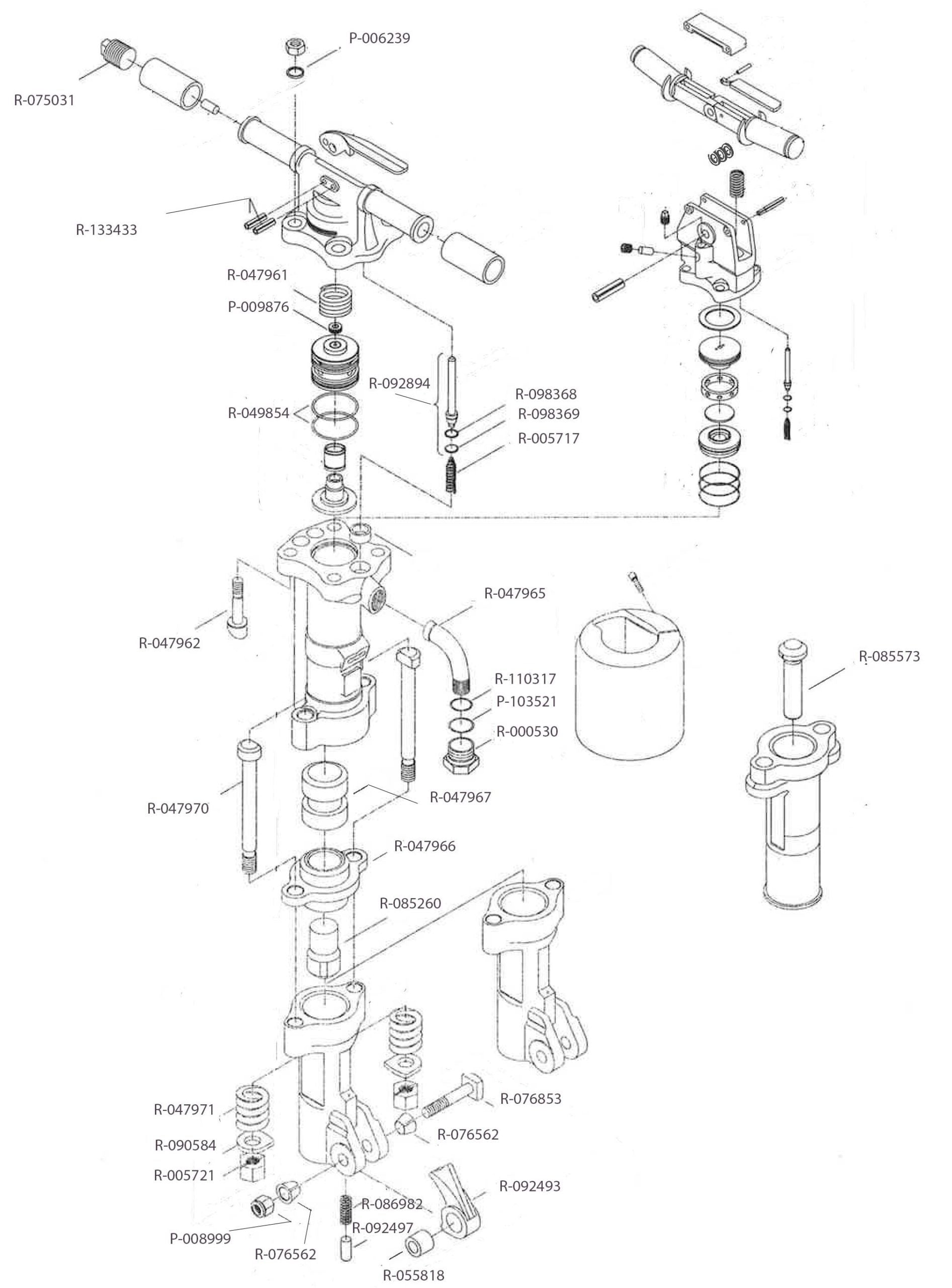

CP 1230S Parts Diagram

Texas Pneumatic CP 1230S exploded parts diagram. Use the diagram to identify the part you need, then select it from the parts list below.

Texas Pneumatic CP 1230S parts diagram

Repair Parts

Part # Description Price
P-006239 Backhead Bolt Lockwacher (CP 123,123S Dt) $1.95
P-008999 Retainer Bolt Nut $6.27
P-103521 O Ring (CP 123,123S,124 Demolition Tool) $3.69
R-000530 Swivel Nut W/ “O” Ring (P-103521) $59.33
R-005717 Throttle Valve Spring $5.76
R-005721 Fronthead Bolt Nut (CP 1230) $22.21
R-047961 Spring $16.90
R-047962 Backhead Bolt (CP 123, 123S Demolition Tool) $39.75
R-047965 Cylinder Seal $14.60
R-047966 Tappet Seat $248.15
R-047967 Piston (CP 1230) $179.89
R-047970 Fronthead Bolt $51.01
R-047971 Spring $74.52
R-049854 “O” Ring $7.43
R-055818 Retainer Latch Bushing (CP 1230) $19.69
R-075031 Oil Plug (CP 117 PB) $31.08
R-076562 Retainer Bolt Bushing (CP 1230, 124) $27.53
R-076853 Retainer Bolt (CP 124) $48.80
R-085573 Driving Block (CP 1230) $268.07
R-086982 Retainer Plunger Spring $7.75
R-090584 Lock Washer $24.44
R-092493 Retainer Latch (CP 121, 1230) $74.98
R-092497 Plunger (CP 121) $8.93
R-092894 Throttle Valve (CP 1230,124) $54.56
R-098368 Throttle Valve Rubber Seal $12.67
R-098369 Throttle Valve Lock Ring (CP 123,123S,124 Dt) $9.93
R-110317 O Ring (CP 123,123S,124 Demolition Tool) $7.43
R-133433 Pin $3.01
P-009876 Valve Plug (1/8) $5.04
