CP 1211 Parts Diagram

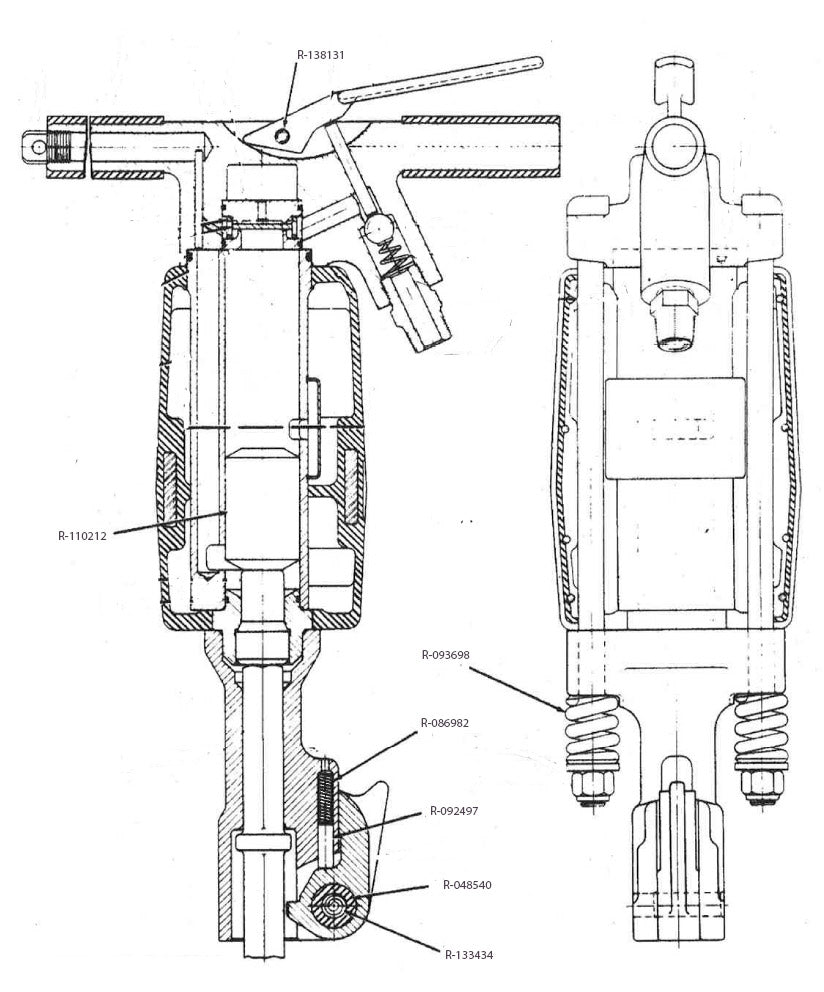

Texas Pneumatic CP 1211 exploded parts diagram. Use the diagram to identify the part you need, then select it from the parts list below.
Repair Parts
| Part # | Description | Price |
|---|---|---|
| R-048540 | R-048540 – Nylon Bushing (Latch) – (CP 121) | $25.28 |
| R-048540 | R-048540 – Nylon Bushing (Latch) – (CP 121) | $25.28 |
| R-086982 | R-086982 – Retainer Plunger Spring | $7.75 |
| R-086982 | R-086982 – Retainer Plunger Spring | $7.75 |
| R-092497 | R-092497 – Plunger (CP 121) | $8.93 |
| R-092497 | R-092497 – Plunger (CP 121) | $8.93 |
| R-093698 | R-093698 – Fronthead Spring (CP 121) | $55.92 |
| R-093698 | R-093698 – Fronthead Spring (CP 121) | $55.92 |
| R-110212 | R-110212 – Piston (CP 121) | $95.73 |
| R-110212 | R-110212 – Piston (CP 121) | $95.73 |
| R-133434 | R-133434 – Pin, Outer Retainer Latch | $32.40 |
| R-133434 | R-133434 – Pin, Outer Retainer Latch | $32.40 |
| R-138131 | R-138131 – Pin | $7.83 |
| R-138131 | R-138131 – Pin | $7.83 |
