Texas Pneumatic CP 1210 (Pre-2006) Chicago Pneumatic Repair Parts

TPT-manufactured compatible replacement parts for Chicago Pneumatic CP 1210 (Pre-2006). These are not genuine Chicago Pneumatic OEM parts.

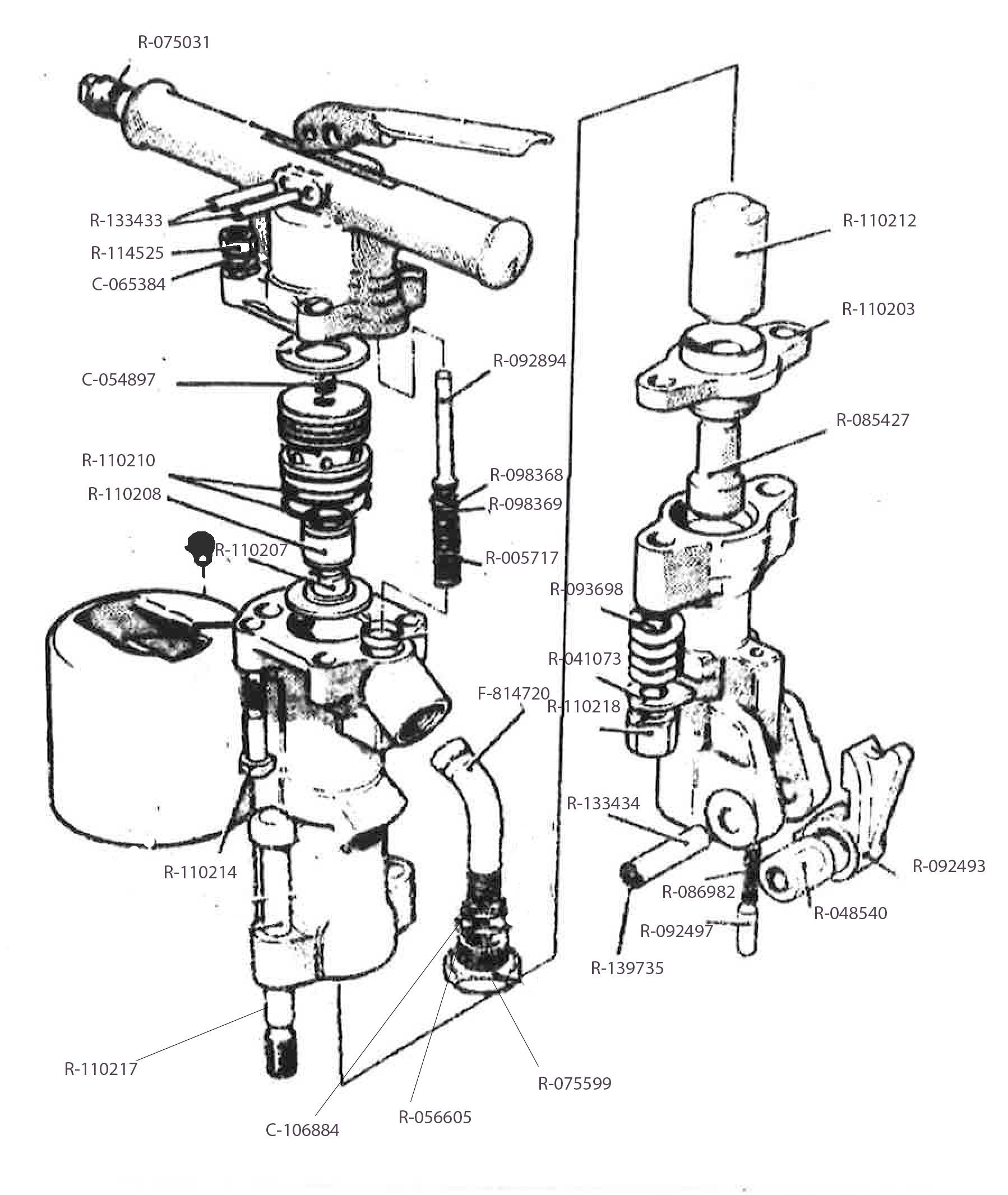

CP 1210 (Pre-2006) Parts Diagram

Texas Pneumatic CP 1210 (Pre-2006) exploded parts diagram. Use the diagram to identify the part you need, then select it from the parts list below.

Texas Pneumatic CP 1210 (Pre-2006) parts diagram

Repair Parts

Part # Description Price
C-054897 Pipe Plug $5.85
C-065384 Lock Washer $4.26
C-106884 O Ring (CP 121 Demolition Tool) $4.26
F-814720 Swivel Pipe (CP 121 Demolition Tool) $90.76
R-005717 Throttle Valve Spring $5.76
R-041073 Lock Washer $22.68
R-048540 Nylon Bushing (Latch) – (CP 121) $25.28
R-056605 “O” Ring $3.98
R-075031 Oil Plug (CP 117 PB) $31.08
R-075599 Swivel Nut $67.60
R-085427 Tappet (CP 121) $134.35
R-086982 Retainer Plunger Spring $7.75
R-092493 Retainer Latch (CP 121, 1230) $74.98
R-092497 Plunger (CP 121) $8.93
R-092894 Throttle Valve (CP 1230,124) $54.56
R-093698 Fronthead Spring (CP 121) $55.92
R-098368 Throttle Valve Rubber Seal $12.67
R-098369 Throttle Valve Lock Ring (CP 123,123S,124 Dt) $9.93
R-110203 Tappet Seat (CP 121) $298.69
R-110207 Valve Cover $155.36
R-110208 Main Valve (CP 121 Demolition Tool) $84.12
R-110210 O Ring (CP 121 Demolition Tool) $4.26
R-110212 Piston (CP 121) $95.73
R-110214 Backhead Bolt $39.93
R-110217 Fronthead Bolt $51.36
R-110218 Fronthead Bolt Nut (CP 121) $19.76
R-114525 Backhead Bolt Nut (CP 121 Demolition Tool) $6.11
R-133433 Pin $3.01
R-133434 Pin, Outer Retainer Latch $32.40
R-139735 Pin, Inner Retainer Latch $11.36
