CP 1210 Parts Diagram

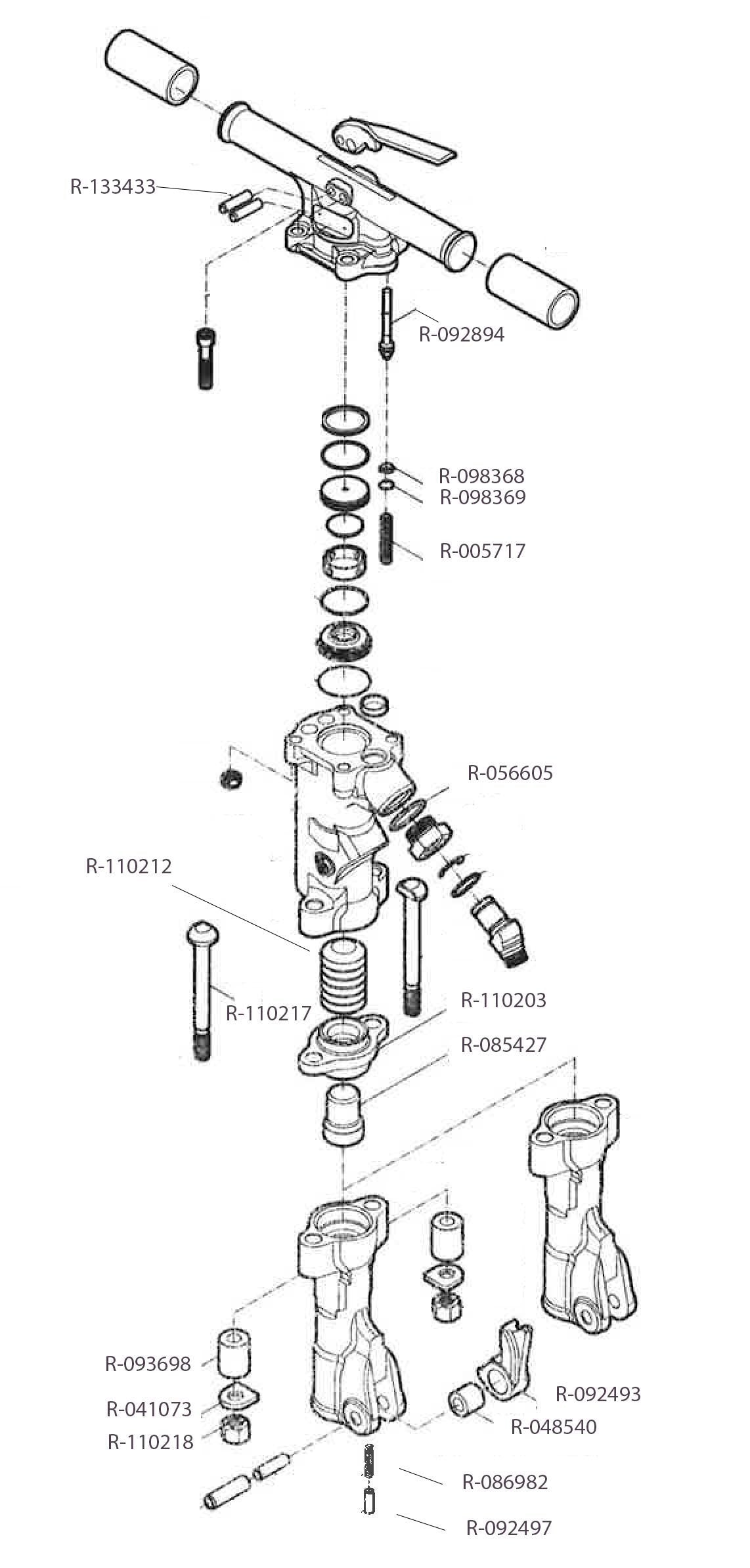

Texas Pneumatic CP 1210 exploded parts diagram. Use the diagram to identify the part you need, then select it from the parts list below.
Repair Parts
| Part # | Description | Price |
|---|---|---|
| R-005717 | R-005717 – Throttle Valve Spring | $5.76 |
| R-041073 | R-041073 – Lock Washer | $22.68 |
| R-048540 | R-048540 – Nylon Bushing (Latch) – (CP 121) | $25.28 |
| R-056605 | R-056605 – “O” Ring | $3.98 |
| R-085427 | R-085427 – Tappet (CP 121) | $134.35 |
| R-086982 | R-086982 – Retainer Plunger Spring | $7.75 |
| R-092493 | R-092493 – Retainer Latch (CP 121, 1230) | $74.98 |
| R-092497 | R-092497 – Plunger (CP 121) | $8.93 |
| R-092894 | R-092894 – Throttle Valve (CP 1230,124) | $54.56 |
| R-093698 | R-093698 – Fronthead Spring (CP 121) | $55.92 |
| R-098368 | R-098368 – Throttle Valve Rubber Seal | $12.67 |
| R-098369 | R-098369 – Throttle Valve Lock Ring (CP 123,123S,124 Dt) | $9.93 |
| R-110203 | R-110203 – Tappet Seat (CP 121) | $298.69 |
| R-110212 | R-110212 – Piston (CP 121) | $95.73 |
| R-110217 | R-110217 – Fronthead Bolt | $51.36 |
| R-110218 | R-110218 – Fronthead Bolt Nut (CP 121) | $19.76 |
| R-133433 | R-133433 – Pin | $3.01 |
