CP 0117 Parts Diagram

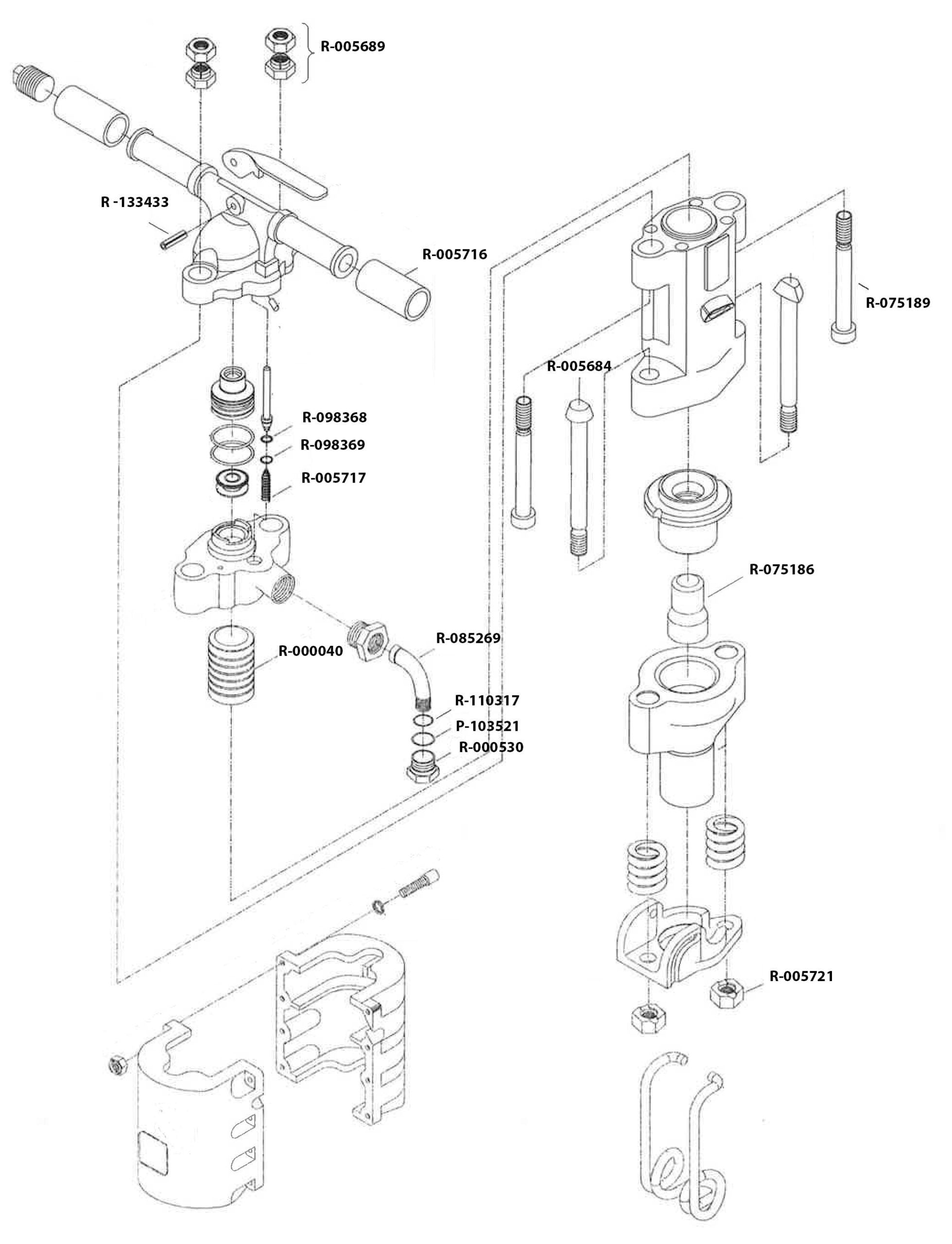

Texas Pneumatic CP 0117 exploded parts diagram. Use the diagram to identify the part you need, then select it from the parts list below.
Repair Parts
| Part # | Description | Price |
|---|---|---|
| P-103521 | P-103521 – O Ring (CP 123,123S,124 Demolition Tool) | $3.69 |
| R-000040 | R-000040 – Piston (CP 117 PB) | $126.68 |
| R-000530 | R-000530 – Swivel Nut W/ “O” Ring (P-103521) | $59.33 |
| R-005684 | R-005684 – Fronthead Bolt (CP 117 PB) | $54.44 |
| R-005689 | R-005689 – Backhead Bolt Nut | $23.98 |
| R-005716 | R-005716 – Rubber Grip | $9.17 |
| R-005717 | R-005717 – Throttle Valve Spring | $5.76 |
| R-005721 | R-005721 – Fronthead Bolt Nut (CP 1230) | $22.21 |
| R-075186 | R-075186 – Tappet (CP 117 PB) | $180.16 |
| R-075189 | R-075189 – Backhead Bolt (CP 117 PB) | $51.07 |
| R-085269 | R-085269 – Swivel Pipe (3/4″ MPT) | $99.61 |
| R-098368 | R-098368 – Throttle Valve Rubber Seal | $12.67 |
| R-098369 | R-098369 – Throttle Valve Lock Ring (CP 123,123S,124 Dt) | $9.93 |
| R-110317 | R-110317 – O Ring (CP 123,123S,124 Demolition Tool) | $7.43 |
| R-133433 | R-133433 – Pin | $3.01 |
