CP 0112 EX Parts Diagram

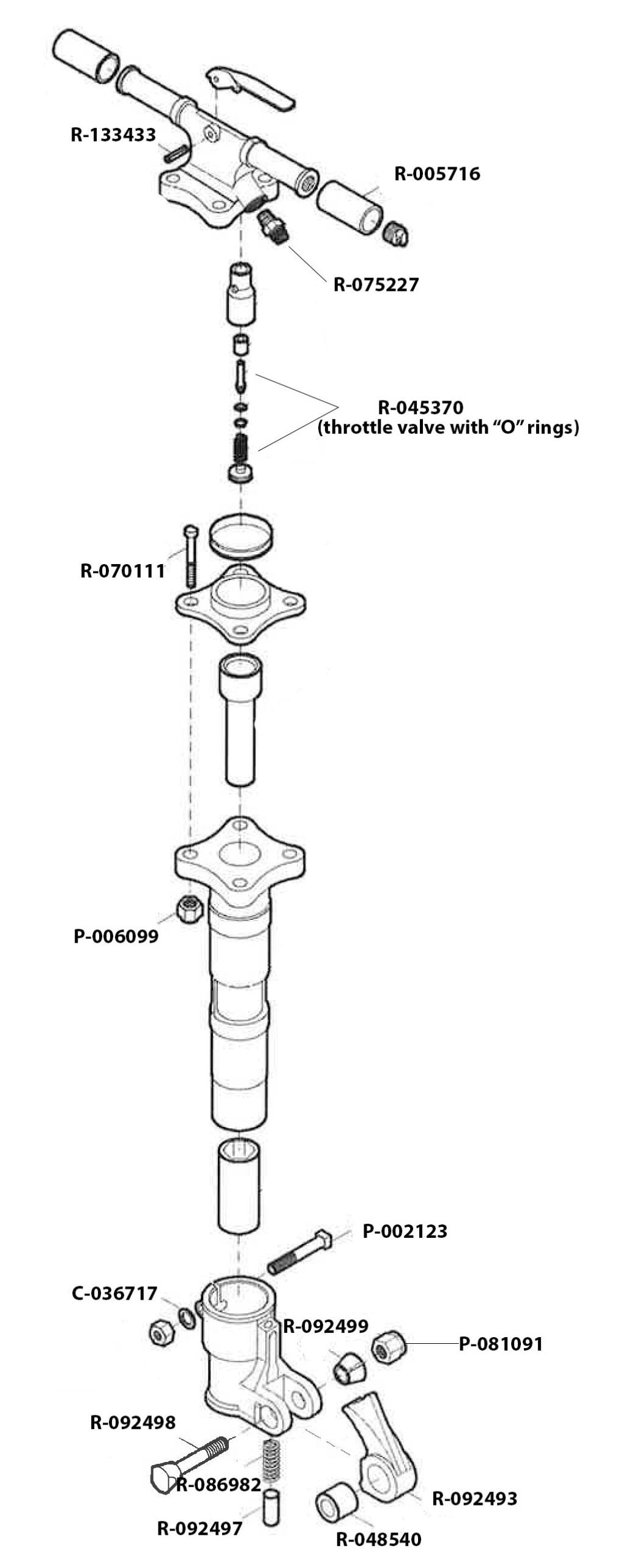

Texas Pneumatic CP 0112 EX exploded parts diagram. Use the diagram to identify the part you need, then select it from the parts list below.
Repair Parts
| Part # | Description | Price |
|---|---|---|
| C-036717 | C-036717 – Lock Washer | $2.80 |
| P-002123 | P-002123 – Bolt | $29.63 |
| P-006099 | P-006099 – Bolt Nut (CP 111) | $5.85 |
| P-081091 | P-081091 – Nut | $15.66 |
| R-005716 | R-005716 – Rubber Grip | $9.17 |
| R-045370 | R-045370 – Throttle Valve W/ “O” Rings | $103.31 |
| R-048540 | R-048540 – Nylon Bushing (Latch) – (CP 121) | $25.28 |
| R-070111 | R-070111 – Backhead Bolt Only | $43.46 |
| R-075227 | R-075227 – Inlet Nipple (CP 121 Demolition Tool) | $22.87 |
| R-086982 | R-086982 – Retainer Plunger Spring | $7.75 |
| R-092493 | R-092493 – Retainer Latch (CP 121, 1230) | $74.98 |
| R-092497 | R-092497 – Plunger (CP 121) | $8.93 |
| R-092498 | R-092498 – Retainer Bolt (CP 121 Demolition Tool) | $63.65 |
| R-092499 | R-092499 – Retainer Bolt Bushing (CP 121 Demolition Tool) | $18.95 |
| R-133433 | R-133433 – Pin | $3.01 |
