Texas Pneumatic replacement parts

Texas Pneumatic CP 0112 Chicago Pneumatic Repair Parts

TPT-manufactured compatible replacement parts for Chicago Pneumatic CP 0112. These are not genuine Chicago Pneumatic OEM parts.

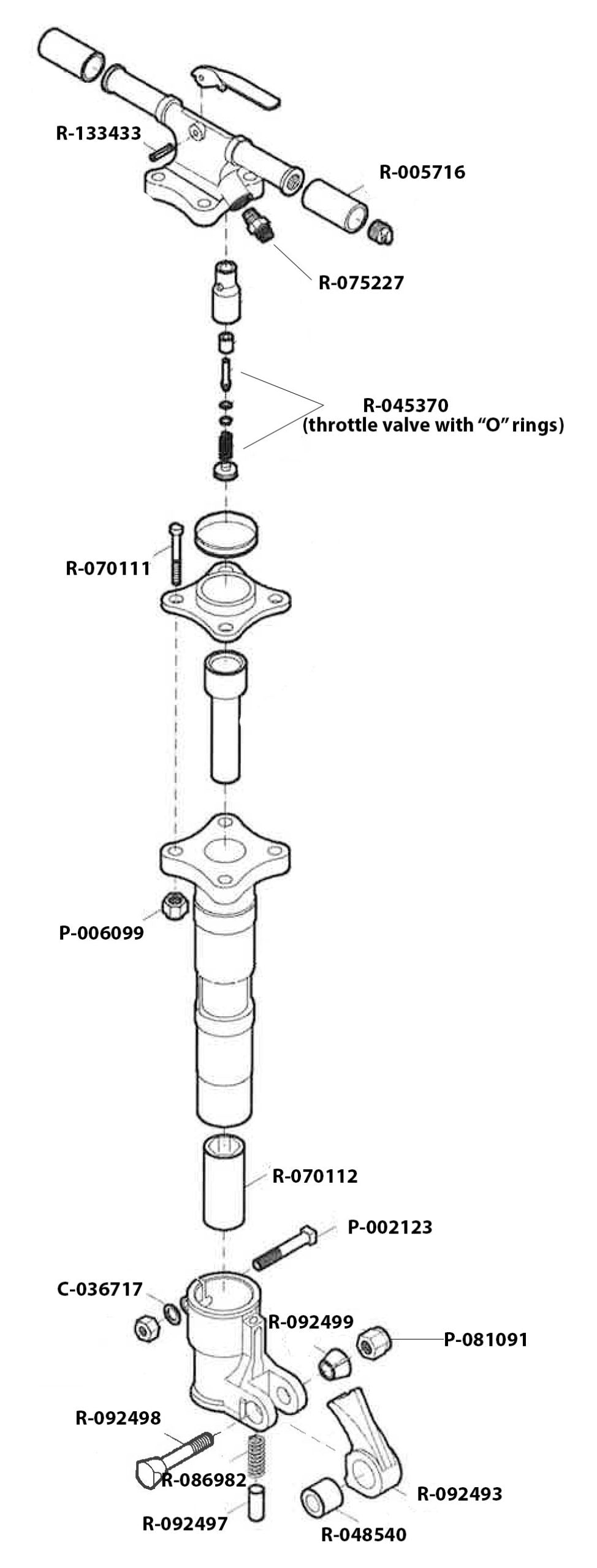

CP 0112 Parts Diagram

Texas Pneumatic CP 0112 exploded parts diagram. Use the diagram to identify the part you need, then select it from the parts list below.

Texas Pneumatic CP 0112 parts diagram

Repair Parts

Part # Description Price
C-036717 Lock Washer $2.80
C-036717 Lock Washer $2.80
P-002123 Bolt $29.63
P-002123 Bolt $29.63
P-006099 Bolt Nut (CP 111) $5.85
P-006099 Bolt Nut (CP 111) $5.85
P-081091 Nut $15.66
P-081091 Nut $15.66
R-005716 Rubber Grip $9.17
R-005716 Rubber Grip $9.17
R-045370 Throttle Valve W/ “O” Rings $103.31
R-045370 Throttle Valve W/ “O” Rings $103.31
R-048540 Nylon Bushing (Latch) – (CP 121) $25.28
R-048540 Nylon Bushing (Latch) – (CP 121) $25.28
R-070111 Backhead Bolt Only $43.46
R-070111 Backhead Bolt Only $43.46
R-070112 1″ X 4-1/4″ Hex Bushing $113.92
R-070112 1″ X 4-1/4″ Hex Bushing $113.92
R-075227 Inlet Nipple (CP 121 Demolition Tool) $22.87
R-075227 Inlet Nipple (CP 121 Demolition Tool) $22.87
R-086982 Retainer Plunger Spring $7.75
R-086982 Retainer Plunger Spring $7.75
R-092493 Retainer Latch (CP 121, 1230) $74.98
R-092493 Retainer Latch (CP 121, 1230) $74.98
R-092497 Plunger (CP 121) $8.93
R-092497 Plunger (CP 121) $8.93
R-092498 Retainer Bolt (CP 121 Demolition Tool) $63.65
R-092498 Retainer Bolt (CP 121 Demolition Tool) $63.65
R-092499 Retainer Bolt Bushing (CP 121 Demolition Tool) $18.95
R-092499 Retainer Bolt Bushing (CP 121 Demolition Tool) $18.95
R-133433 Pin $3.01
R-133433 Pin $3.01
