Texas Pneumatic CP 0111 Chicago Pneumatic Repair Parts

TPT-manufactured compatible replacement parts for Chicago Pneumatic CP 0111. These are not genuine Chicago Pneumatic OEM parts.

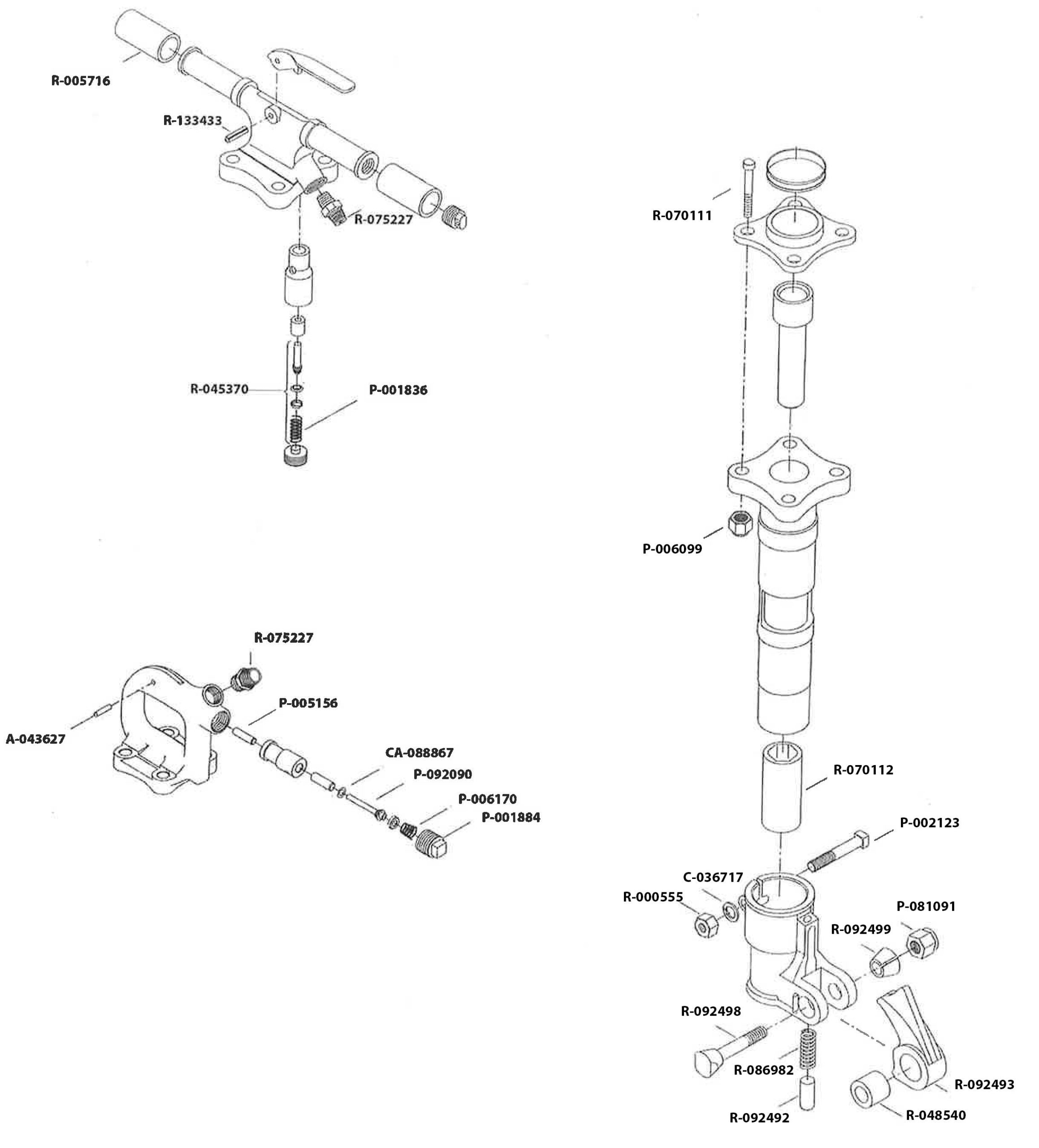

CP 0111 Parts Diagram

Texas Pneumatic CP 0111 exploded parts diagram. Use the diagram to identify the part you need, then select it from the parts list below.

Texas Pneumatic CP 0111 parts diagram

Repair Parts

Part # Description Price
A-043627 Throttle Lever Pin $4.62
C-036717 Lock Washer $2.80
CA-088867 “O” Ring $2.17
P-001836 Throttle Valve Spring (CP 111) $12.89
P-001884 Plug $24.57
P-002123 Bolt $29.63
P-005156 Pin $16.49
P-006099 Bolt Nut (CP 111) $5.85
P-006170 Spring $6.27
P-081091 Nut $15.66
P-092090 Throttle Valve $91.55
R-000555 Nut $4.16
R-005716 Rubber Grip $9.17
R-045370 Throttle Valve W/ “O” Rings $103.31
R-048540 Nylon Bushing (Latch) – (CP 121) $25.28
R-070111 Backhead Bolt Only $43.46
R-070112 1″ X 4-1/4″ Hex Bushing $113.92
R-075227 Inlet Nipple (CP 121 Demolition Tool) $22.87
R-086982 Retainer Plunger Spring $7.75
R-092493 Retainer Latch (CP 121, 1230) $74.98
R-092497 Plunger (CP 121) $8.93
R-092498 Retainer Bolt (CP 121 Demolition Tool) $63.65
R-092499 Retainer Bolt Bushing (CP 121 Demolition Tool) $18.95
R-133433 Pin $3.01
