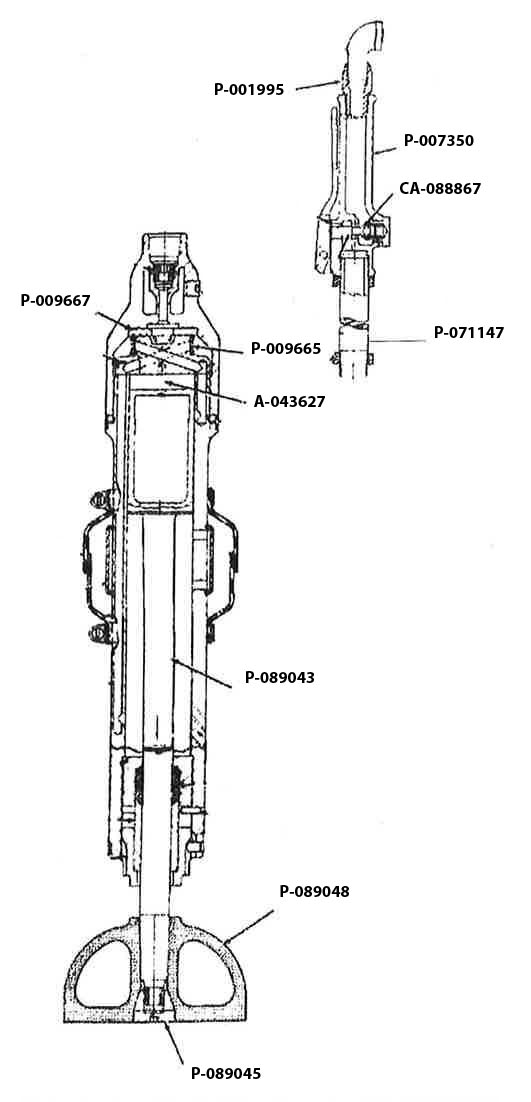

CP 0004RV Parts Diagram
Texas Pneumatic CP 0004RV exploded parts diagram. Use the diagram to identify the part you need, then select it from the parts list below.
Repair Parts
| Part # | Description | Price |
|---|---|---|
| A-043627 | A-043627 – Throttle Lever Pin | $4.62 |
| CA-088867 | CA-088867 – “O” Ring | $2.17 |
| P-001995 | P-001995 – 1/2″ X 1/2″ Inlet Bushing | $11.50 |
| P-007350 | P-007350 – Throttle Handle Complete | $343.42 |
| P-009665 | P-009665 – Ring Valve (CP Tamper, 4 Ring Valve) | $95.73 |
| P-009667 | P-009667 – Valve Lid (CP Tamper, 4 Ring Valve) | $51.54 |
| P-071147 | P-071147 – Connecting Pipe | $118.98 |
| P-089043 | P-089043 – Tamper Piston (4 RV-Threaded End) | $393.80 |
| P-089045 | P-089045 – Butt Lock Nut (CP Tamper 4 Ring Valve) | $29.69 |
