American Pneumatic APT 190A Paving Breaker Compatible Replacement Parts

Browse Texas Pneumatic Tools-manufactured compatible replacement parts for American Pneumatic Model APT 190A. These parts are not genuine American Pneumatic OEM parts. Use the cited Texas Pneumatic compatibility schematic and numbered positions to confirm fitment.

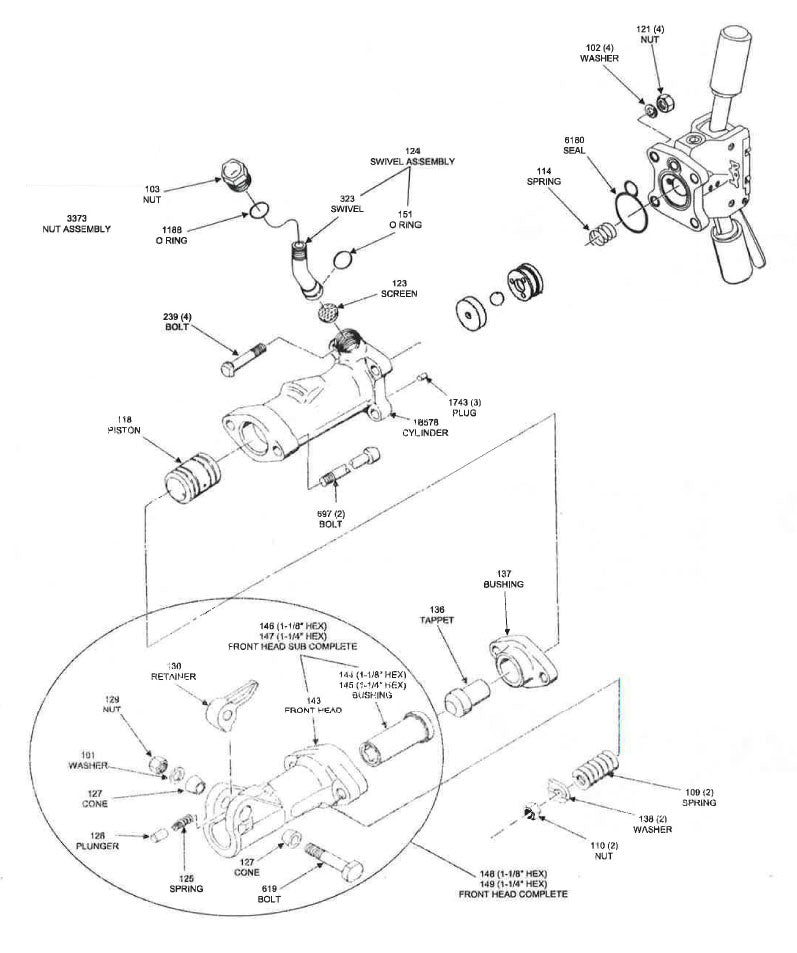

APT 190A Parts Diagram

Texas Pneumatic Tools compatibility schematic for American Pneumatic APT 190A. Use the numbered positions to identify a TPT-manufactured compatible replacement part. These are not genuine American Pneumatic OEM parts.

Texas Pneumatic Tools compatibility schematic for American Pneumatic APT 190A

Repair Parts

Part # Description Price
101 LOCKWASHER $2.28
102 LOCKWASHER $3.01
103 SWIVEL NUT WITH "O" RING $57.10
109 FRONTHEAD SPRING $54.15
110 NUT $15.10
114 PLUNGER SPRING $31.33
118 PISTON $225.04
121 NUT $3.69
123 SCREEN $16.07
124 SWIVEL PIPE (3/4" MPT) $99.61
125 PLUNGER SPRING $12.89
126 RETAINER PLUNGER $16.97
127 RUBBER BOLT BUSHING $16.97
129 NUT $6.27
130 RETAINER LATCH $77.16
136 TAPPET $140.46
137 TAPPET SEAT $300.97
138 LOCKWASHER $21.16
143 BARE FRONTHEAD $1,073.13
144 BUSHING (1-1/8" x 6") $179.89
145 BUSHING (1-1/4" x 6") $179.89
146 FRONTHEAD w/ 1-1/8" BUSHING $1,158.70
147 FRONTHEAD w/ 1-1/4" BUSHING $1,158.70
148 FRONTHEAD COMPLETE 1-1/8" $1,166.54
149 FRONTHEAD COMPLETE 1-1/4" $1,166.54
151 "O" RING $3.30
239 BACKHEAD BOLT ONLY $42.55
323 SWIVEL PIPE (3/4" MPT) $99.61
619 RETAINER BOLT $48.80
697 SIDE ROD BOLT $43.46
1188 "O" RING $4.26
1743 CYLINDER PLUG $17.59
6180 BACKHEAD DOUBLE "O" RING $36.68
3373 Swivel Nut W/ “O” Ring Reference only
18578 CYLINDER $1,084.66
