APT 190 Parts Diagram

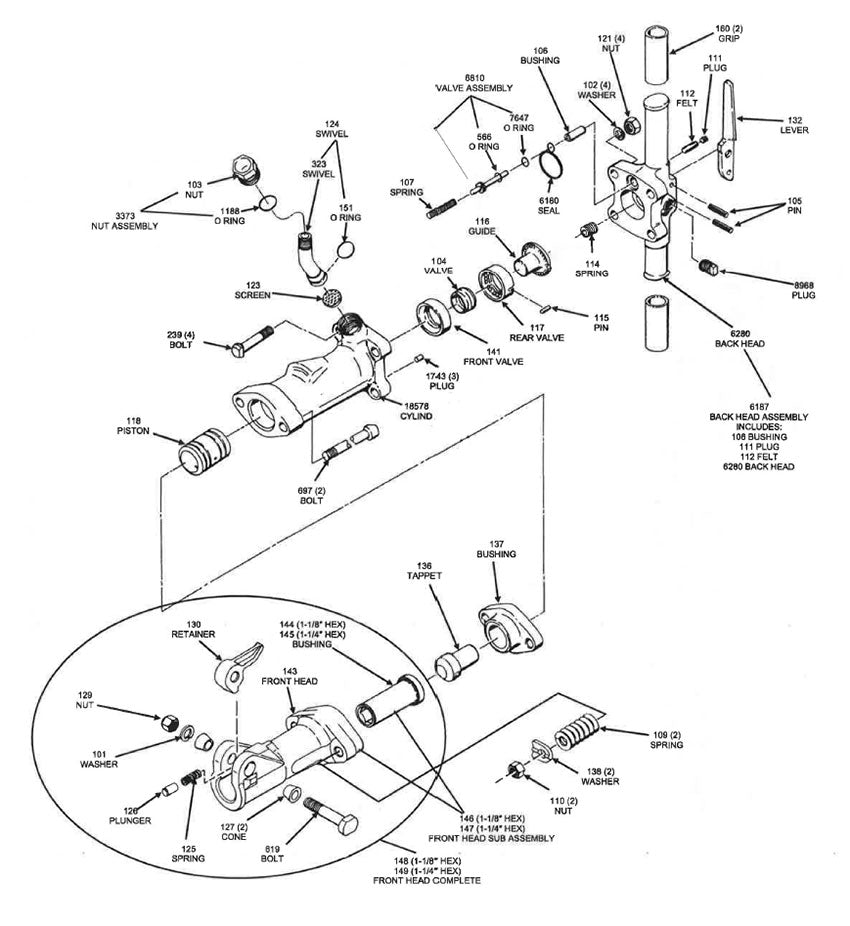

Texas Pneumatic Tools compatibility schematic for American Pneumatic APT 190. Use the numbered positions to identify a TPT-manufactured compatible replacement part. These are not genuine American Pneumatic OEM parts.

Repair Parts

Repair parts for American Pneumatic APT 190 Paving Breaker
Part #	Description	Price
101	101 – LOCKWASHER	$2.28
102	102 – LOCKWASHER	$3.01
103	103 – SWIVEL NUT WITH "O" RING	$57.10
104	104 – AUTO VALVE	$126.68
105	105 – LEVER PIN	$5.16
106	106 – STEM BUSHING	$55.92
107	107 – THROTTLE SPRING	$8.15
109	109 – FRONTHEAD SPRING	$54.15
110	110 – NUT	$15.10
111	111 – FELT PLUG	$4.26
112	112 – OILER FELT	$5.16
114	114 – PLUNGER SPRING	$31.33
115	115 – PIN	$9.32
116	116 – VALVE GUIDE	$186.12
117	117 – REAR CHEST	$200.54
118	118 – PISTON	$225.04
121	121 – NUT	$3.69
123	123 – SCREEN	$16.07
124	124 – SWIVEL PIPE (3/4" MPT)	$99.61
125	125 – PLUNGER SPRING	$12.89
126	126 – RETAINER PLUNGER	$16.97
127	127 – RUBBER BOLT BUSHING	$16.97
129	129 – NUT	$6.27
130	130 – RETAINER LATCH	$77.16
132	132 – LEVER	$76.01
136	136 – TAPPET	$140.46
137	137 – TAPPET SEAT	$300.97
138	138 – LOCKWASHER	$21.16
141	141 – FRONT CHEST	$204.79
143	143 – BARE FRONTHEAD	$1,073.13
144	144 – BUSHING (1-1/8" x 6")	$179.89
145	145 – BUSHING (1-1/4" x 6")	$179.89
146	146 – FRONTHEAD w/ 1-1/8" BUSHING	$1,158.70
147	147 – FRONTHEAD w/ 1-1/4" BUSHING	$1,158.70
148	148 – FRONTHEAD COMPLETE 1-1/8"	$1,166.54
149	149 – FRONTHEAD COMPLETE 1-1/4"	$1,166.54
151	151 – "O" RING	$3.30
160	160 – RUBBER GRIP	$9.17
239	239 – BACKHEAD BOLT ONLY	$42.55
323	323 – SWIVEL PIPE (3/4" MPT)	$99.61
566	566 – "O" RING	$2.49
619	619 – RETAINER BOLT	$48.80
697	697 – SIDE ROD BOLT	$43.46
1743	1743 – CYLINDER PLUG	$17.59
6180	6180 – BACKHEAD DOUBLE "O" RING	$36.68
6187	6187 – BACKHEAD (125 PB)	$622.10
7647	7647 – "O" RING	$6.27
8968	8968 – 1/2" OIL PLUG	$23.20
3373	Swivel Nut W/ “O” Ring	Reference only
6810	6810 – THROTTLE VALVE (STEEL) w/ "O" RINGS	$69.16
18578	18578 – CYLINDER	$1,084.66
