American Pneumatic APT 180 Paving Breaker Compatible Replacement Parts

Browse Texas Pneumatic Tools-manufactured compatible replacement parts for American Pneumatic Model APT 180. These parts are not genuine American Pneumatic OEM parts. Use the cited Texas Pneumatic compatibility schematic and numbered positions to confirm fitment.

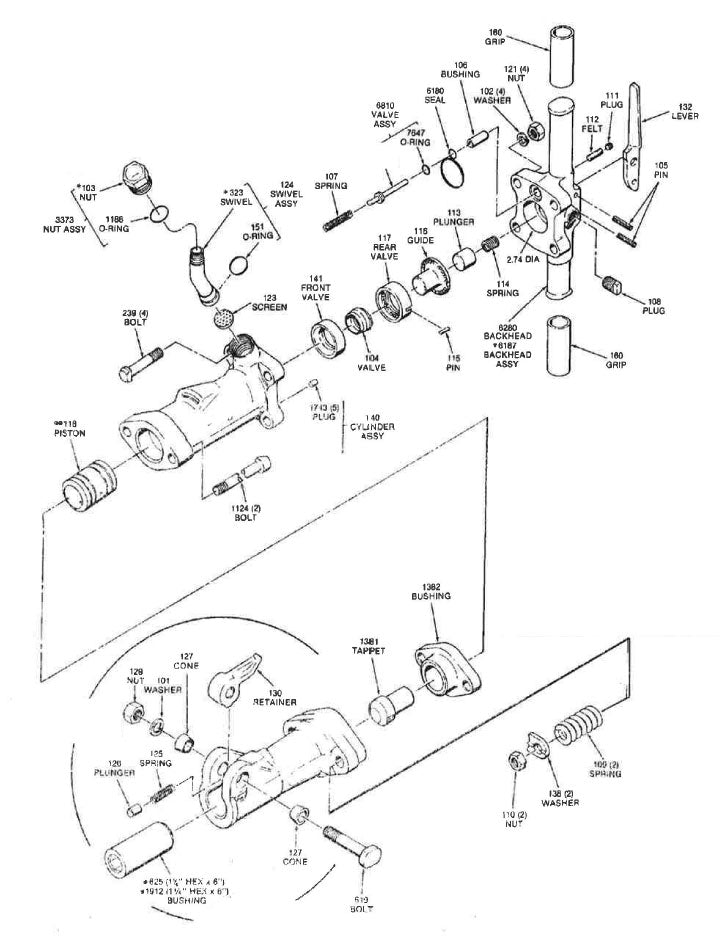

APT 180 Parts Diagram

Texas Pneumatic Tools compatibility schematic for American Pneumatic APT 180. Use the numbered positions to identify a TPT-manufactured compatible replacement part. These are not genuine American Pneumatic OEM parts.

Texas Pneumatic Tools compatibility schematic for American Pneumatic APT 180

Repair Parts

Part # Description Price
101 LOCKWASHER $2.28
102 LOCKWASHER $3.01
103 SWIVEL NUT WITH "O" RING $57.10
104 AUTO VALVE $126.68
105 LEVER PIN $5.16
106 STEM BUSHING $55.92
107 THROTTLE SPRING $8.15
108 1/2" OIL PLUG $23.20
109 FRONTHEAD SPRING $54.15
110 NUT $15.10
111 FELT PLUG $4.26
112 OILER FELT $5.16
113 BACKHEAD PLUNGER $39.26
114 PLUNGER SPRING $31.33
115 PIN $9.32
116 VALVE GUIDE $186.12
117 REAR CHEST $200.54
118 PISTON $225.04
121 NUT $3.69
123 SCREEN $16.07
124 SWIVEL PIPE (3/4" MPT) $99.61
125 PLUNGER SPRING $12.89
126 RETAINER PLUNGER $16.97
127 RUBBER BOLT BUSHING $16.97
129 NUT $6.27
130 RETAINER LATCH $77.16
132 LEVER $76.01
138 LOCKWASHER $21.16
140 CYLINDER $1,084.66
141 FRONT CHEST $204.79
151 "O" RING $3.30
160 RUBBER GRIP $9.17
239 BACKHEAD BOLT ONLY $42.55
323 SWIVEL PIPE (3/4" MPT) $99.61
619 RETAINER BOLT $48.80
625 BUSHING (1-1/8" x 6") $126.68
1124 FRONTHEAD BOLT ONLY $43.46
1188 "O" RING $4.26
1381 TAPPET $164.74
1382 TAPPET SEAT $296.63
1743 CYLINDER PLUG $17.59
1912 BUSHING (1-1/4" x 6") $126.68
6180 BACKHEAD DOUBLE "O" RING $36.68
6187 BACKHEAD (125 PB) $622.10
6280 BACKHEAD $306.42
7647 "O" RING $6.27
3373 Swivel Nut W/ “O” Ring Reference only
6810 THROTTLE VALVE (STEEL) w/ "O" RINGS $69.16
